SiUS331604E Servicing Items to be Confirmed
Service Diagnosis 120
(5) Precautions for operating in servicing mode (field setting):
When a test operation is interrupted or after exiting service mode, please wait for at least one minute before entering
service mode again. In case of continuous execution, the outdoor unit PCB may sometimes display an error code. If any
error codes are displayed, press the RETURN button (BS3). If performing the above operation still does not eliminate
the error, reconnect the unit to the power supply.

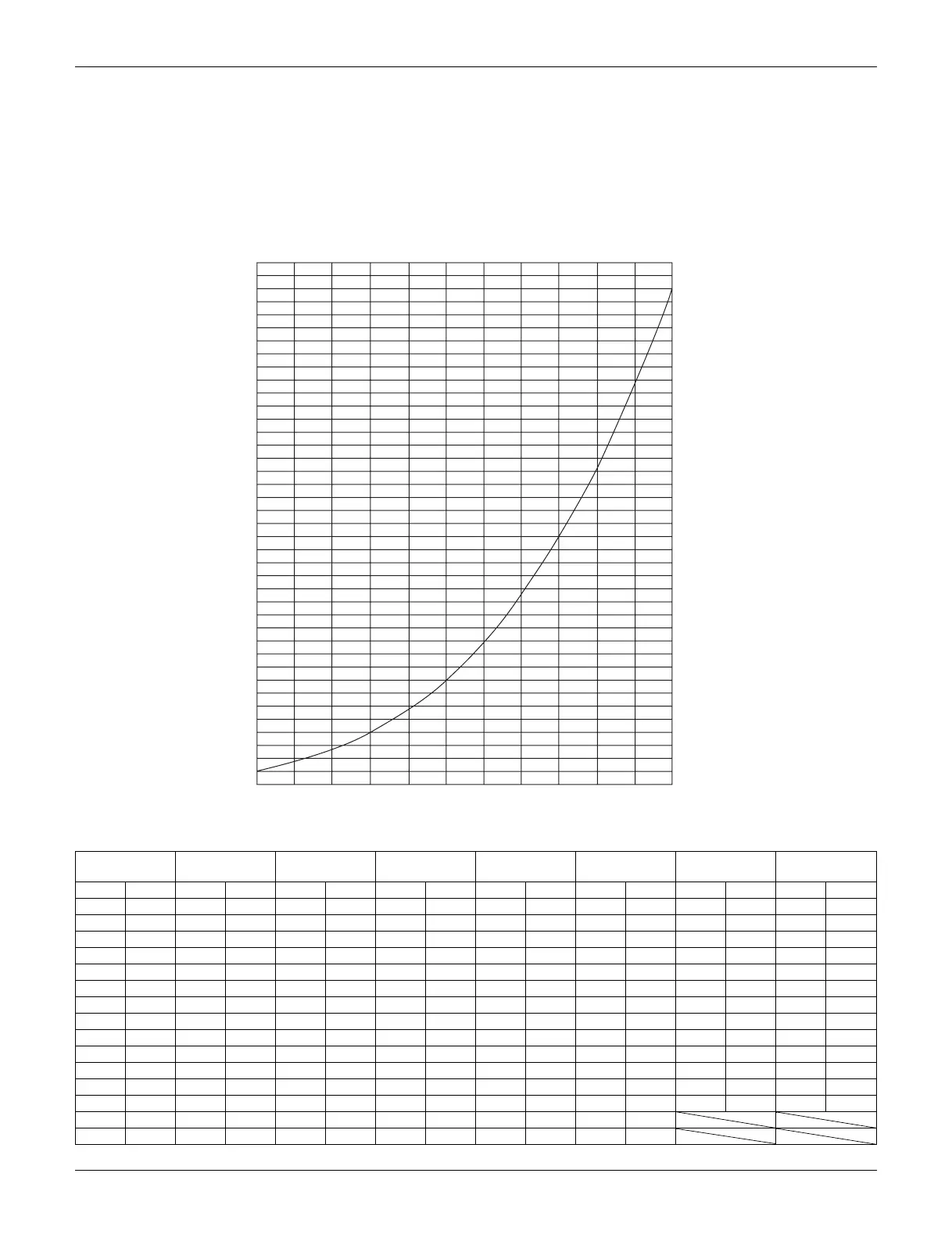

1.3 Refrigerant Properties (R-410A)
Temperature
Absolute
Pressure
Temperature
Absolute
Pressure
Temperature
Absolute
Pressure
Temperature
Absolute
Pressure
°C °F MPa psi °C °F MPa psi °C °F MPa psi °C °F MPa psi
–50 –58 0.11 16.0 –20 –4 0.40 58.0 10 50.0 1.09 158 40 104.0 2.42 351
–48 –54.4 0.12 17.4 –18 –0.4 0.43 62.4 12 53.6 1.15 167 42 107.6 2.54 368
–46 –50.8 0.13 18.9 –16 3.2 0.46 66.7 14 57.2 1.22 177 44 111.2 2.67 387
–44 –47.2 0.15 21.8 –14 6.8 0.50 72.5 16 60.8 1.29 187 46 114.8 2.80 406
–42 –43.6 0.16 23.2 –12 10.4 0.54 78.3 18 64.4 1.37 199 48 118.4 2.93 425
–40 –40 0.18 26.1 –10 14 0.57 82.7 20 68.0 1.45 210 50 122.0 3.07 445
–38 –36.4 0.19 27.6 –8 17.6 0.61 88.5 22 71.6 1.53 222 52 125.6 3.21 466
–36 –32.8 0.21 30.5 –6 21.2 0.66 95.7 24 75.2 1.61 234 54 129.2 3.36 487
–34 –29.2 0.23 33.4 –4 24.8 0.70 102 26 78.8 1.70 247 56 132.8 3.51 509
–32 –25.6 0.25 36.3 –2 28.4 0.75 109 28 82.4 1.79 260 58 136.4 3.64 528
–30 –22 0.27 39.2 0 32 0.80 116 30 86.0 1.89 274 60 140.0 3.83 555
–28 –18.4 0.29 42.1 2 35.6 0.85 123 32 89.6 1.99 289 62 143.6 4.00 580
–26 –14.8 0.32 46.4 4 39.2 0.91 132 34 93.2 2.09 303 64 147.2 4.17 605
–24 –11.2 0.34 49.3 6 42.8 0.96 139 36 96.8 2.20 319
–22 –7.6 0.37 53.7 8 46.4 1.02 148 38 100.4 2.31 335
4.0
3.8
3.6
3.4
3.2
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
3.9
3.7
3.5
3.3
3.1
2.9
2.7
2.5
2.3
2.1
1.9
1.7
1.5
1.3
1.1
0.9
0.7
0.5
0.3
0.1
–0.1
0–10–20–30–40–50 10 20 30 40 50 60
3214–4–22–40–58 50 68 86 104 122 140
Temperature
Absolute pressure
Pressure
g
au
g
e value
MPapsi psi GMPa G
˚C
˚F
580
551
522
493
464
435
406
377
348
319
290
261
232
203
174
145
116
87
58
29
0
566
537
508
479
450
421
392
363
334
305
276
247
218
189
160
131
102
73
44
15
–15

Daikin VRV IV-S RXTQ-TAVJU Series Specifications

General

Type	Heat Pump
Series	VRV IV-S
Model	RXTQ-TAVJU
Refrigerant	R-410A
Indoor Unit Type	Ceiling Cassette, Wall Mounted
Dimensions (Indoor Unit)	Varies by model
Dimensions (Outdoor Unit)	Varies by model
Operating Temperature Range (Cooling)	-5°C to 46°C
Power Supply	208-230V, 60Hz
Maximum Height Difference	50m
