DAITEM DP8000 - Installation Code

D8551
23
GB
Opening
● With a flat screwdriver, unclip the cover
tabs and remove the cover of the receiver.
● Stick the bottom part of the guarantee
label on the guarantee request supplied
with the user guide of the system (the
upper part of the label must remain on the
product).
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
50744540001
0
7/9
5
D8553
50744540001
D8553
50744540001
07/95
50744540001

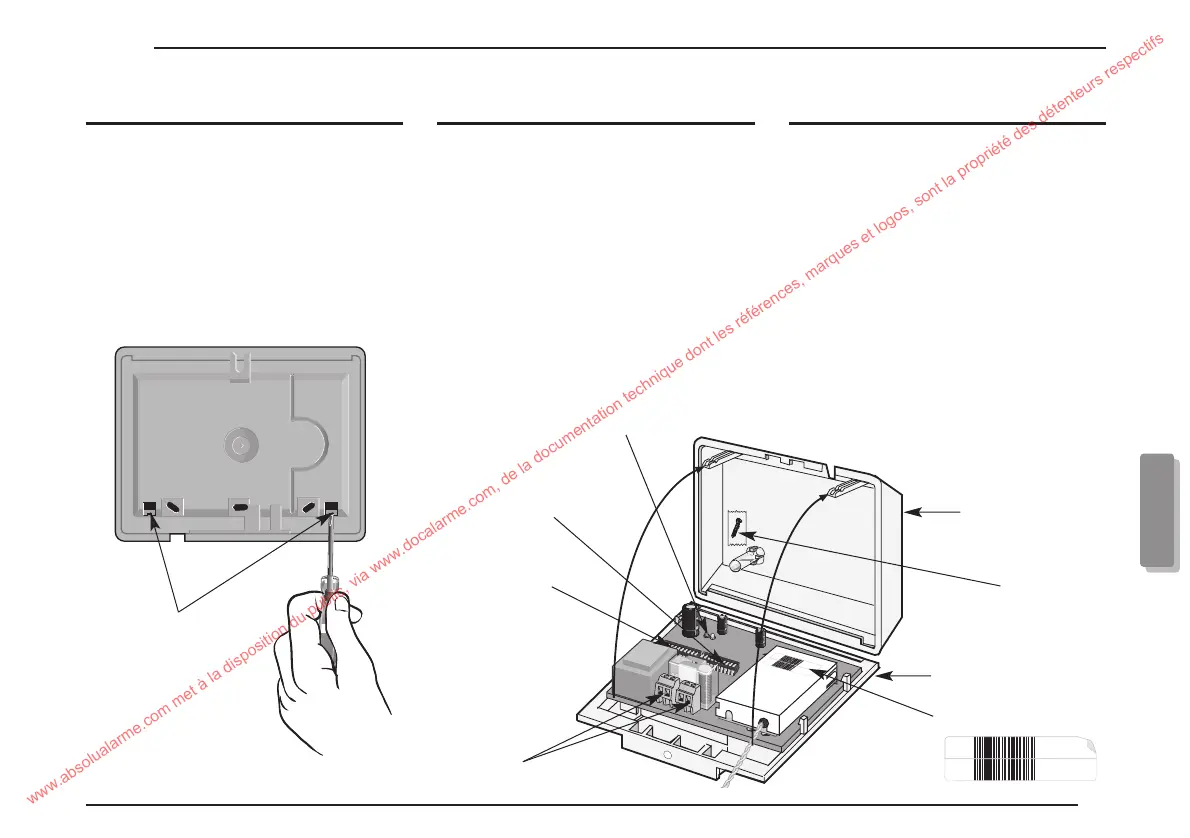

Cover tabs
LEDs signalling
the state of the relay
Green: at rest
Red: at work
Installation code
switch bank
Modes of operation
switch bank
Connection
terminals
Lid
Lid screw
Base
Guarantee label
Installation code
Reproduce the installation code using the
ten micro-switches of the installation code
switch bank.
Attention: it may be necessary to choose a
different installation code from the one of
the security system (for example when a
remote control activates and deactivates
an automatic device).
Modes of operation
The tables shown on the pages that follow
indicate the different modes of operation
of the receiver by interpreting the function
of the channels it receives.
Select a mode using the ten micro-switch-
es of the operating mode switch bank.
