Daitsu PORTABLE Series - Heat Discharge Pipe Installation

Installation and Disassembly of Heat Discharge Pipe

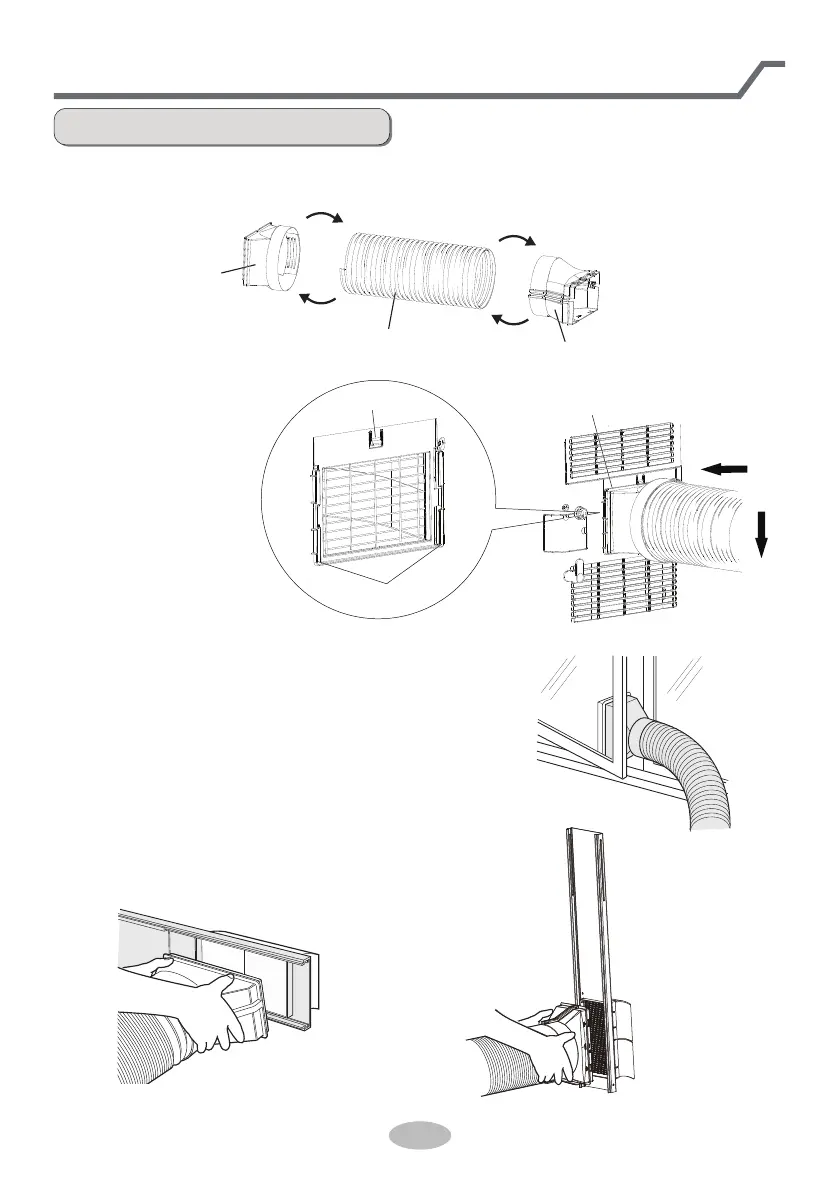

Install heat discharge pipe
1. Rotate joint A and joint B clockwise into the two ends of heat discharge pipe.
clockwise
clockwise
joint A
joint B+C
heat discharge pipe
2. Insert joint A of heat
discharge pipe (the
side with "TOP" is
upwards) into the
groove until you
hear a sound.
3. Lead the exhaust hose outdoors.
groove
clasp
the side with "TOP" is upwards
30
adapter. (Optional)
4. Slide and open the exhaust cover on the
window panel, and attach the window
