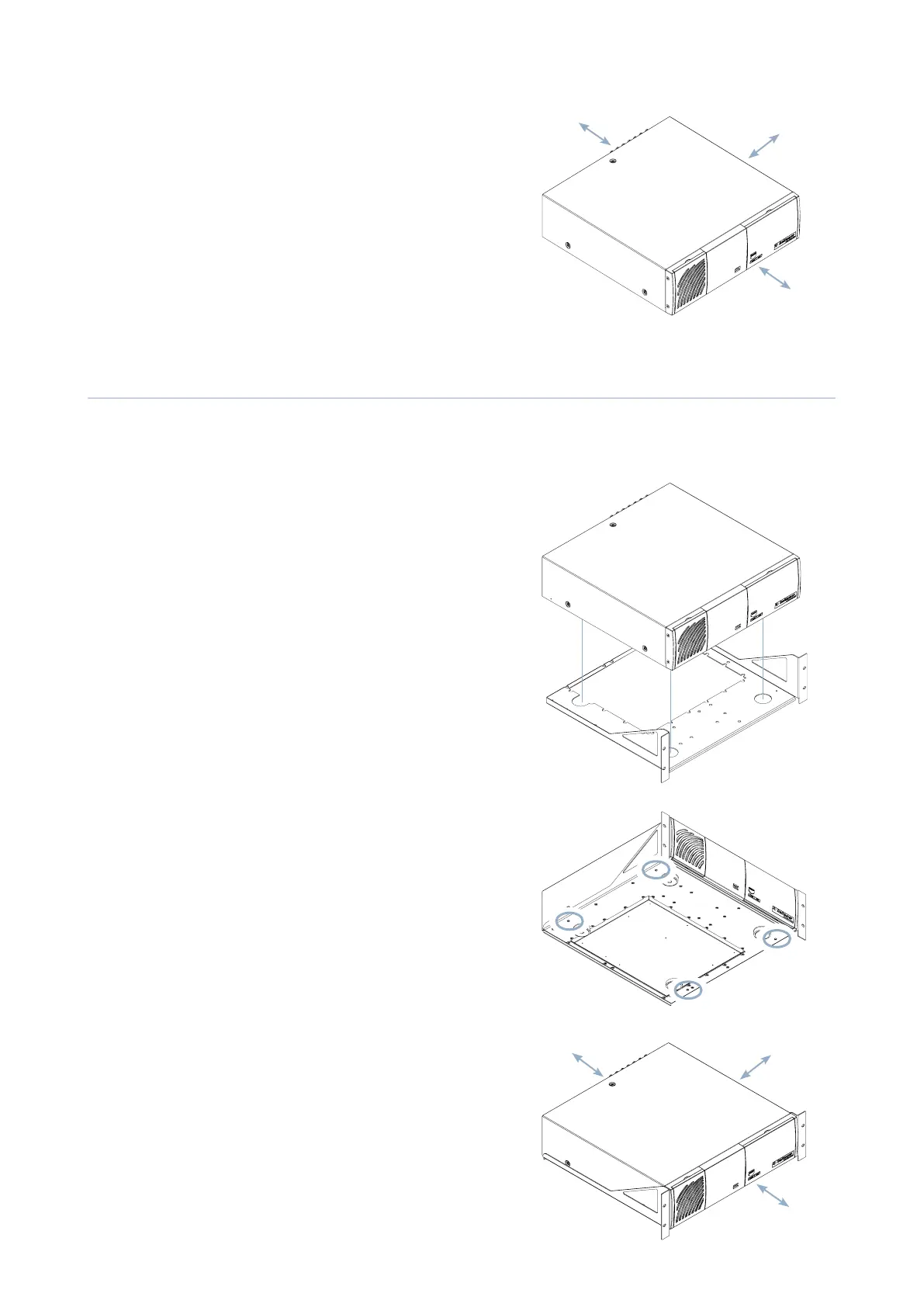

Operation in 19" rack
► Exclusively use the 19" holder provided by Dallmeier.
► Insert the device into the 19" holder.
► Use the housing feet as guidance.
Mounting
► Use the 4 screws delivered with the 19" holder.
► Mount the housing in the 19" holder with the 4 screws.
► Ensure that the ventilation slots are not covered.
► Mount the device into the 19" rack.
► Observe the instructions of the rack manufacturer.
► Ensure 4 " (10 cm) of free space at the front, rear and
right side.
► Connect the device as described on the following pages.
► Commission the device as described on the following
pages.
Stand-alone operation
► Ensure a stable and horizontal surface.
► Ensure 10 cm of free space at the front, rear and right side.
► Connect the recorder as described on the following pages.
► Commission the recorder as described on the following
pages.
