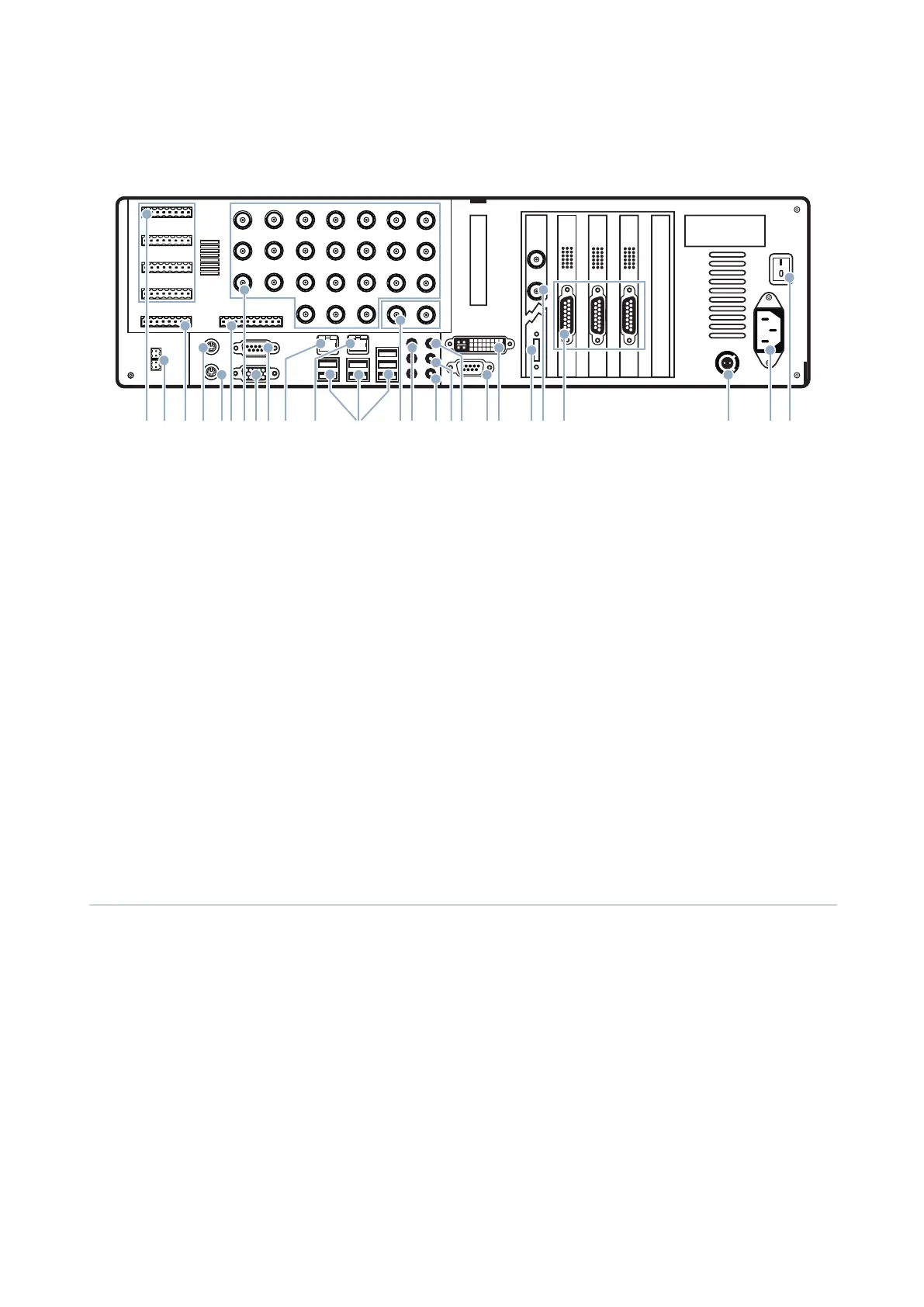

Connections
The number of the connections can differ depending on the ordered equipment or device variant. The following description
refers to a device with full equipment and optional connectors.
DMS 2400
8 www.dallmeier.com
Technical data
Dimensions W × H × D Approx. 16.7" × 4.8" × 17.6" (without feet) / 16.7" × 5.1" × 17.6" (with feet)
Voltage supply 115 / 230 V AC + / – 10 %, 50 / 60 Hz
Power consumption Max. 145 W (operation without encoder board for analogue channels)
Max. 170 W (operation with 3 encoder boards for 24 analogue channels in total)
Heat power Max. 580 BTU/h
Ambient temperature + 5°C up to +40°C (41°F − 104°F), +20°C up to +25°C (68°F − 77°F) recommended
Humidity 5 – 70 % RH, not condensing
Atmospheric load Dust-free
Weight Approx. 26 lbs (12 kg) with 2 HDDs
A Contact IN Cameras (1-6/7-12/13-18/19-24)
4× Weidmüller, 8 pins, only for switch / push button (dry contact)
M CVBS Interface
2× BNC, 75 Ohm, 1 V
pp
, same signal as T2 (not active without T2)
B Serial Interface COM 3
2× Weidmüller 2 pins, 1× RS485 Full Duplex (optional)
N 3,5 mm Phone Jack
3×, not active
C Contact IN global (1-6)
Weidmüller, 8 pins, only for switch / push button (dry contact)
O Microphone IN
3,5 mm phone jack, red, 4,3 kOhm, 2,828 V
pp
D Mouse
PS/2, green
P Audio OUT
3,5 mm phone jack, green, 1 kOhm, 2,828 V
pp
E Keyboard
PS/2, violet
Q AUX / Line IN
3,5 mm phone jack, blue, 16 kOhm, 2,828 V
pp
F Relais OUT (1-5)
Weidmüller, 10 pins, max. 12 V DC / 24 V AC / 0.5 A, 150 mOhm
R Serial Interface COM 2
D-SUB, 9 pins, 1× RS232
G Video IN (1-16)
BNC, 75 Ohm, 1 V
pp
, with loop-through, CVBS (optional)
S Video OUT DVI
Dual Link (24 + 5), DVI-D, 1920 × 1080 (not suitable for VGA adapter)
H Video OUT
Mini-D-SUB, 15-pole, 1920 × 1080
T1 SATA Interface
SATA OUT (optional, for DAS-4 Eco)
I Serial Interface COM 1
D-SUB, 9 pins, 1× RS232
T2 CVBS Interface
2× BNC, 75 Ohm, 1 V
pp
(optional, for analogue monitors)
J Ethernet Interface 2
RJ45, 10/100/1000 Mbps (optional)
U Audio IN for analogue cameras (1-8/9-16)
D-SUB, 15-pole, 1 kOhm, 2,828 V
pp
(for D-SUB/Cinch adapter cable)
K Ethernet Interface 1
RJ45, 10/100/1000 Mbps
V 12 V DC OUT
ODU socket, 2-pole, 12 V DC (for DAS-4 Eco)
L USB Interface
7× USB 2.0, type A
W Mains Connection
IEC C14 socket, 115/230 V AC ±10%, 50/60 Hz
X Mains Switch
A B C D E F G H I J K L M N O P Q R S T1 T2 U V W X
