12

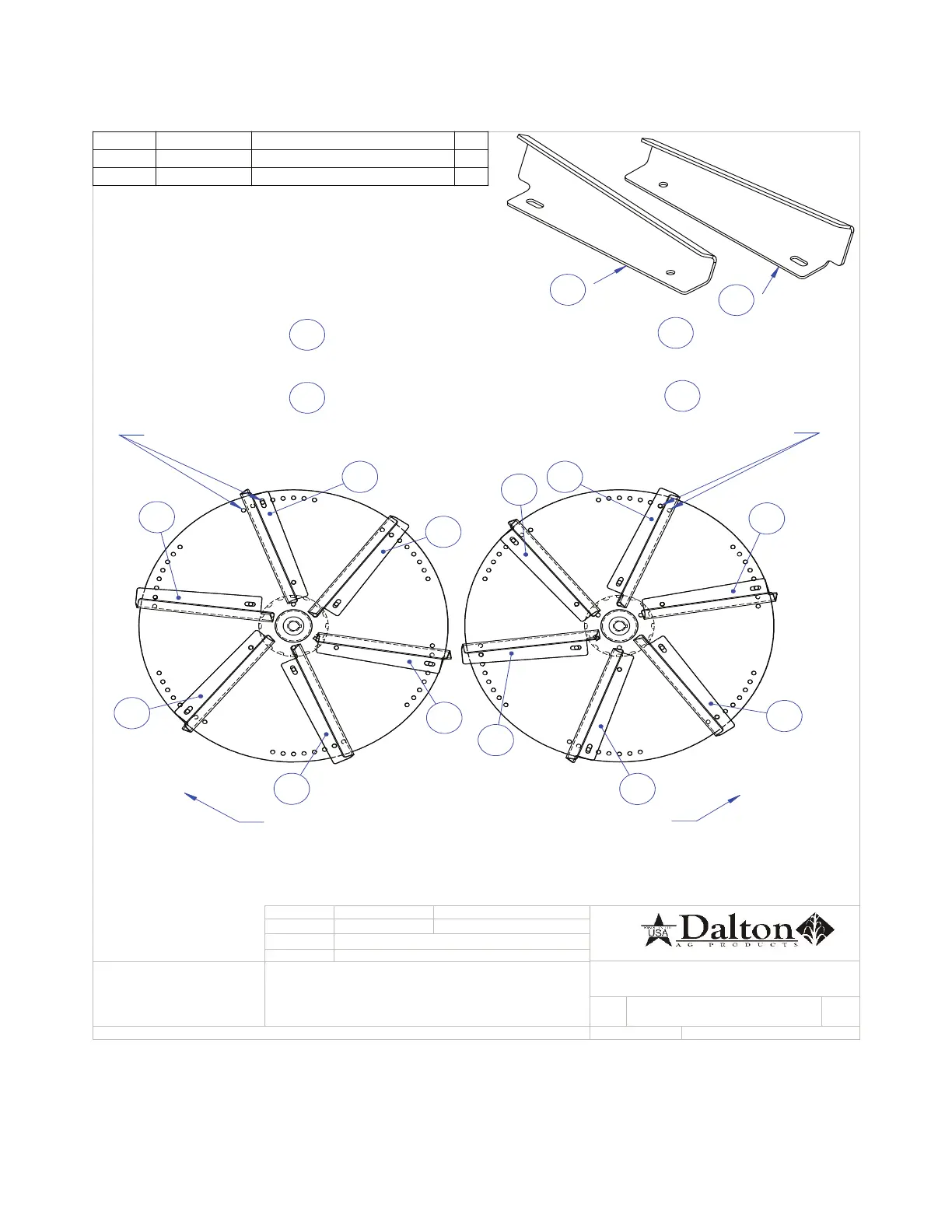

60’ SPREAD SETUP
SPREAD SET UP, WIDE SPREAD
F O R P A R T S , C A L L 1 . 8 0 0 . 3 4 2 . 7 4 9 8
w w w . D a l t o n A g . c o m
CHECKED BY
SHEET 2 OF 2
3/12/2021
3/16/2021
60' SPREAD
SCALE: 1:6
60' SPREAD
A
PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
DRAWN BY
CONFIG.
PRINT DATE
COMMENTS:
DWG:
SIZE
A
SHEET TITLE:
REV
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
DALTON AG. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF DALTON AG IS
--
2
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 4431277 SPINNER BLADE, 11 INCH, LH 6
2 4431277 SPINNER BLADE, 11 INCH, RH 6
ROTATION
ROTATION
2
1
VIEWED FROM BACK OF SPREADER
2
1
2
1
2
1
2
1
2
1
BLADES LABELLED SET TO 2ND
HOLE FROM LEFT SIDE OF PATTERN,
VIEWED FROM THE CENTER OF THE DISC.
BLADES LABELLED
2
VIEWED FROM THE CENTER OF THE DISC.
HOLE FROM LEFT SIDE OF PATTERN,
SET TO 3RD
1
BLADES LABELLED
2
SET TO 2ND
HOLE FROMRIGHT SIDE OF PATTERN,
VIEWED FROMTHE CENTER OF THE DISC.
BLADES LABELLED
1
SET TO 3RD
HOLE FROMRIGHT SIDE OF PATTERN,
VIEWED FROMTHE CENTER OF THE DISC.
1
