Dalton MOBILITY 800 - 90 Spread Setup

13

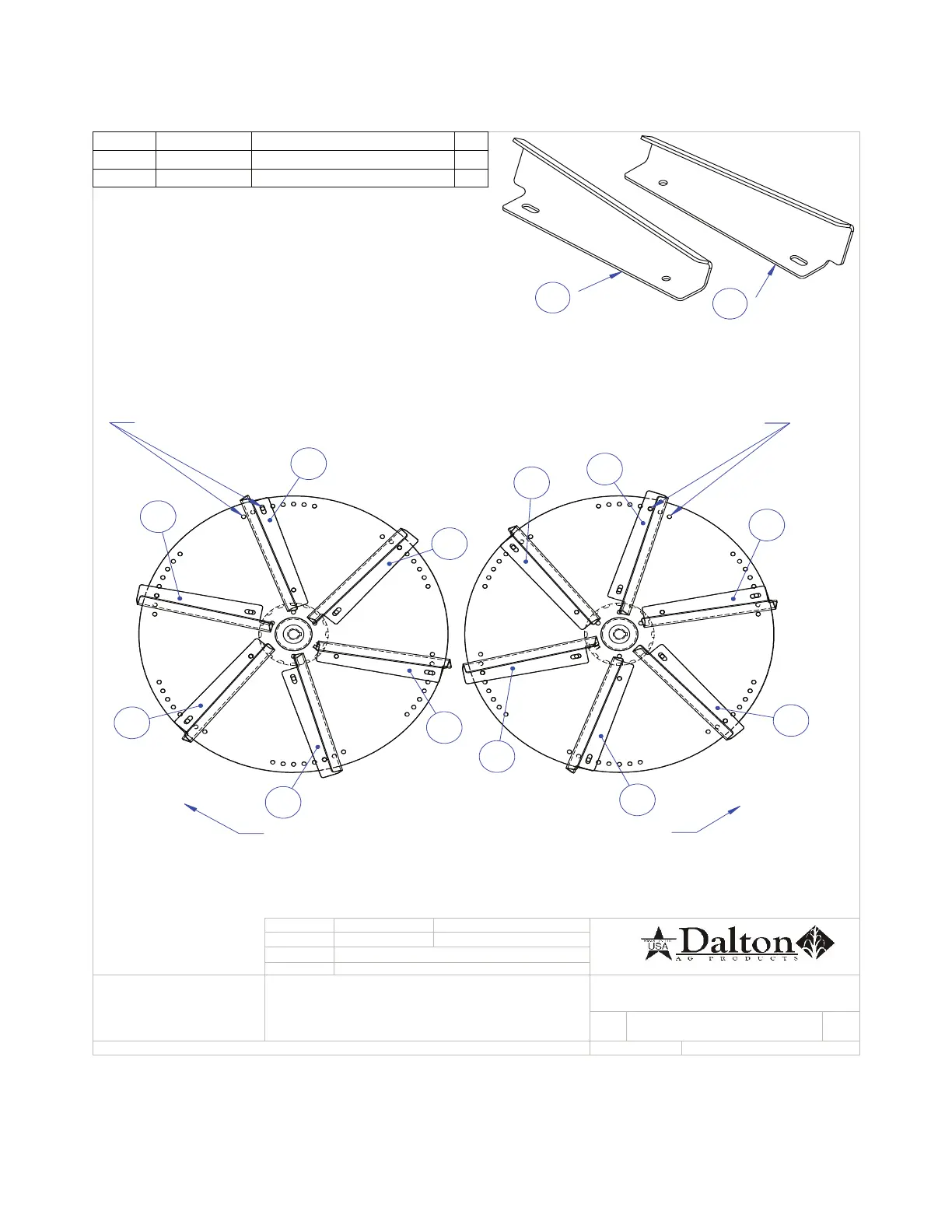

90’ SPREAD SETUP
SHEET 1 OF 2
SPREAD SET UP, WIDE SPREAD
F O R P A R T S , C A L L 1 . 8 0 0 . 3 4 2 . 7 4 9 8
w w w . D a l t o n A g . c o m
3/12/2021
3/16/2021
90' SPREAD
SCALE: 1:6
REV
CHECKED BY
90' SPREAD
A
PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
DRAWN BY
CONFIG.
PRINT DATE
COMMENTS:
DWG:
SIZE
A
SHEET TITLE:
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
DALTON AG. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF DALTON AG IS
--
1
ALL BLADES SET TO 3RD HOLE FROM
2
1
VIEWED FROM BACK OF SPREADER
2
1
2
1
2
1
2
1
LEFT SIDE OF PATTERN, VIEWED FROM
THE CENTER OF THE DISC
2
ALL BLADES SET TO 3RD HOLE FROM
RIGHT SIDE OF PATTERN, VIEWED FROM
THE CENTER OF THE DISC
ROTATION
ROTATION
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 4431277 SPINNER BLADE, 11 INCH, LH 6
2 4431277 SPINNER BLADE, 11 INCH, RH 6
1
2
