Dalton MOBILITY 800 - Hydraulic Spinner Gear Box

30

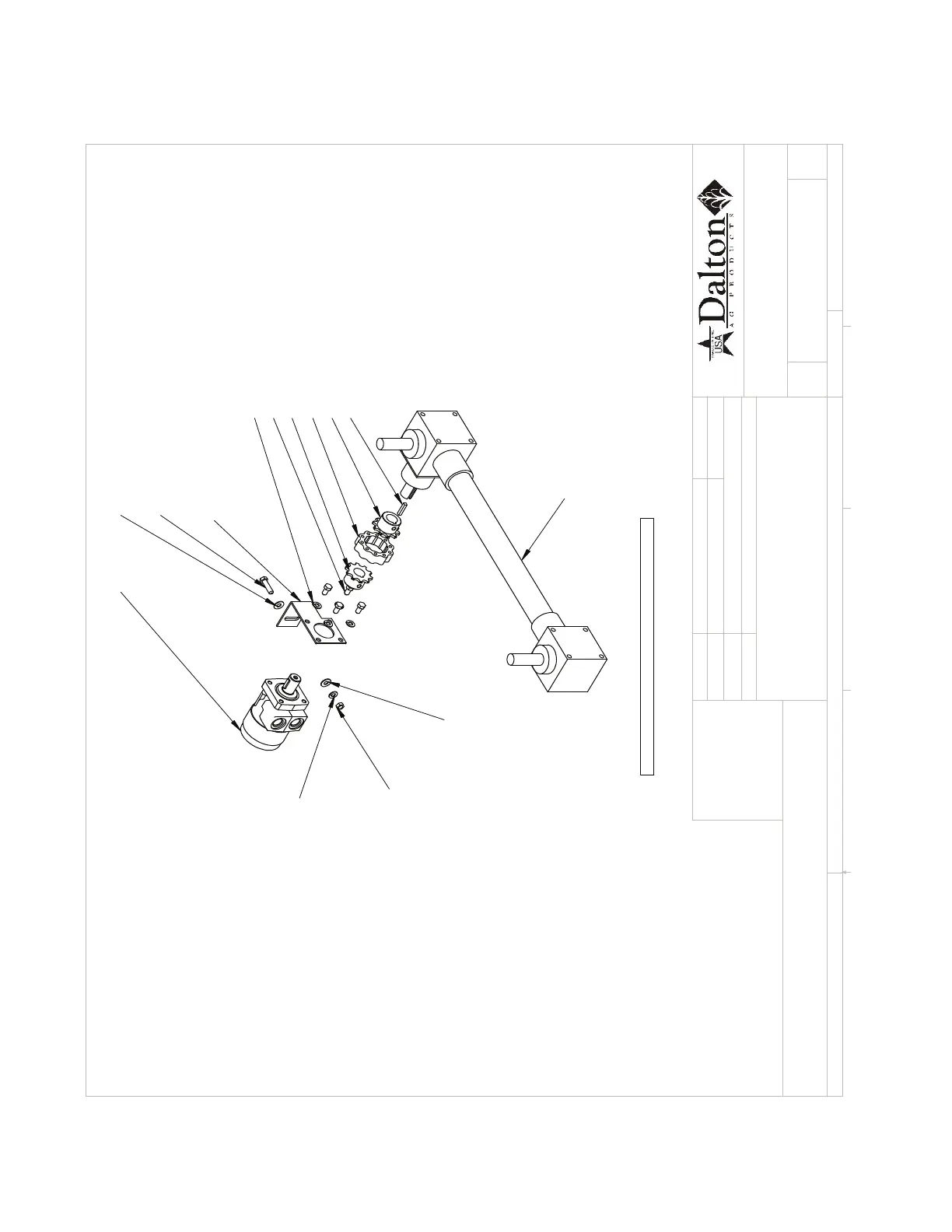

HYDRAULIC SPINNER GEAR BOX
ROW CROP HYD. SPINNERS, WIDE SPREAD
SHEET 1 OF 1
11/12/2020
11/17/2020
C:\_EPDM_Vault\Spreader\MOBILITY\MS Documents\MS MANUALS\90 FOOT SPREADER MANUAL\
Default
SCALE: 1:12
REV
SHEET TITLE:
A
SIZE
DWG:
COMMENTS:
PRINT DATE
CONFIG.
DRAWN BY
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF DALTON AG. ANY REPRODUCTION IN
PROPRIETARY AND CONFIDENTIAL
PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF DALTON AG IS PROHIBITED.
5
4
32
1
602 E. VAN BUREN ST., LENOX, IA 50851
Sheet1
CHECKED BY
ROW CROP HYD. SPINNERS, WIDE SPREAD
David Buchanan
ROW CROP HYD. SPINNERS, WIDE SPREAD
SHEET 1 OF 1
11/12/2020
11/17/2020
C:\_EPDM_Vault\Spreader\MOBILITY\MS Documents\MS MANUALS\90 FOOT SPREADER MANUAL\
Default
SCALE: 1:12
REV
SHEET TITLE:
A
SIZE
DWG:
COMMENTS:
PRINT DATE
CONFIG.
DRAWN BY
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF DALTON AG. ANY REPRODUCTION IN
PROPRIETARY AND CONFIDENTIAL
PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF DALTON AG IS PROHIBITED.
5
4
32
1
602 E. VAN BUREN ST., LENOX, IA 50851
Sheet1
CHECKED BY
ROW CROP HYD. SPINNERS, WIDE SPREAD
David Buchanan
UNLESS OTHERWISE SPECIFIED
TOLERANCES TO BE:
ANGLES : ± 1.0°
FRACTIONS <6" : ±1/32, >6" :1/16
X.X : ± 0.06
X.XX : ± 0.03
X.XXX : ± 0.005
150212 FLAT WASHER, .375 PLTD
4441174 GEAR BOX SET, 26.375 CENTERLINE
641653 KEY, .25 X .25 X 1.25 1008463 COUPLING, HALF, 1 BR 1008464 COUPLING, CHAIN, #60 1008463 COUPLING, HALF, 1 BR 151834 BOLT .375 X .75 NC, SS
150005 NUT, .375 NC, PLTD
4441175 SPINNER MOTOR, PARKER, 340 TLBS OF TORQUE AT 8 GPM
150248 LOCK WASHER, .375, SS
150212 FLAT WASHER, .375 PLTD
4432823 MOTOR MOUNT, HIGH TORQUE MOTOR
151806 BOLT, .375 x 1.5 NC, G5, PLTD
150248 LOCK WASHER, .375, SS
ROW CROP HYD. SPINNERS, WIDE SPREAD
