2.5. PTZ (PAN, TILT AND ZOOM) CAMERA

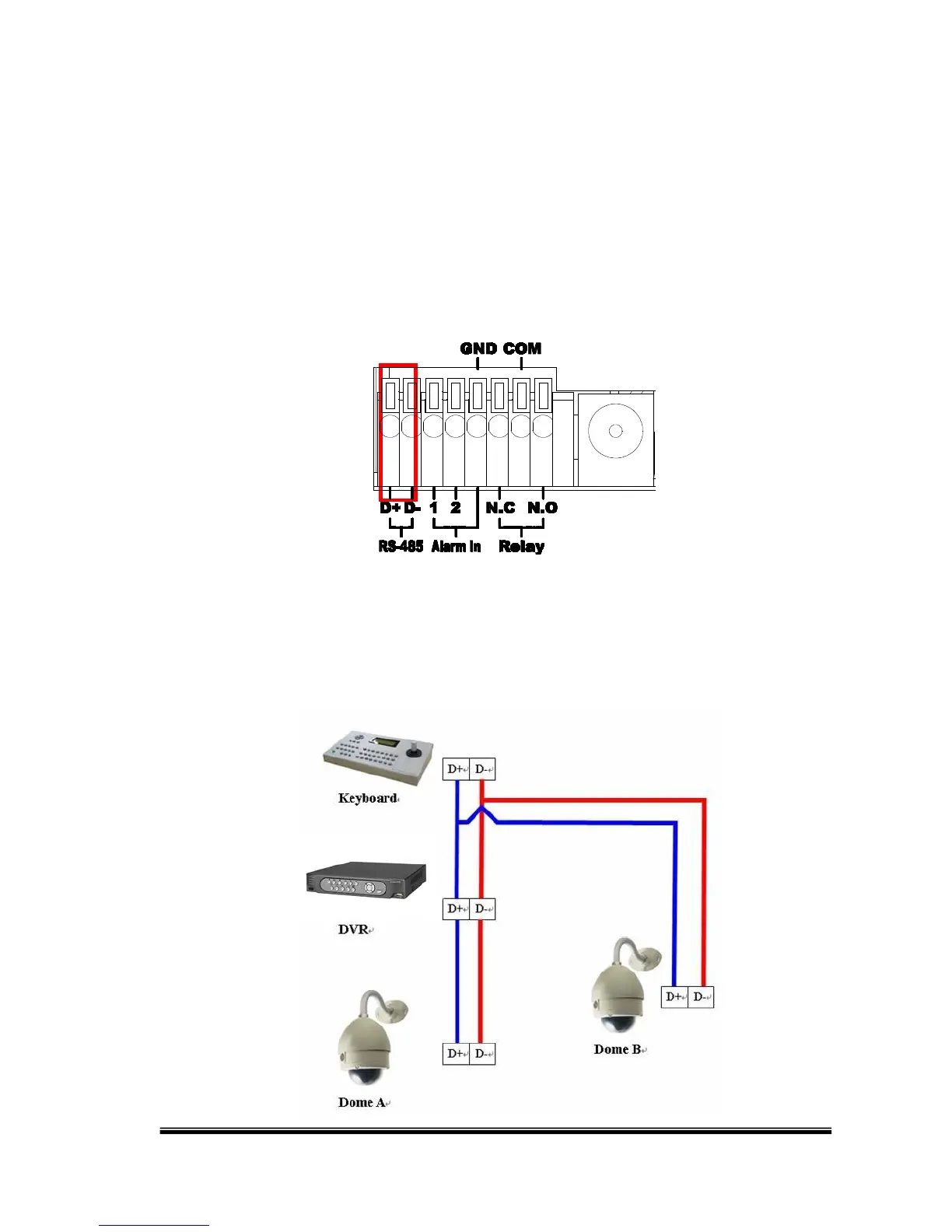

The following diagram shows the connection between the NVR and a PTZ camera &
joystick controller. To control the PTZ camera via DVR please check the CAMERA ID,
BANDRATE (default at 9600 bps) and the RS-485 cable.
Under “Two Core” connection, the controller can control the speed dome without any
built-in protocol into the NVR. Moreover, one keyboard can be connected to a of MAX
256 units.
