10 BACK PANEL CONNECTORS
The connector back panel of the
master section has all the
in/outputs to interface with external
equipment and a PC.
SPARE 1 - 4
We have integrated 4 openings,
which fit spare XLR connectors for
"do it yourself" purposes. An
activity extremely loved by in-
house technicians.
Below these spare openings are
the power on/off switch, a power
inlet and the ground connector of
the console to be used as central
star ground point for the studio.
The other two sections are
described on the next page.
==================================================
The mains input is set for 230 volt 50/60 Hz.
The Airlab can be set to 115 volt only by qualified technicians
==================================================

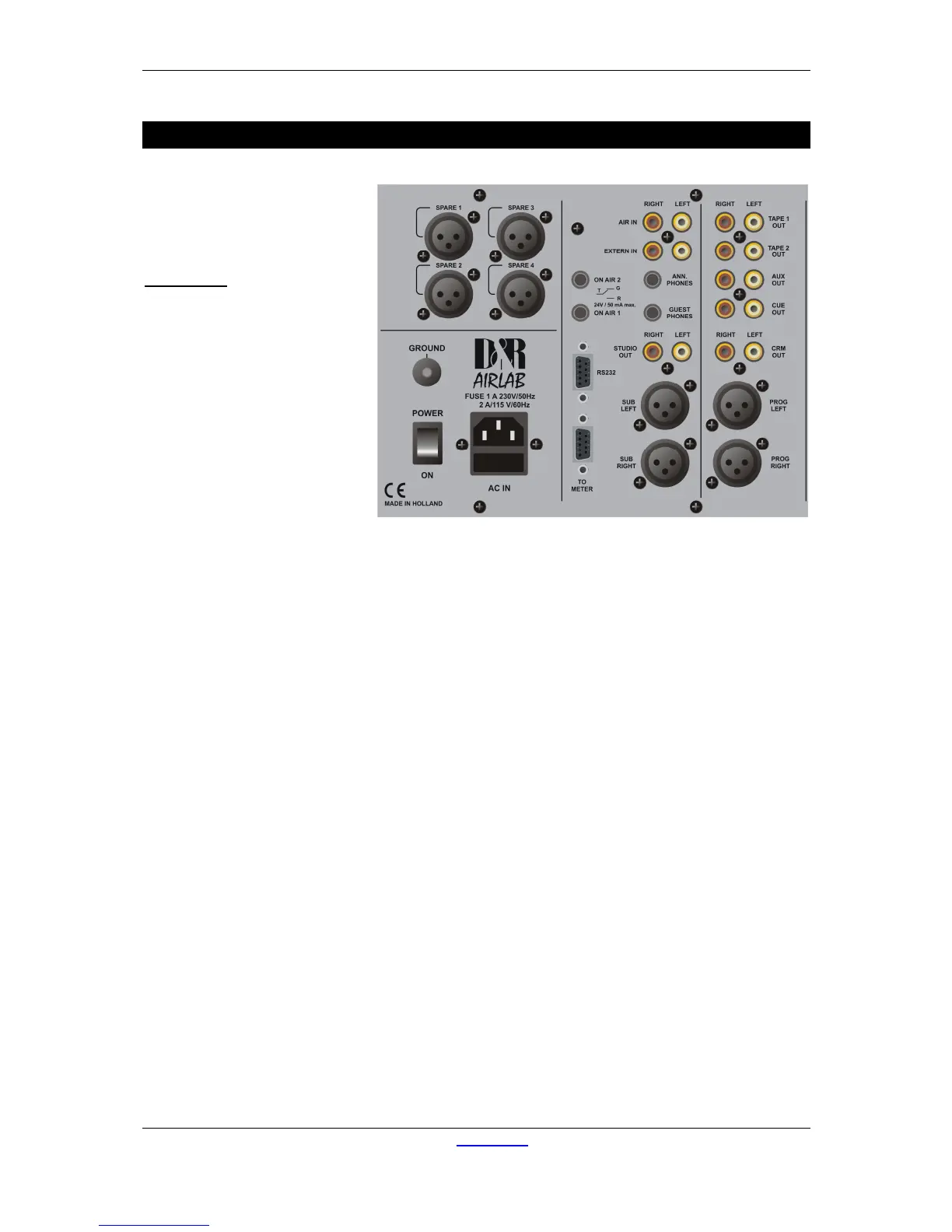

Figure 3: The connections on the Master Section
