Airlab Jumper Settings
Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 39
12 AIRLAB JUMPER SETTINGS
12.1 TRIPLE INPUT MODULE

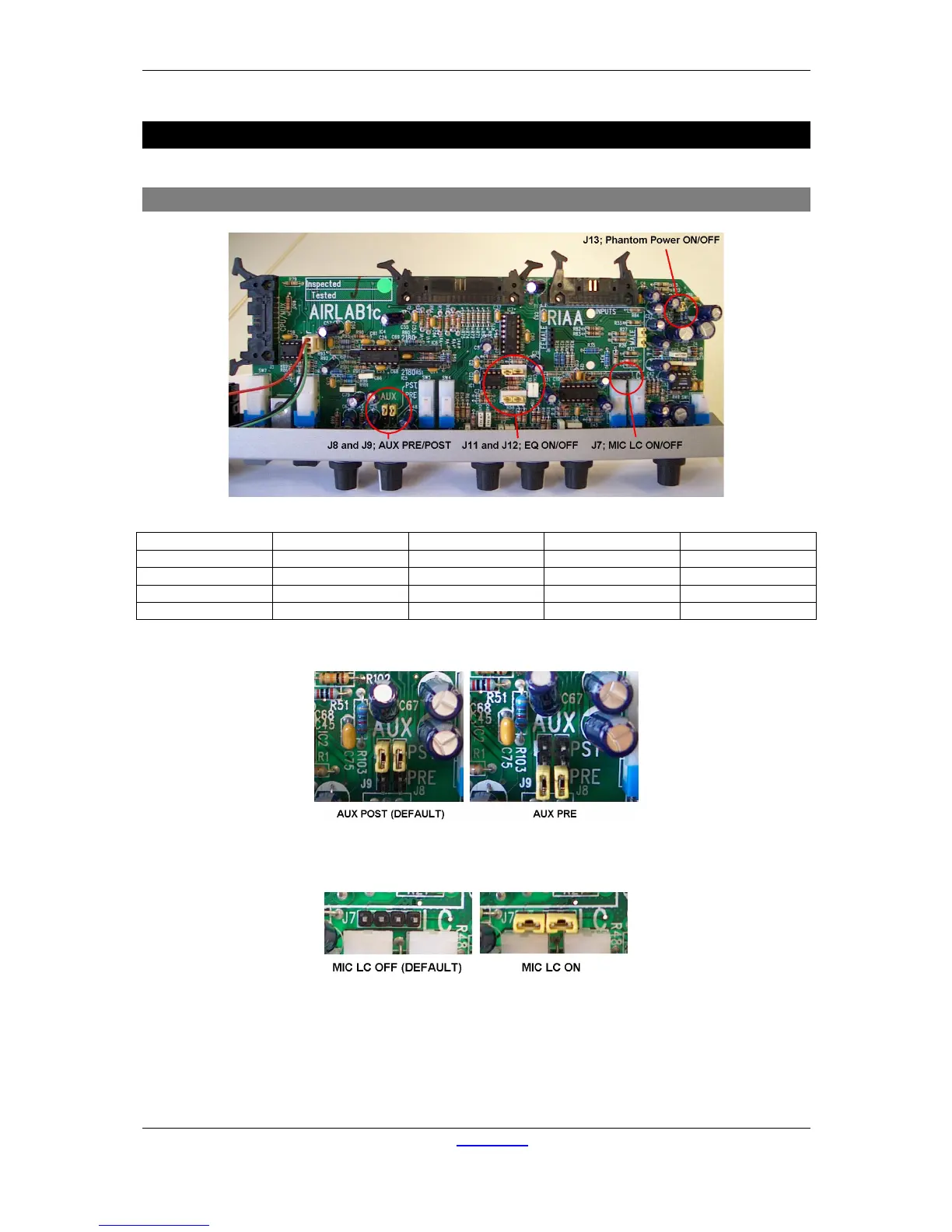

Figure 4: Airlab Triple Module Jumper Locations
Options Jumpers Settings Settings Default
AUX PRE/POST J8 and J9 1 + 2 = POST 3 + 4 = PRE POST
LC MIC only J7 1+2 / 3+4 = ON No Jumper = OFF OFF
48 volt Phantom J13 1 + 2 = OFF 3 + 4 = ON OFF
EQ ON/OFF J11 en J12 1+2 / 3+4 = ON 2+3 / 4+5 = OFF ON
Table 1: Airlab Triple Module Jumper settings
Figure 5: Triple Module AUX Jumper settings
Figure 6: Triple Module MIC LC Jumpersettings
