Airlab Jumper Settings
Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 40

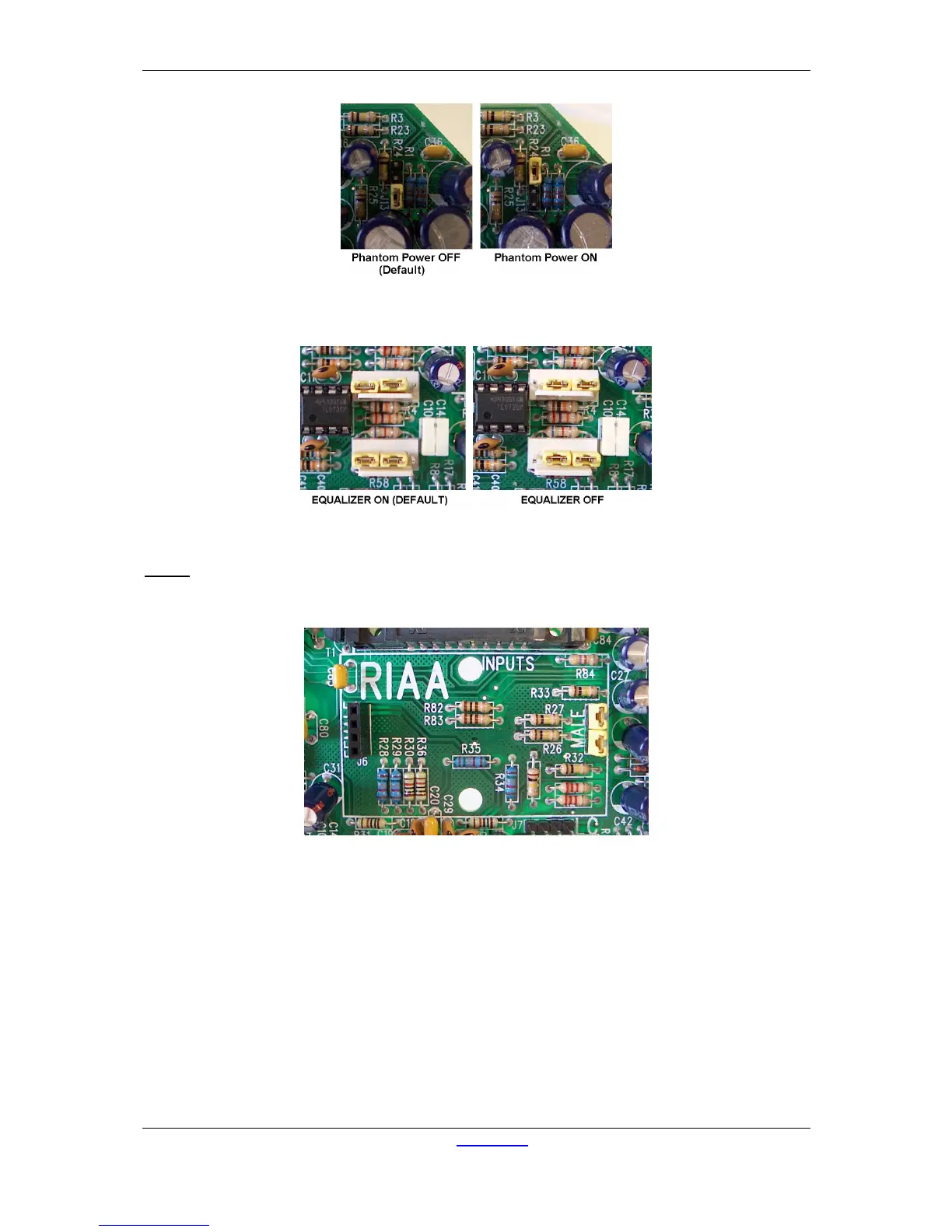

Figure 7: Triple Module Phantom Power Jumper settings
Figure 8: Triple Module EQ Jumper settings
NOTE:
An optional R.I.A.A. phono pre amp can be plugged in here. The 'B' input of the channel
can thus be connected directly to a phono cartridge. Jumpers should be removed from the
channel completely.
Figure 9: R.I.A.A connection on Triple module
