Airlab Jumper Settings
Airlab from D&R Phone +31 294 418014, email: info@d-r.nl Page 43
12.3 TELCO MODULE

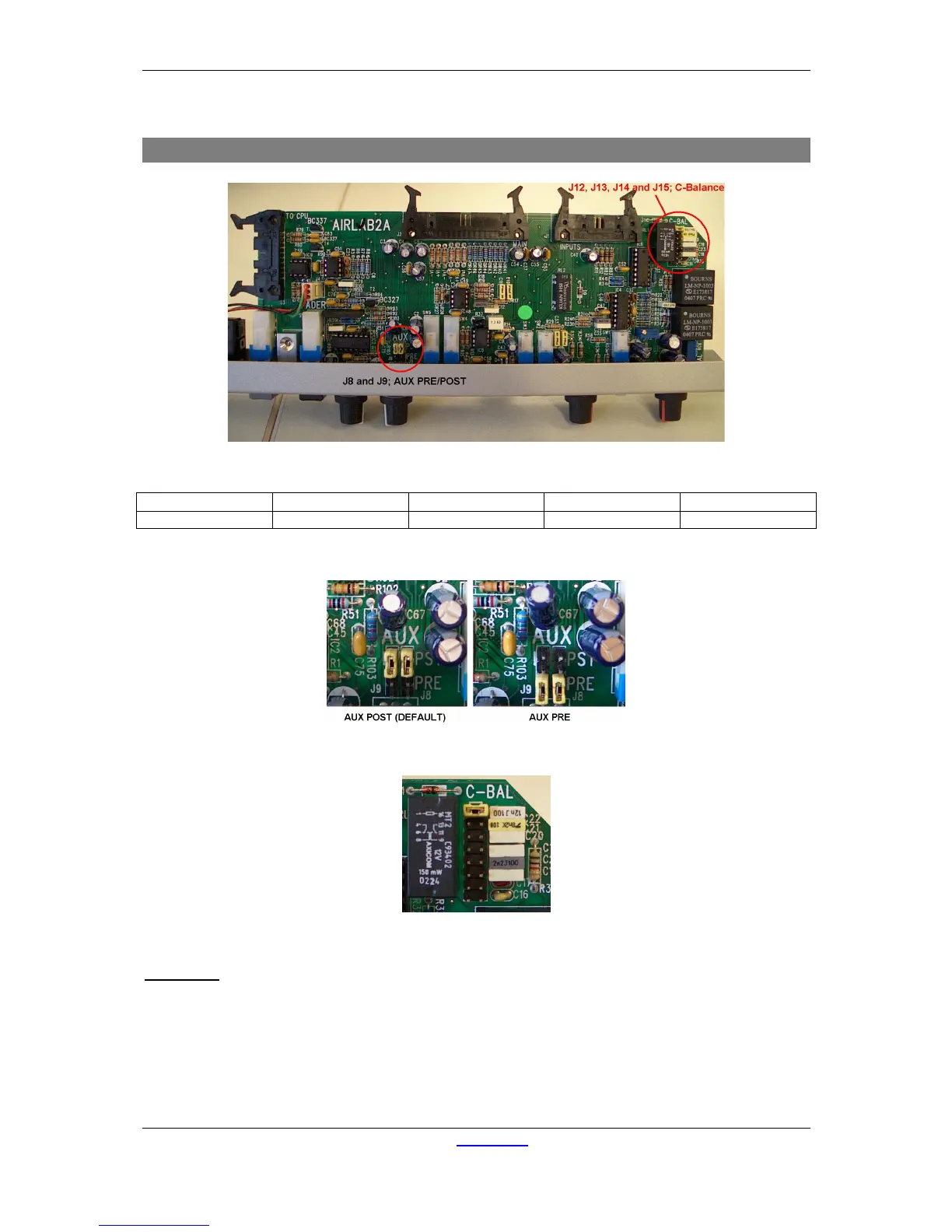

Figure 16: Airlab Telco Module Jumper Locations
Options Jumpers Settings Settings Default
AUX PRE/POST J8 and J9 1 + 2 = POST 3 + 4 = PRE POST
Table 3: Airlab Telco Module Jumper settings
Figure 17: Telco Module AUX Jumper settings
Figure 18: Telco Module C-Balance Setting
OPTIONAL
It's optional to install High quality transformers on the PROGRAM outputs and on the SUB outputs. Please
contact your dealer for further information.
