Danelec DM700 ECDIS - Page 9

User manual for DM700 ECDIS hardware
Copyright Danelec Marine A/S
MAN11804-10 Page 9/30
The DM700 ECDIS and DM800 ECDIS G2 can be combined in a cluster. It will not be possible to
have redundant network connections if DM800 ECDIS G2 and DM700 ECDIS are used together

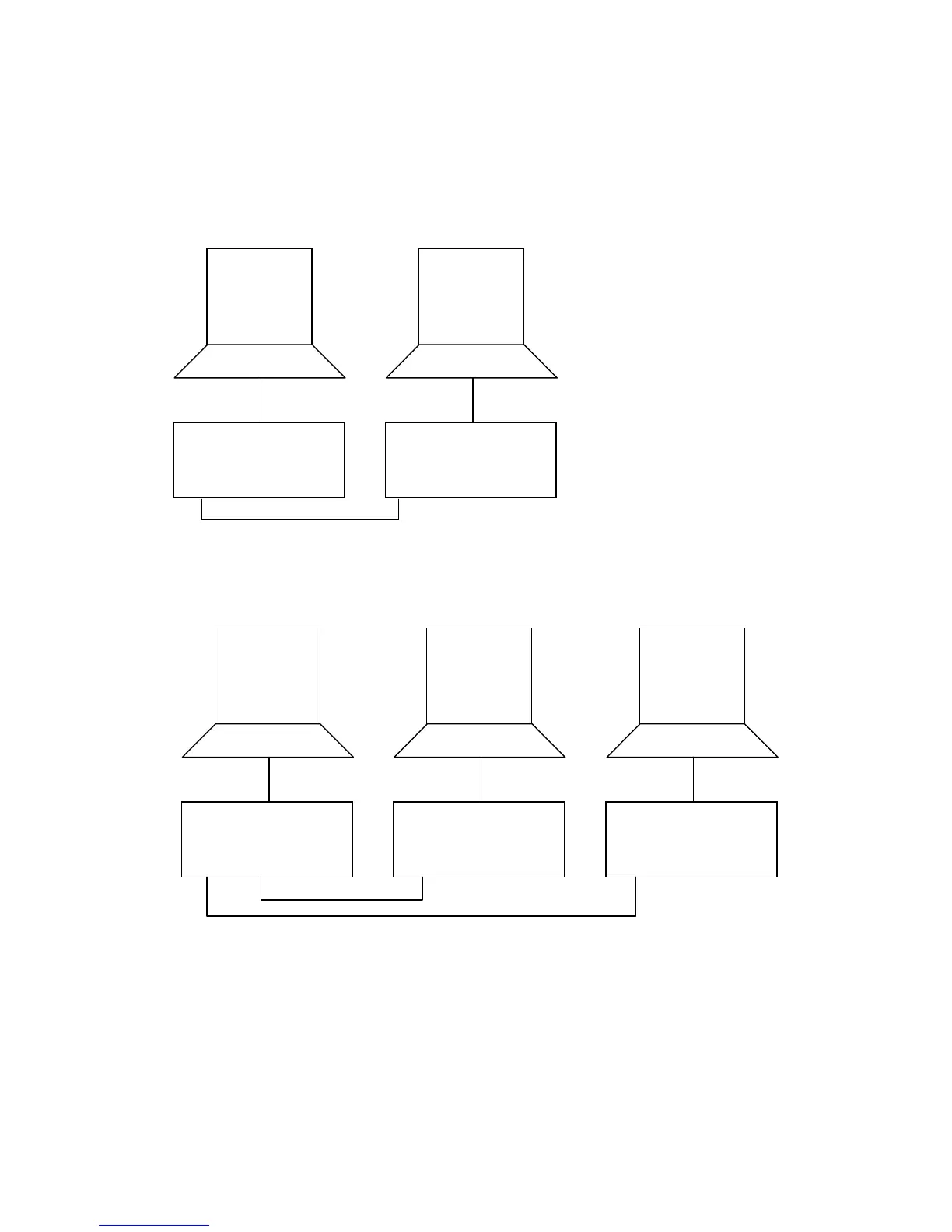

Cluster containing 1 x DM700 ECDIS and 1 x DM800 ECDIS G2
Cluster containing 2 x DM700 ECDIS and 1 x DM800 ECDIS G2
Port1 Port2
LAN 1
DM700
ECDIS
(Backup)
DM800
ECDIS G2
(Master)
Port 1 Port2
LAN 1
LAN 1
DM700
ECDIS
(Backup)
DM700
ECDIS
(Planning)
DM800
ECDIS G2
(Master)
