Danfoss 20 Series - Disassembly and Assembly Sectional View; Axial Piston Variable Displacement Pump

Service Manual and
Axial Piston Pumps Series 20
Repair Instructions
L1003506 • Rev BA • Jun 201416
Disassembly and Assembly

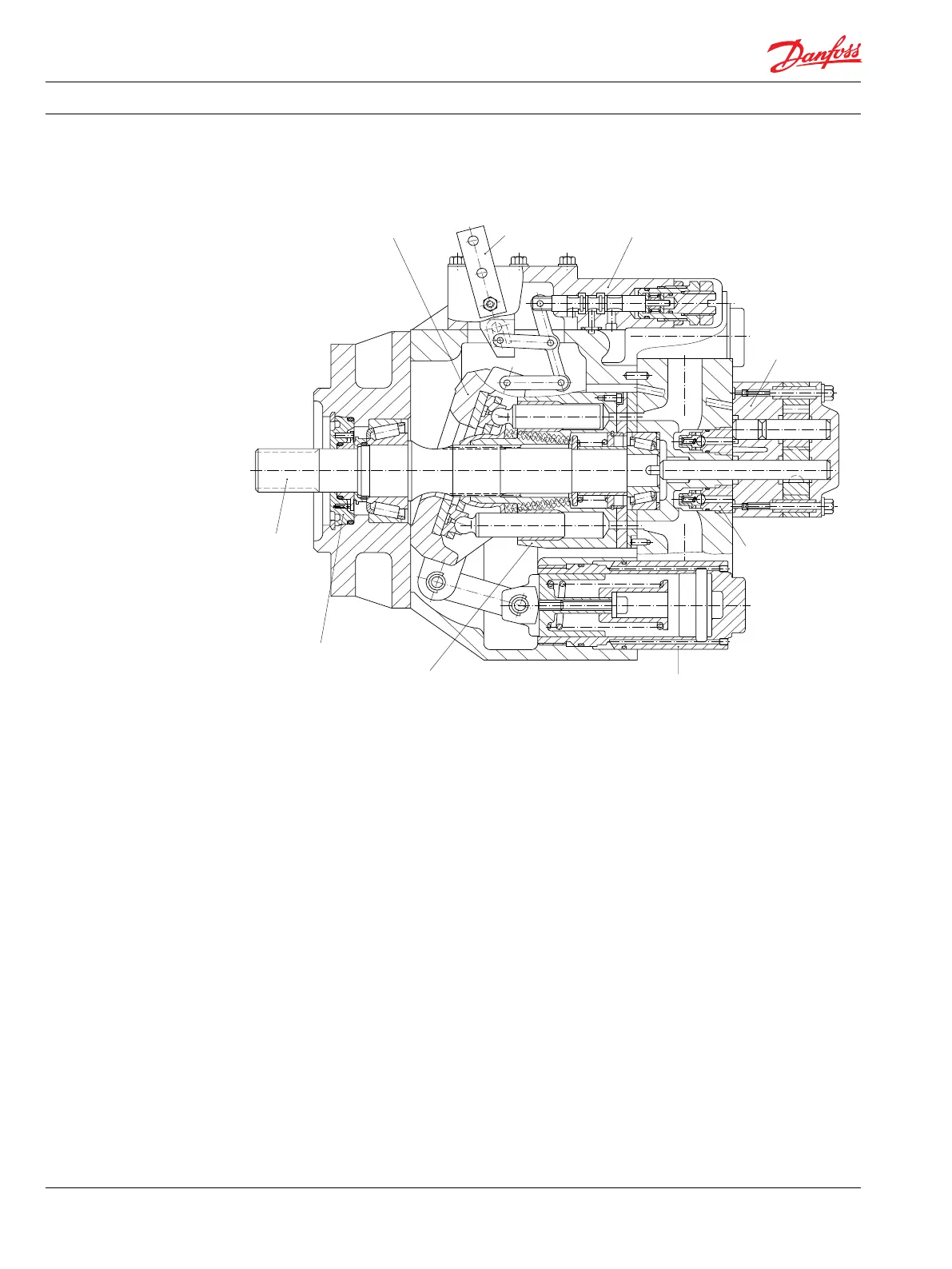

Sectional View
Input shaft
Swash plate Control handle Servo valve (control valve)
Charge pump
Charge check valve
Servo cylinder
Cylinder block assembly
Shaft seal
P005 121E
Axial piston variable displacement pump
