Service Manual and
Axial Piston Pumps Series 20
Repair Instructions
L1003506 • Rev BA • Jun 201418
Ø10 Pin
[Ø0.394]
[2.756]
5x45°
20
[0.787]
10
[0.394]
ca. 5 mm Chamfer
[ca. 0.2 in]
Ø130
[Ø5.118]
165
[6.496]
250
[9.843]
[9.843]
The areas of repair indicated may be serviced, following the procedures in this manual, without
invalidating the warranty.

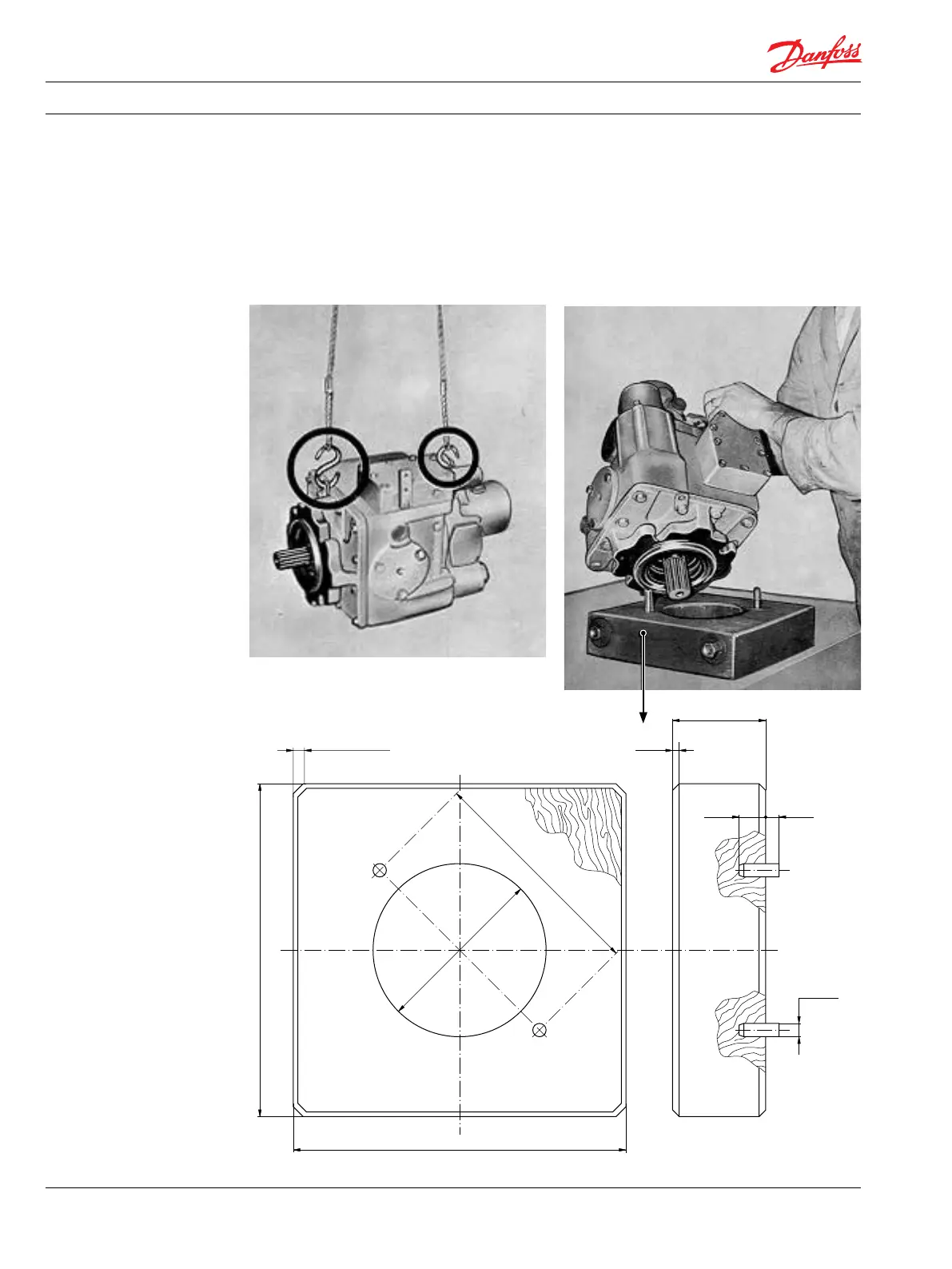

Preparation for assembly
When using a lifting device, the hooks at the end of the slings, are to be fastened in the rings fitted at
the front and rear of the motor body. It is recommended that an mounting block should be used in
order to facilitate a profes sional operation.
Mounting block
Disassembly and Assembly
F000 084
Minor repairs
F000 085
