Service Manual and
Axial Piston Pumps Series 20
Repair Instructions
L1003506 • Rev BA • Jun 20146
Trouble Shooting, Gauge
Installation and Information
Recommended Tools and
Installation

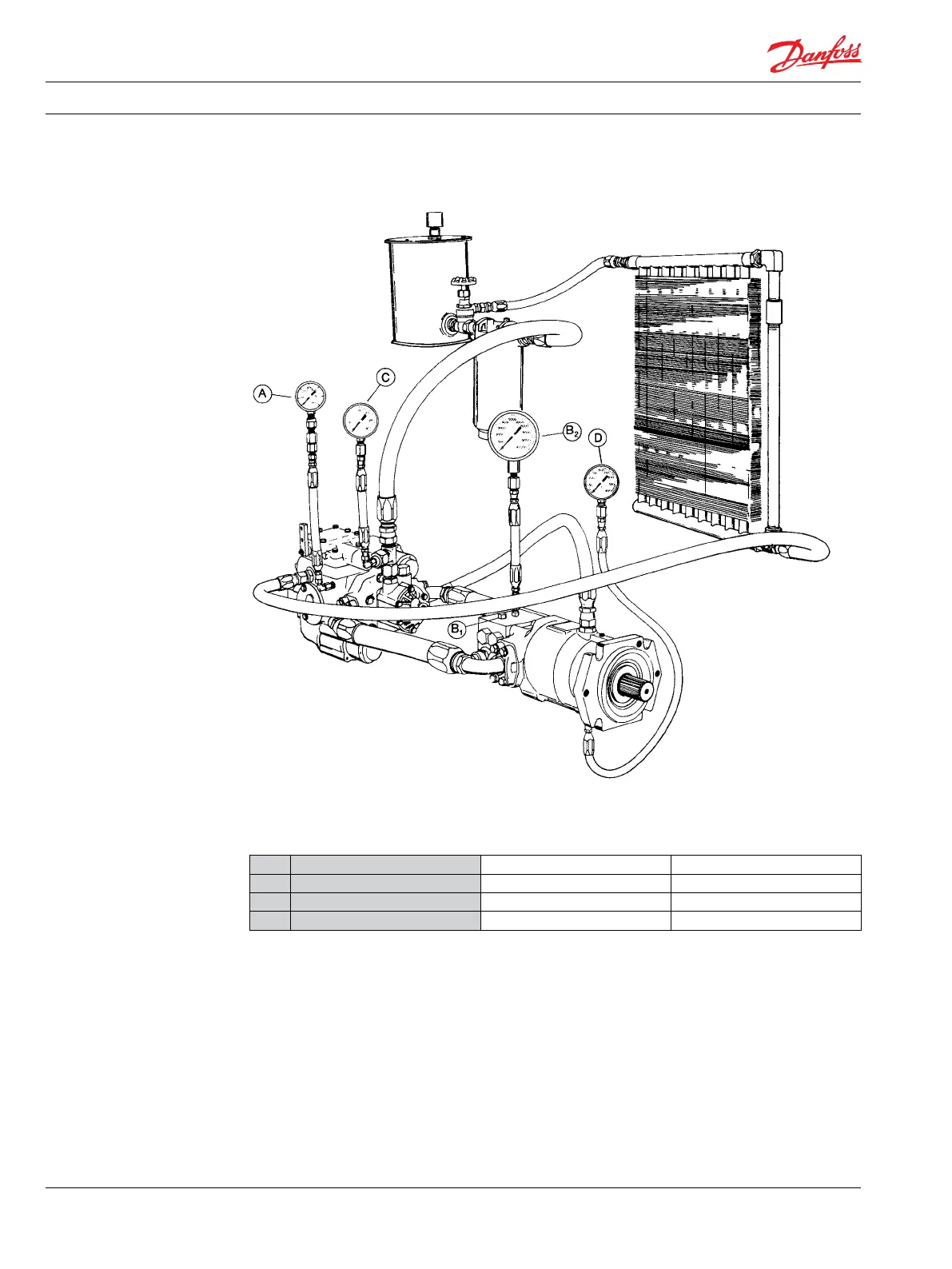

Gauge Information
A Charge Pressure 60 bar [870 psi] - Gauge 7/16 - 20 UNF O-ring Fitting
B System pressure 600 bar [8700 psi] - Gauge 7/16 - 20 UNF O-ring Fitting
C Inlet Vacuum Vacuum gauge Tree Into Inlet Line
D Case pressure 8 bar [116 psi] - Gauge Adapt to Bottom Drain Port
