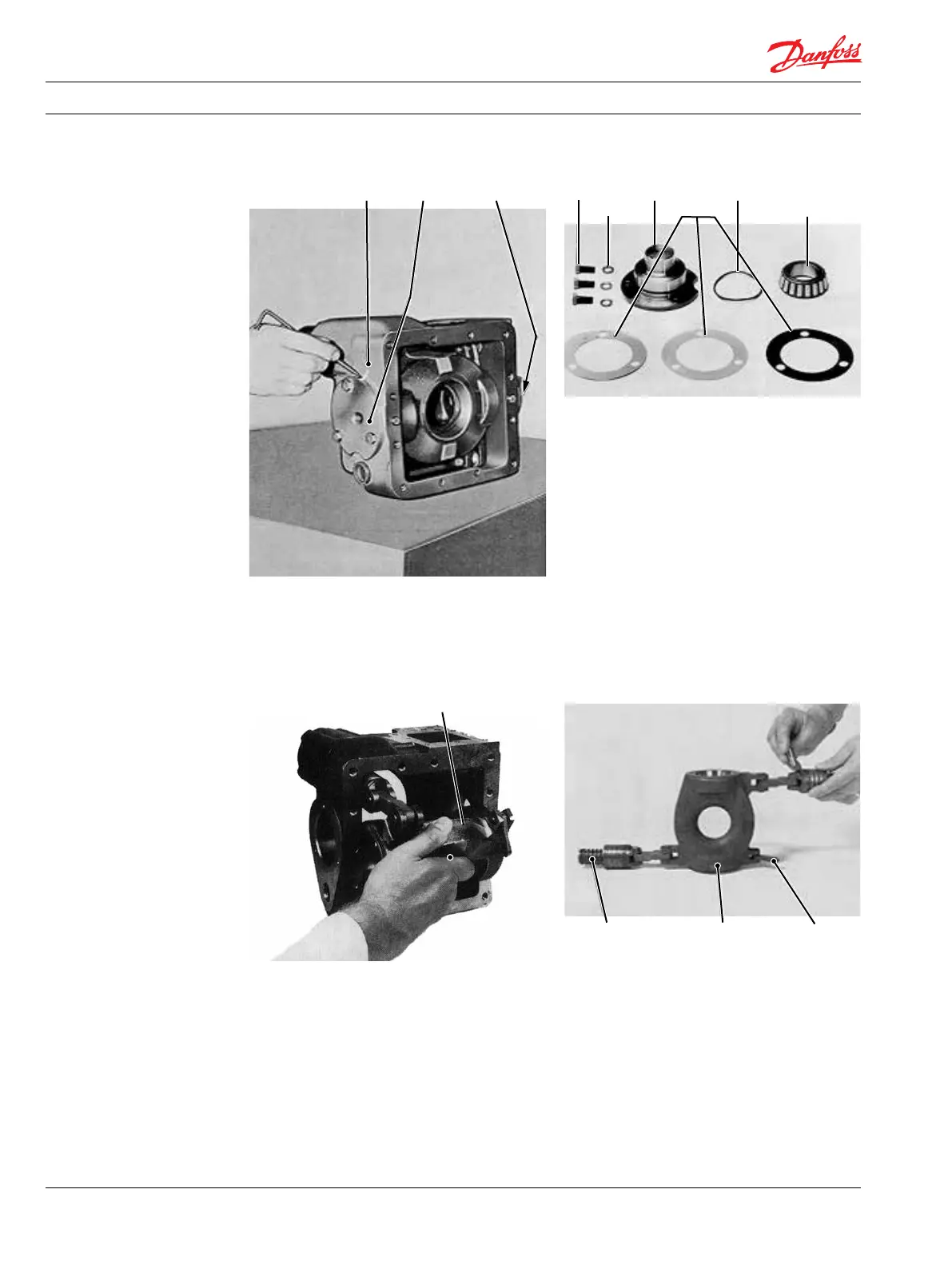

Mark the trunnion to facilitate correct
re-assembly later, and loosen the three screws on
each trunnion. Than remove the trunnion.
Once the trunnions have been removed, the
swash plate can be removed complete with
servo piston.
F000 114
Take care that the plastic shims are kept together
with the respective trunnions.
Individual parts of the servo piston can if
necessary, be replaced.
F000 245
F000 116
135
F000 113
35, 36, 37, 38 135 46, 47, 48
62 67 67
65 67 69 70
66 68 Cone bearing
