MG.90.D1.02 – VLT is a registered Danfoss trademark
58

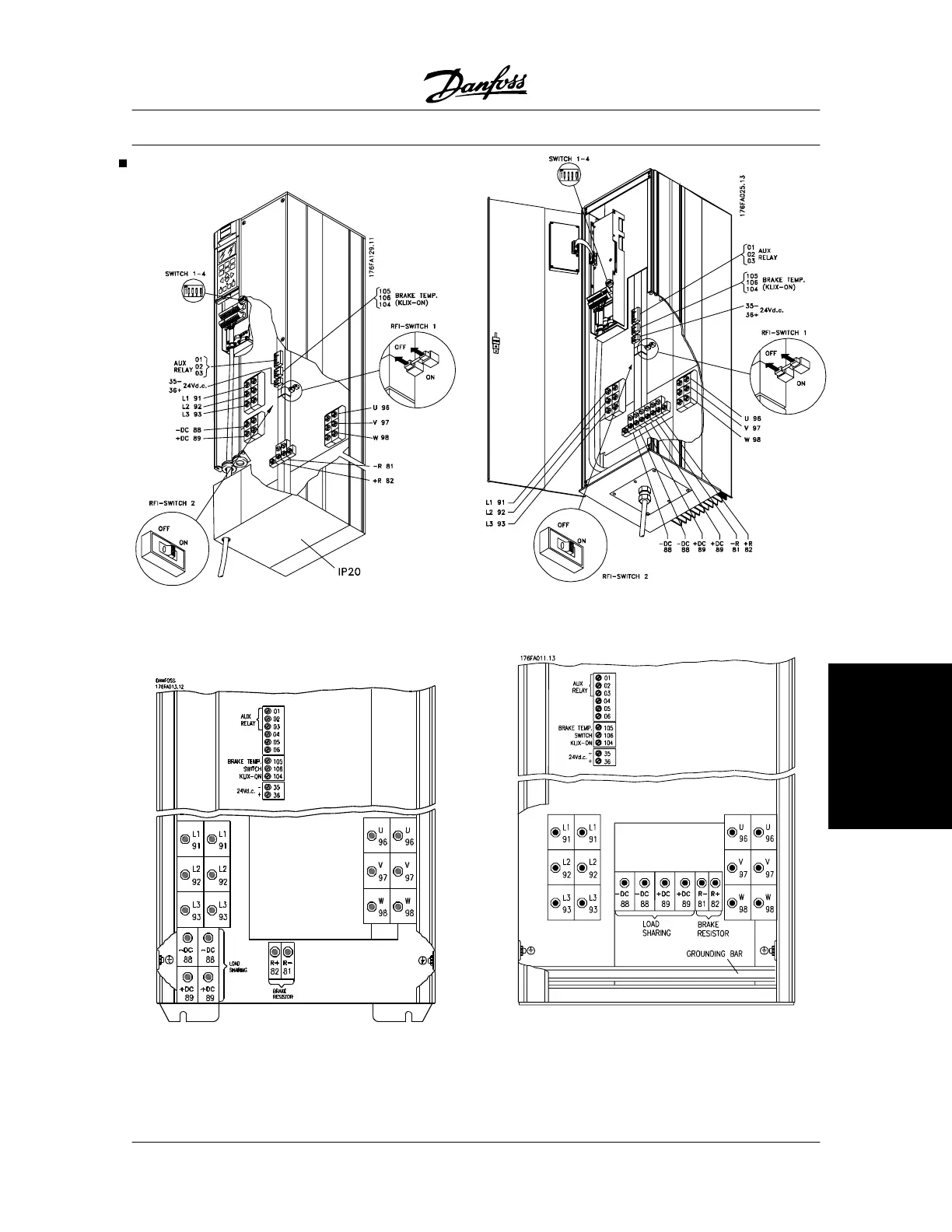

VLT
®
5000/5000 Flux/6000 HVAC/8000 AQUA PROFIBUS
■ Parameter list VLT 5000
Parameter list
Data
type
PNU Parameter Factory setting Range Changes Conversion
# description during Index
operation
001 Language English Yes No 0 5
002 Local/remote control Remote control Yes Yes 0 5
003 Local reference 000.000 Yes Yes -3 4
004 Active setup Setup 1 Yes No 0 5
005 Programming setup Active setup Yes No 0 5
006 Copying of setups No copying No No 0 5
007 LCP copy No copying No No 0 5
008 Display scaling of motor frequency 1 0.01 - 100.00 Yes Yes -2 6
009 Display linie 2 Frequency [Hz] Yes Yes 0 5
010 Display line 1.1 Reference [%] Yes Yes 0 5
011 Display line 1.2 Motor current [A] Yes Yes 0 5
012 Display line 1.3 Power [kW] Yes Yes 0 5
013 Local control/configuration LCP digital control/as par.100 Yes Yes 0 5
014 Local stop Possible Yes Yes 0 5
015 Local jog Not possible Yes Yes 0 5
016 Local reversing Not possible Yes Yes 0 5
017 Local reset of trip Possible Yes Yes 0 5
018 Lock for data change Not locked Yes Yes 0 5
019 Operating state at Forced stop, use saved ref. Yes Yes 0 5
power-up, local control
100 Configuration Speed control, open loop No Yes 0 5
101 Torque characteristics High - constant torque Yes Yes 0 5
102 Motor power Depends on the unit 0.18-500 kW No Yes 1 6
103 Motor voltage Depends on the unit 200 - 500 V No Yes 0 6
104 Motor frequency 50 / 60 Hz No Yes 0 6
105 Motor current Depends on the unit 0.01- I
VLT;MAX
No Yes -2 7
106 Rated motor speed Depends on the unit 100-60000 rpm No Yes 0 6
107 Automatic motor adaptation, AMA Adaptation off No No 0 5
108 Stator resistor Depends on the unit No Yes -4 7
109 Stator reactance Depends on the unit No Yes -2 7
110 Motor magnetizing, 0 rpm 100 % 0 - 300 % Yes Yes 0 6
111 Min. frequency normal magnetizing 1.0 Hz 0.1 - 10.0 Hz Yes Yes -1 6
113 Load compensation at low speed 100 % 0 - 300 % Yes Yes 0 6
114 Load compensation at high speed 100 % 0 - 300 % Yes Yes 0 6
115 Slip compensation 100 % -500 - 500 % Yes Yes 0 3
116 Slip compensation time constant 0.50 s 0.05 - 1.00 s Yes Yes -2 6
117 Resonance dampening 100 % 0 - 500 % Yes Yes 0 6
118 Resonance dampening time constant 5 ms 5 - 50 ms Yes Yes -3 6
119 High starting torque 0.0 sec. 0.0 - 0.5 s Yes Yes -1 5
120 Start delay 0.0 sec. 0.0 - 10.0 s Yes Yes -1 5
121 Start function Coasting in start delay time Yes Yes 0 5
122 Function at stop Coasting Yes Yes 0 5
123 Min. frequency for activating 0.0 Hz 0.0 - 10.0 Hz Yes Yes -1 5
function at stop
124 DC holding current 50 % 0 - 100 % Yes Yes 0 6
125 DC braking current 50 % 0 - 100 % Yes Yes 0 6
126 DC braking time 10.0 sec. 0.0 - 60.0 sec. Yes Yes -1 6
127 DC brake cut-in frequency Off 0.0-par. 202 Yes Yes -1 6
128 Motor thermal protection No protection Yes Yes 0 5
129 External motor fan No Yes Yes 0 5
130 Start frequency 0.0 Hz 0.0-10.0 Hz Yes Yes -1 5
131 Initial voltage 0.0 V 0.0-par. 103 Yes Yes -1 6
4-Setup
