Setting / Indstilling / Einstellung / Réglage / Instelling / Inställning / Asettelu / Wykonywanie nastawy / Iestādījumi / Beállítás /
Ayarlama / Настройка / Nastavení / 设定 / Nastavitev / Ajuste / Nustatymas
Measuring / Måling / Messung / Mesure / Meten / Mätning / Mittaaminen / Wykonywanie pomiarów / Mērīšana / Mérés / Ölçüm /
Измерение / Měření / 测量 / Merjenje / Medida / Matavimas
+
–

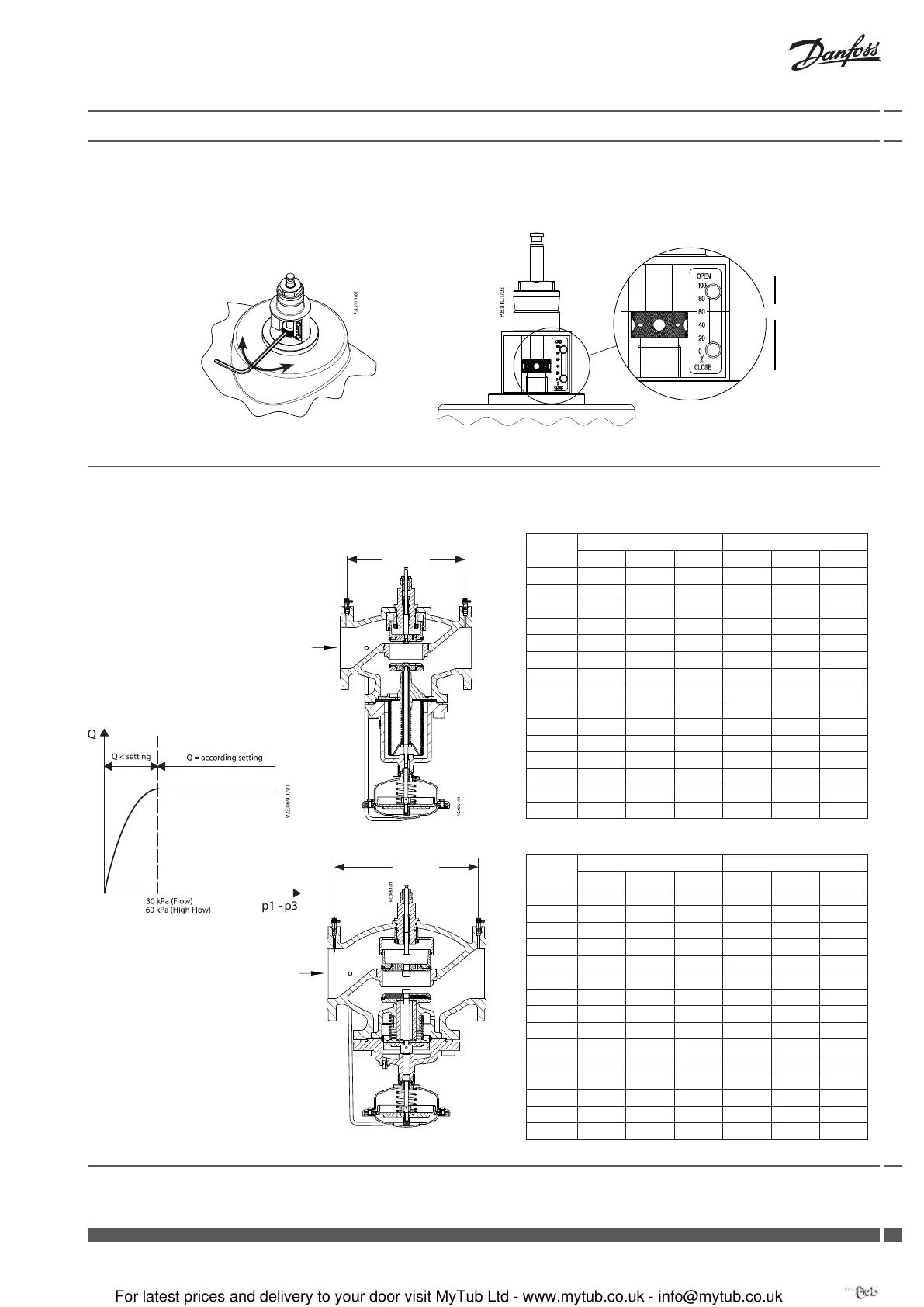

Setting 60%
+
–
Note:
DN 125 & 150: 1 turn = 5.0 %
DN 200 & 250: 1 turn = 5.5 %
DN 125
Flow High Flow
L/h L/s GPM L/h L/s GPM
40% 36.000 10,00 158 44.000 12,22 194
45% 40.500 11,25 178 49.500 13,75 218
50% 45.000 22,50 188 55.000 15,28 242
55% 49.500 13,75 218 60.500 16,81 266
60% 54.000 15,00 238 66.000 18,33 290
65% 58.500 16,25 257 71.500 19,86 315
70% 63.000 17,50 277 77.000 21,39 339
75% 67.500 18,75 297 82.500 22,92 363
80% 72.000 20,00 317 88.000 24,44 387
85% 76.500 21,25 337 93.500 25,97 411
90% 81.000 22,50 356 99.000 27,50 436
95% 85.500 23,75 376 104.500 29,03 460
100% 90.000 25,00 396 110.000 30,56 484
105% 95.000 26,39 418 115.000 31,94 506
110% 100.000 27,78 440 120.000 33,33 528
Note: 1 turn = 5,0%
DN 150
Flow High Flow
L/h L/s GPM L/h L/s GPM
40% 58.000 16,11 255 76.000 21,11 334
45% 65.250 18,13 287 85.500 23,75 376
50% 72.500 20,14 319 95.000 26,39 418
55% 79.750 22,15 351 104.500 29,03 460
60% 87.000 24,17 383 114.000 31,67 502
65% 94.250 26,18 415 123.500 34,31 543
70% 101.500 28,19 447 133.000 36,94 585
75% 108.750 30,21 479 142.500 39,58 627
80% 116.000 32,22 510 152.000 42,22 669
85% 123.250 34,24 542 161.500 44,86 711
90% 130.500 36,25 574 171.000 47,50 752
95% 137.750 38,26 606 180.500 50,14 794
100% 145.000 40,28 638 190.000 52,78 836
105% 152.500 42,36 671 209.500 58,19 922
110% 160.000 44,44 704 229.000 63,61 1.008
Note: 1 turn = 5,0%
p1−p3
AB-QM DN 150
AB-QM DN 125
P1 − P3
p1−p3
Installation Guide AB-QM DN 125-250
Heating Solutions VI.C6.C4.8Y SMT/SI
