DN 200
Flow High Flow
L/h L/s GPM L/h L/s GPM
40% 76.000 21,11 334 100.000 27,78 440
45% 85.500 23,75 376 112.500 31,25 495
50% 95.000 26,39 418 125.000 34,72 550
55% 104.500 29,03 460 137.500 38,19 605
60% 114.000 31,67 502 150.000 41,67 660
65% 123.500 34,31 543 162.500 45,14 715
70% 133.000 36,94 585 175.000 48,61 770
75% 142.500 39,58 627 187.500 52,08 825
80% 152.000 42,22 669 200.000 55,56 880
85% 161.500 44,86 711 212.500 59,03 935
90% 171.000 47,50 752 225.000 62,50 990
95% 180.500 50,14 794 237.500 65,97 1.045
100% 190.000 52,78 836 250.000 69,44 1.100
105% 199.500 55,42 878 262.500 72,92 1.155
110% 209.000 58,06 920 275.000 76,39 1.210
115% 218.500 60,69 961 287.500 79,86 1.265
120% 228.000 63,33 1.003 300.000 83,33 1.320
Note: 1 turn = 5,5%
DN 250
Flow High Flow
L/h L/s GPM L/h L/s GPM
40% 112.000 31,11 493 148.000 41,11 651
45% 126.000 35,00 554 166.500 46,25 733
50% 140.000 38,89 616 185.000 51,39 814
55% 154.000 42,78 678 203.500 56,53 895
60% 168.000 46,67 739 222.000 61,67 977
65% 182.000 50,56 801 240.500 66,81 1.058
70% 196.000 54,44 862 259.000 71,94 1.140
75% 210.000 58,33 924 277.500 77,08 1.221
80% 224.000 62,22 986 296.000 82,22 1.302
85% 238.000 66,11 1.047 314.500 87,36 1.384
90% 252.000 70,00 1.109 333.000 92,50 1.465
95% 266.000 73,89 1.170 351.500 97,64 1.547
100% 280.000 77,78 1.232 370.000 102,78 1.628
105% 294.000 81,67 1.294 388.500 107,92 1.709
110% 308.000 85,56 1.355 407.000 113,06 1.791
115% 322.000 89,44 1.417 425.500 118,19 1.872
120% 336.000 93,33 1.478 444.000 123,33 1.954
Note: 1 turn = 5,5%

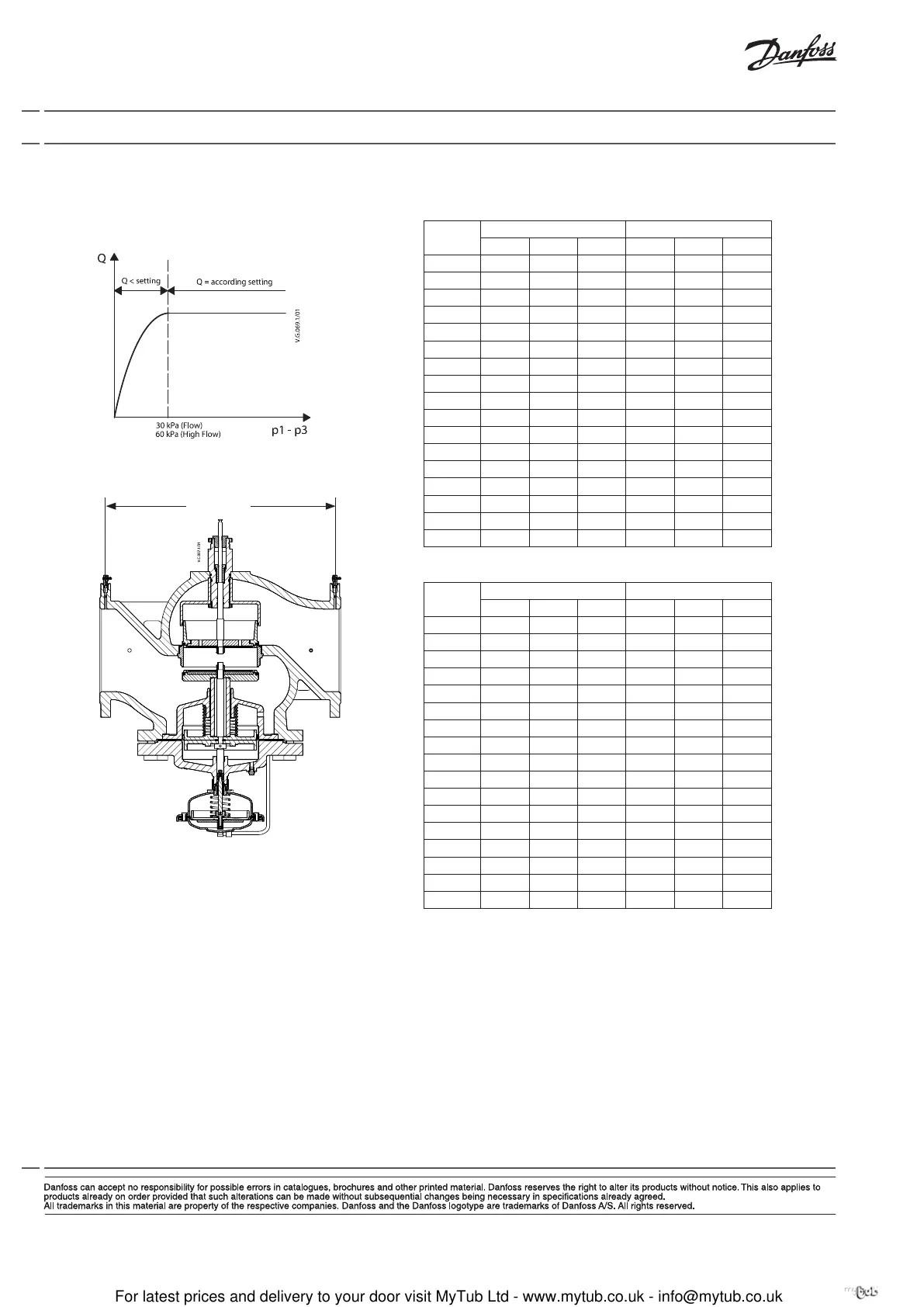

AB-QM DN 200/250
Measuring / Måling / Messung / Mesure / Meten / Mätning / Mittaaminen / Wykonywanie pomiarów / Mērīšana / Mérés / Ölçüm /
Измерение / Měření / 测量 / Merjenje / Medida / Matavimas
p1−p3
Installation Guide AB-QM DN 125-250
73693690/VI.C6.C4.8Y
Produced by Danfoss A/S © 02/2014
