AK-PC 351 User Guide RS8GZ302 © Danfoss 2015-06 7

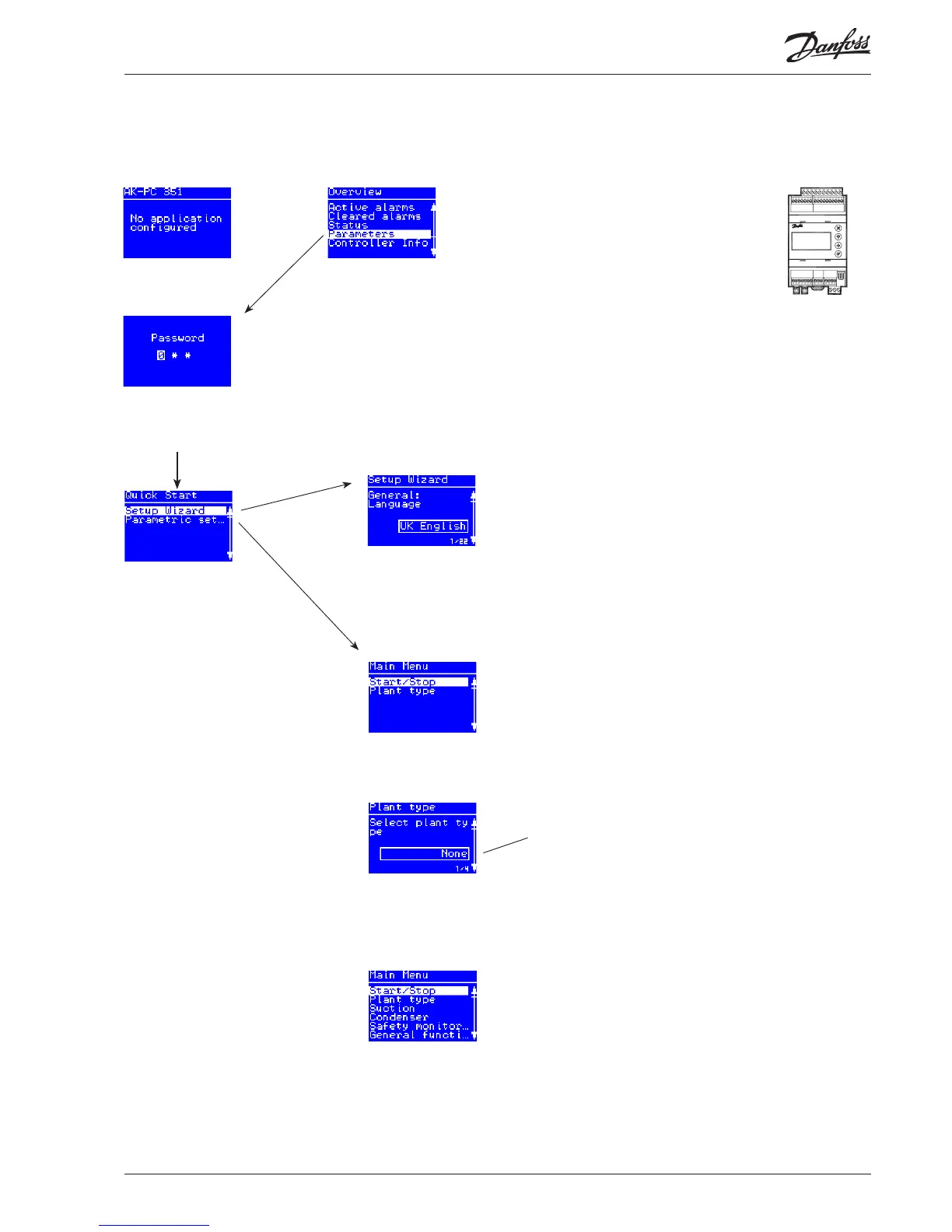

Start screen upon delivery
Set-up overview
There are two ways in which the controller can be set up. Select the one that is easiest for you: either “Wizard” or a review of “all
parameters”.
Hold “Enter” down for 2 sec-
onds to come to password entry
Press “Enter”
Operating principles
1. Select position using arrow keys
2. Select using “Enter”
3. Use the “X” to return
Wizard
Here you will be led through a series of settings, after
which the controller will be ready for start.
Image 1 of 22 is displayed here.
The following options are available here:
• Comp. + Cond. = suction group and condenser
• Condenser = ondenser only
• Compressor = suction group only
• None
Main Menu
The rst setting is the
Plant type
When the Plant type has
been selected, it will al-
low several settings to be
made.
For example:
Continue to the next
menus.
All settings are explained
on the pages that follow
The default password upon
delivery is 300. Use the arrow
keys to set the password. End
by pressing “Enter”
Select a set-up method. End
by pressing “Enter”
