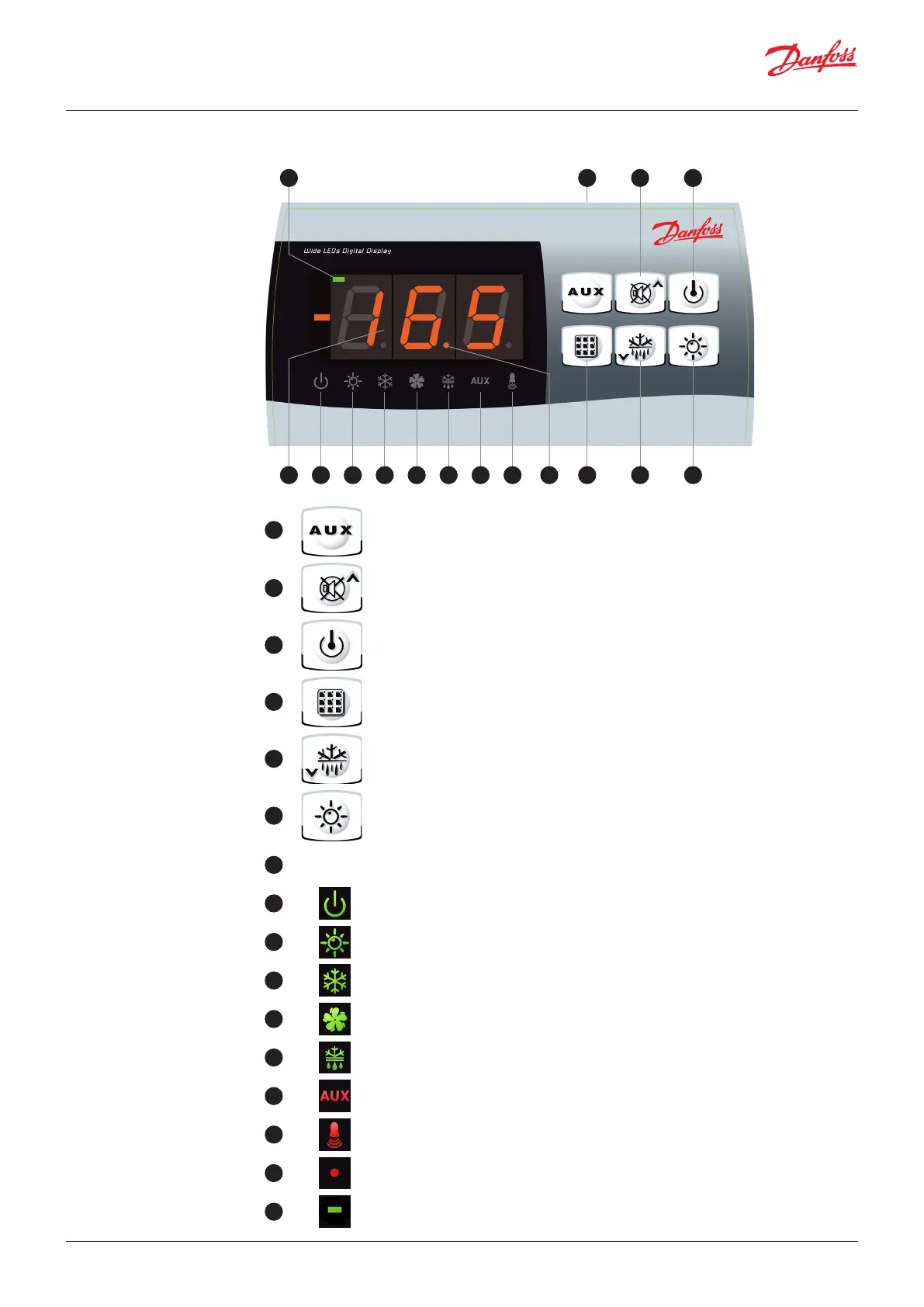

4.1 Control panel
4.0 Parameter
programming
4.2 Front keypad
4.3 LED display
116
487 9 10 11 12 13 14 15
2
5
3
6
Auxiliary relay control
(controls the relays manual if parameter AU1/AU2 = 2/-2)
1
Cold room temperature / parameters
7
Up/Mute buzzer alarm
2
Stand-by (flashes on stand-by, outputs are deactivated)
8
Room light (flashes if door switch activated)
9
Cold (indicates activation of compressor)
10
Auxiliary (indicates AUX relay calling if AU1/AU2=+/-2 or +/-3)
13
Fans
11
Alarm/warning
14
Hot mode (resistance call signaling)
16
Defrosting
12
Decimal point (flashing in night mode)
15
Stand by (if the system shuts down the LED flashes)
3
Room temperature Setting
4
Down/Manual defrost
5
Room light
6
