AME 10, AME 11
SN 0 Vac Neutral
SP 24 Vac Power supply
1
24 Vac Input
3
X 0(2)-10 Vdc Output
Proportional 3 point/RL
SN 0 Vac Neutral
SP 24 Vac Power supply
1
24 Vac Input
3
X 0(2)-10 Vdc Output
Proportional 3 point/RL
SN 0 Vac Neutral
SP 24 Vac Power supply
Y
0(2)-10 Vdc
Input
0(4)-20 mA
1
0 Vac Input
3
X 0(2)-10 Vdc Output
Proportional 3 point/RL

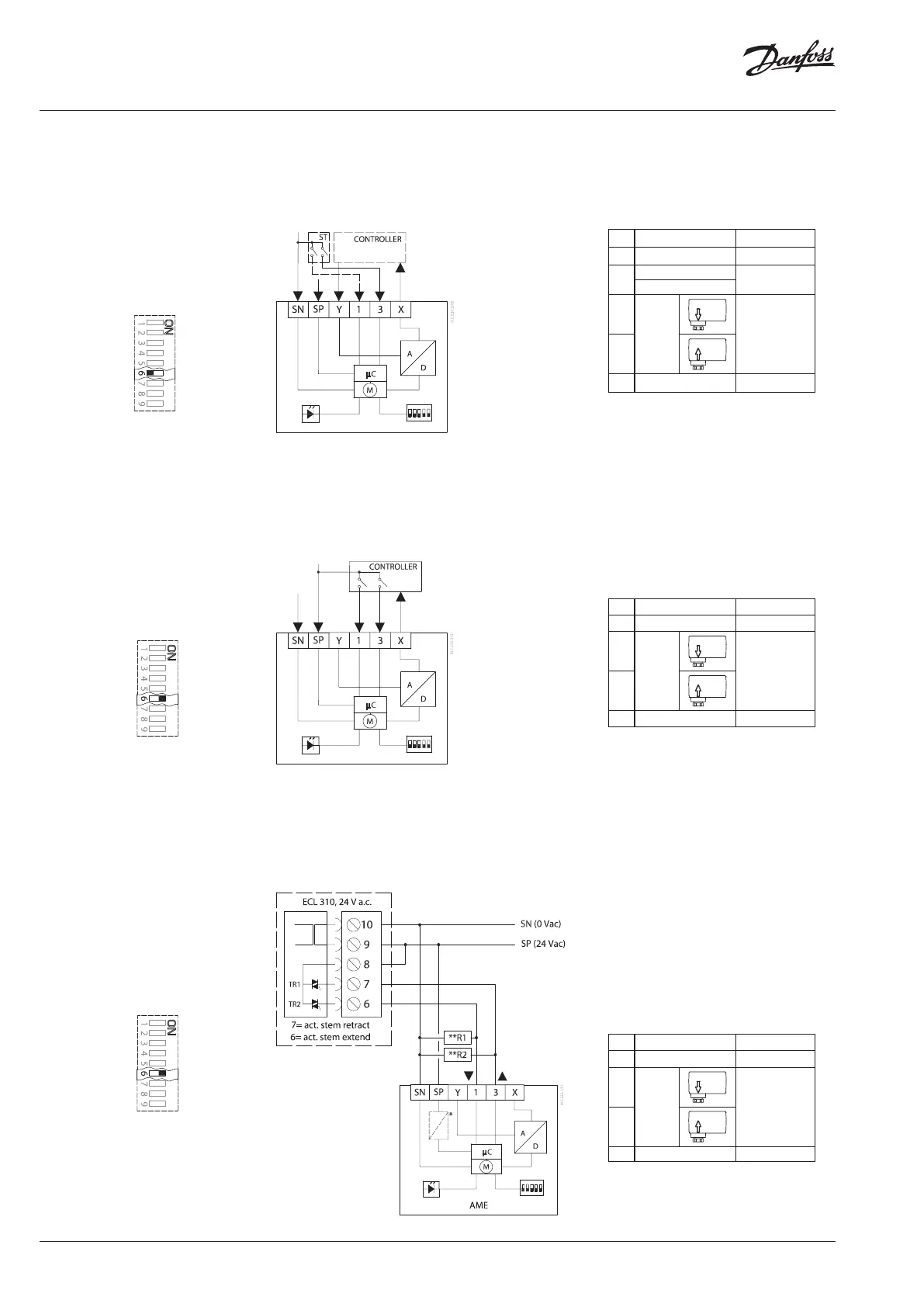

Wiring for modulating modeDIP 6 = OFF
DIP 6 = ON Wiring for 3-point floating mode / Controller with relay output
DIP 6 = ON Wiring for 3-point floating mode / Controller with triacs output
* Only for actuators with safety function
**R1, **R2=2.6 kΩ (0.5W)
❷
Actuator needs to perform Self stroking
prior changing DIP 6 to ON.
Output signal depends on DIP 2, 3&5
setting.
