Danfoss AME 55 User Manual

© Danfoss | 2016.10 | 3
VI.IR.T1.2V
AME 55, AME 56
SN 24 VAC Neutral
SP 0 V Power supply
1
24 VAC Input
3
X 0(2)-10 VDC Output

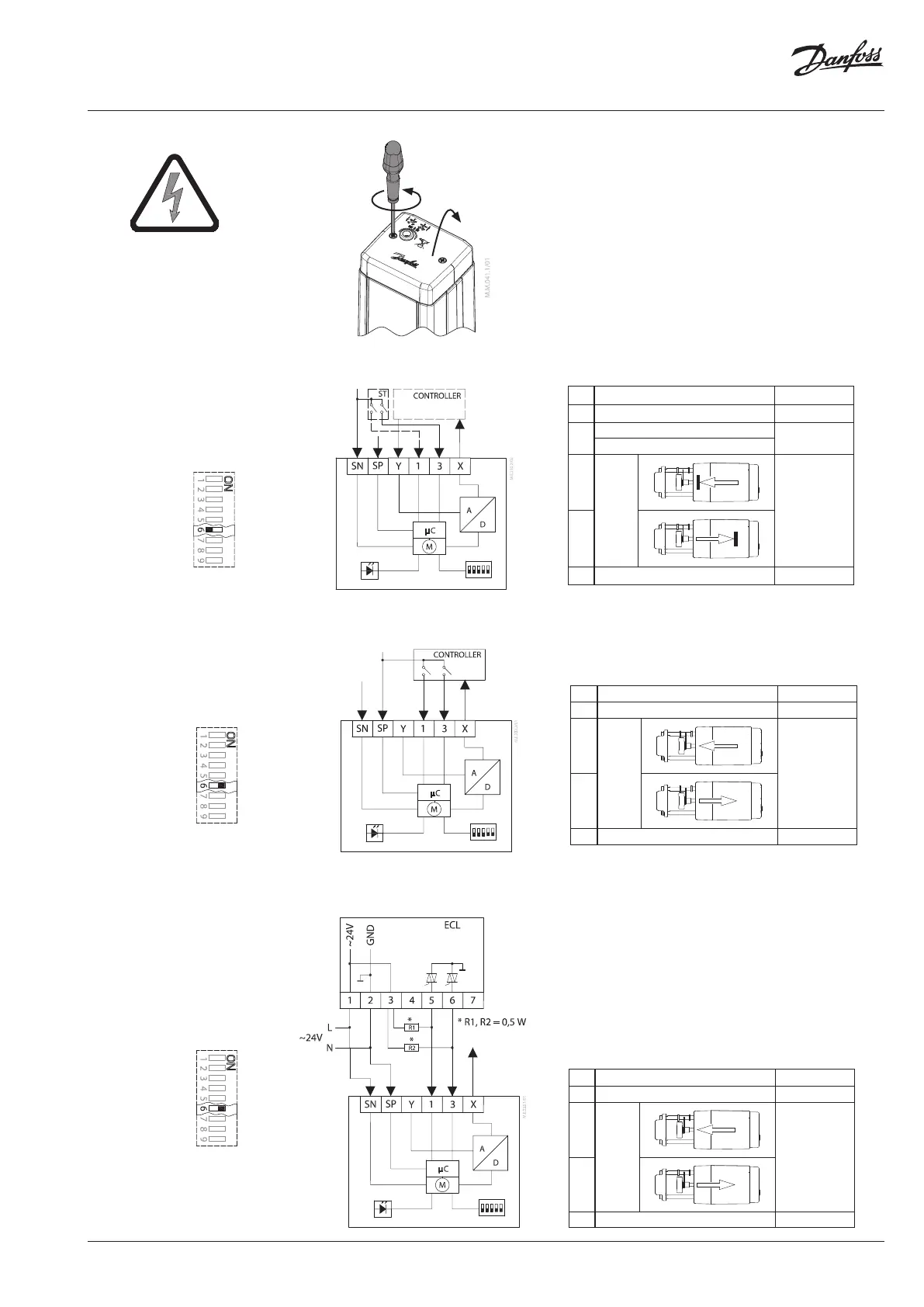

Wiring for 3-point floating mode Controller with triacs output
Proportional 3 point/RL
SN 0 V Neutral
SP 24 VAC Power supply
1
24 VAC Input
3
X 0(2)-10 VDC Output
Proportional 3 point/RL
SN 0 V Neutral
SP 24 VAC Power supply
Y
0(2)-10 V
Input
0(4)-20 mA
1
0 V Input
3
X 0(2)-10 V Output
Proportional 3 point/RL
① 2×
②
Wiring for 3-point floating mode Controller with relay output
Wiring for modulating mode
❸
