DEVItector™ II V2User Guide
BC421332622232en-01010124 | ©Danfoss | FEC | 2022.07

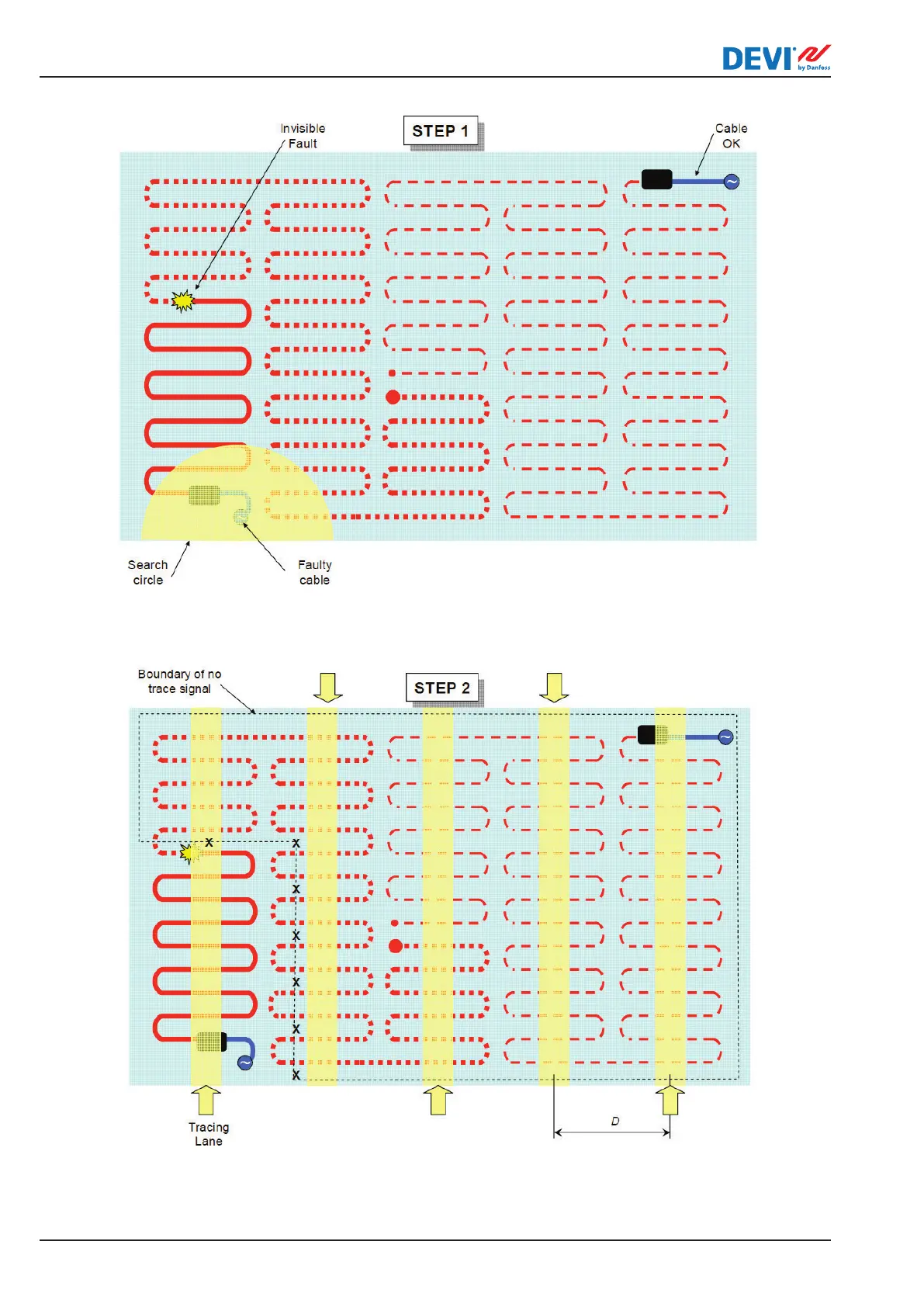

Fig. 23 Step 1: Sketch showing a room having two heating elements of which only one is faulty.
Fig. 24 Step 2: Trace the oor along parallel lanes a distance D=50 cm apart, shown as transparent yellow.
