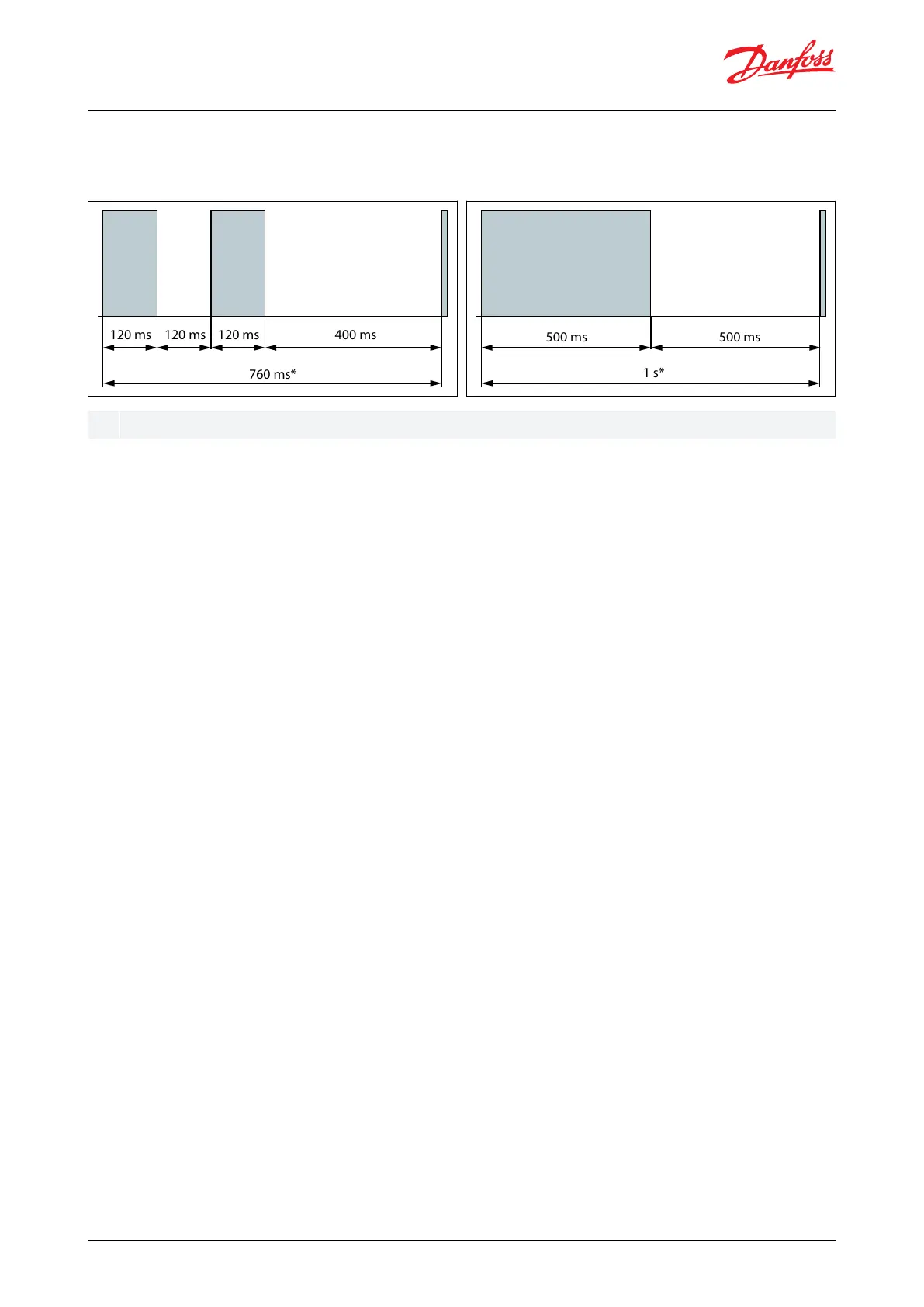

Figure 49: In case of phase reverse error
760 ms*
120 ms 400 ms120 ms 120 ms
Figure 50: In case of phase loss error:
Should one of these parameters be incorrect, the relay would lock out (contact M1-M2 open). The red LED on the
module will show the following blink code:
The lockout may be cancelled by resetting the power mains (disconnect L-N) for approximately 5 seconds.
For more detailed information see “ Instructions for electronic module” AN160986418236.
Scroll compressors, DSH090 to DSH600 | Electrical connections
© Danfoss | Climate Solutions | 2022.10 AB288965961751en-001402 | 44
