A375.2,examplea
Upto8xboilerON/OFFcontrolforaheatingcircuitandaDHWcircuit.
*=pressurereliefvalve

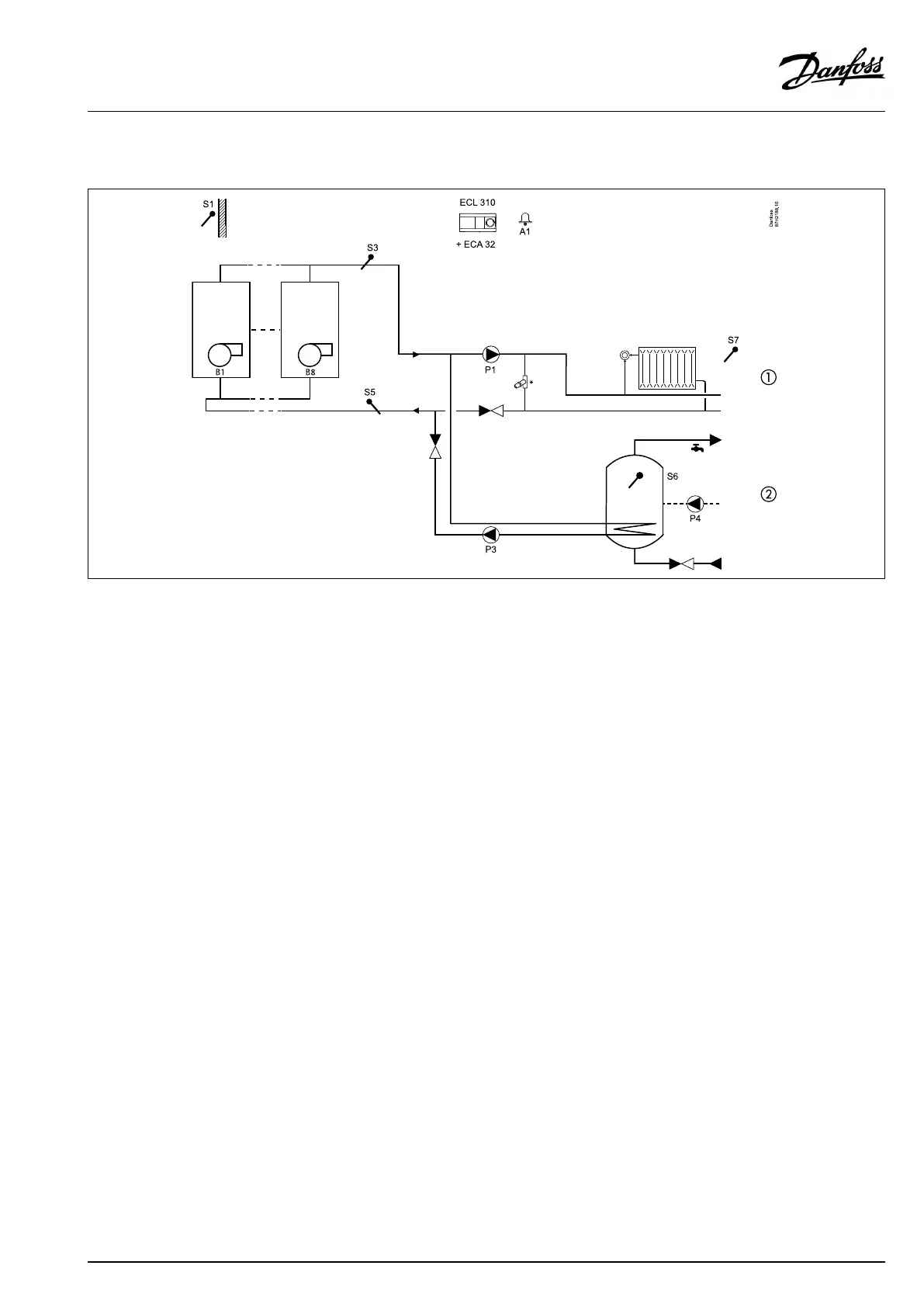

Theapplicationdrawingshowsageneralandbasicinstallation.
TheECLComfort310controllercontrolstheboilers1and2.TheextensionmoduleECA32controlsboiler3,4,5and6.TheECLComfort
310controllercontrolsboiler7and8viaauxillaryrelays.
Theburners/boilersarecontrolledasdescribedintheA375.1,examplesa-i.
TheDHWcircuitiscontrolledasdescribedintheA275.2examples.
