6 | © Danfoss| 2017.06
VI.LV.H1.02
Service guide ECL 296 / ECL 310 Modbus
7.0 Annexure A: Modbus network wiring guidelines
Typical Modbus network consists of:
Central heating station
Surge protector
RS485 (Modbus) repeater
Modbus to Ethernet converter
Repeater stations (individual houses with repeater)
Surge protector
RS485 repeater
Individual houses (without repeater)
Surge protector
Each nodes in the Modbus network (central heating station,
repeater station or individual house) can have surge protector.

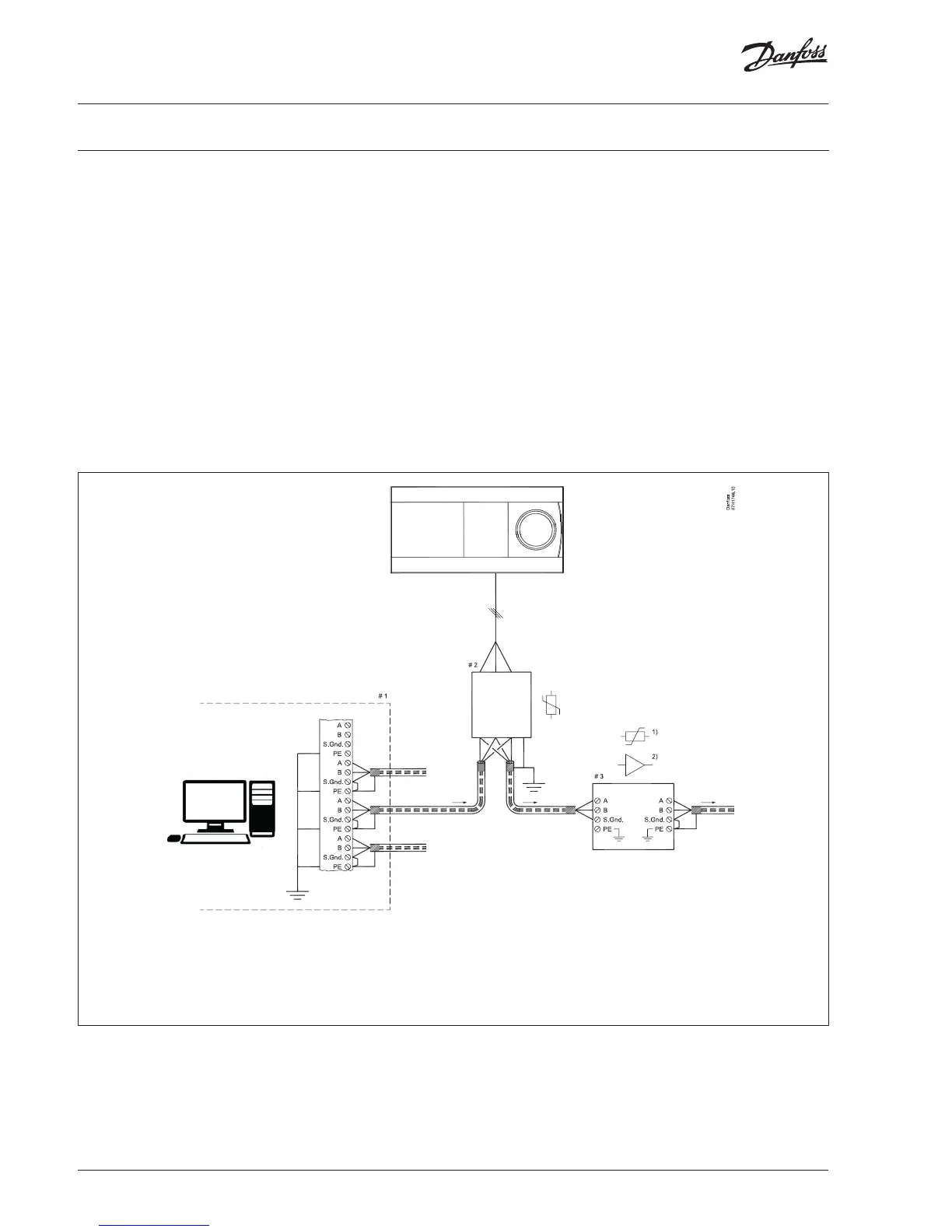

Top level logical drawing:
# 1 = central heating station
# 2 = individual house W/O repeater
# 3 = repeater station
1) = surge protector
2) = repeater
