InstallationGuideECLComfort210/310,applicationA214/A314
2.0Installation
2.1Beforeyoustart
A214



A214.1

Coolingwithroomtemperaturecontrol:


































 

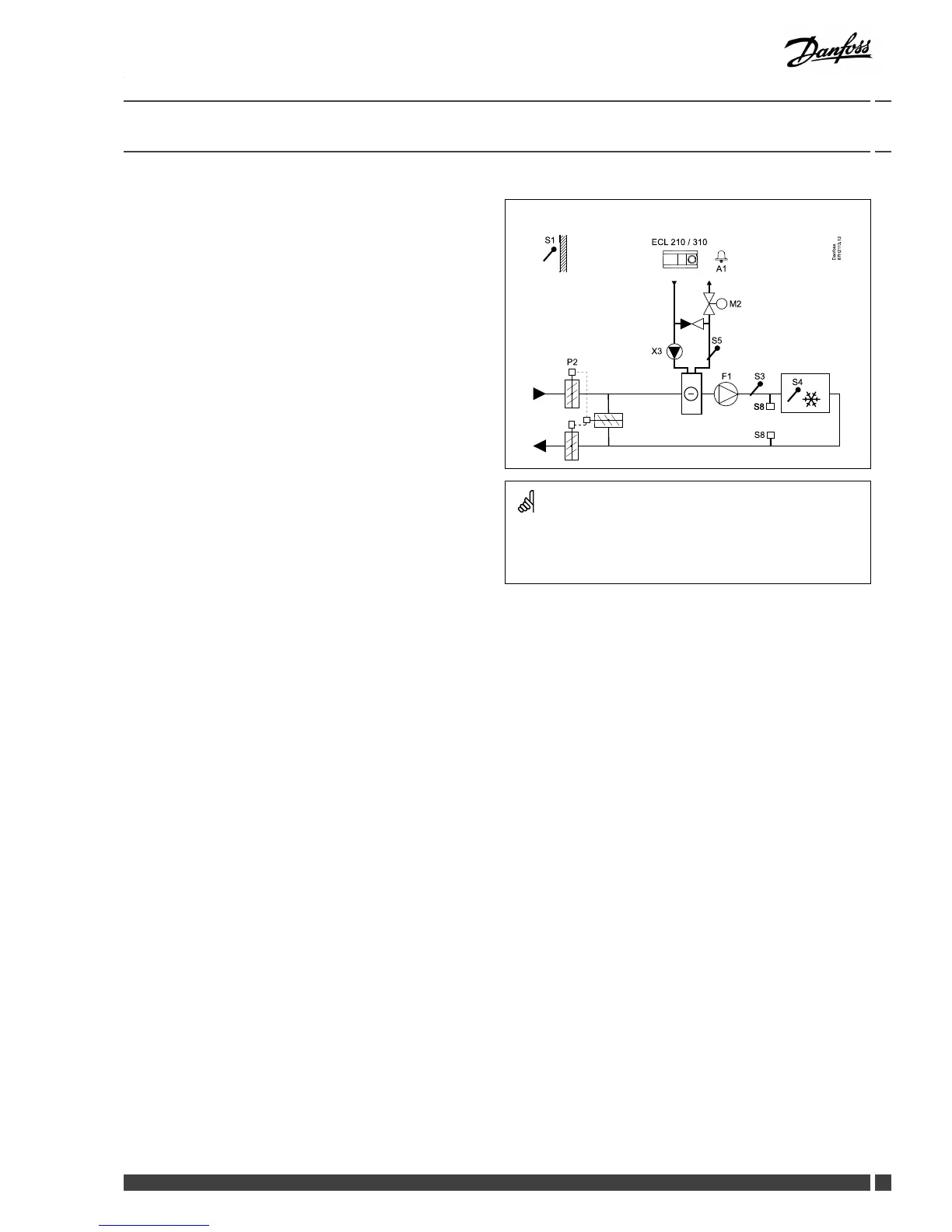

TypicalA214.1application:
S 3
S 4
P 2
F1
S 5
M2
X3
S 1
Da nfos s 87 H2113 .12
ECL 210 / 310
A1
S 8
S 8
S 8



Listofcomponents:
ECL210/310
ElectroniccontrollerECLComfort210or310
S1
Outdoortemperaturesensor
S2
(Optional)Compensationtemperaturesensor(not
illustrated)
S3Ducttemperaturesensor
S4
(Optional)Roomtemperaturesensor*
S5
(Optional)Returntemperaturesensor
S8
(Optional)Firethermostat
F1
Fan(ON/OFF)
P2
Damper(ON/OFF)
X3
Circulationpump(ON/OFF)
M2
Motorizedcontrolvalve,cooling(3-point
controlled)
A1
Alarm
*Alternative:ECA30




