Danfoss EKE 1C

© Danfoss | Climate Solutions | 2023.10
Danfoss 84N365.11
OD
OD
OD
OD
1
/
2
-
5
/
8
in.
12 - 16 mm
3
/
4
-
7
/
8
in.
18 - 22 mm
1 - 1
3
/
8
in.
25 - 35 mm
1
3
/
8
in. and higher
35 mm and higher
Danfoss 84N366.12
Danfoss 60G496.11
Danfoss
84N403.10
D
f
Close to the
evaporator
1
3
2
COM 5V+ DI2 DI1 COM AI4 AI3 AI2 DI3 COM D– D+ RGND
CAN RJ
–/~ +/~ GND Bat+ A1 A2 B1 B2 NO1 C1 NC1
COM 5V+ DI2 DI1 COM AI4 AI3 AI2 DI3 COM
CAN RJ
–/~ +/~ GND Bat+ A1 A2 B1 B2 NO1 C1 NC1
COM 5V+ DI2 DI1 COM AI4 AI3 AI2 DI3 COM D– D+ RGND
CAN RJ
–/~ +/~ GND Bat+ A1 A2 B1 B2 NO1 C1 NC1
COM 5V+ DI2 DI1 COM AI4 AI3 AI2 DI3 COM
CAN RJ
–/~ +/~ GND Bat+ A1 A2 B1 B2 NO1 C1 NC1
COM 5V+ DI2 DI1 COM AI4 AI3 AI2 DI3 COM D– D+ RGND
CAN RJ
–/~ +/~ GND Bat+ A1 A2 B1 B2 NO1 C1 NC1
COM 5V+ DI2 DI1 COM AI4 AI3 AI2 DI3 COM
CAN RJ
–/~ +/~ GND Bat+ A1 A2 B1 B2 NO1 C1 NC1
Danfoss 80G295.10
–/~ +/~
–/~ +/~
Superheat controller
EKE 1x - 080G5xxx
Superheat controller
EKE 1x - 080G5xxx
Superheat controller
EKE 1x - 080G5xxx
EKE EKE EKE
AN269954243889en-000905 | 7
Evaporator outlet
Conductive
paste
Important Note
• Mount the sensor on a clean
paint-free surface.
• Remember to use heat
conducting paste and insulate
the sensor.
• For precise measurements,
mount the sensor max. 5 cm
from the outlet of the evaporator.
Evaporator

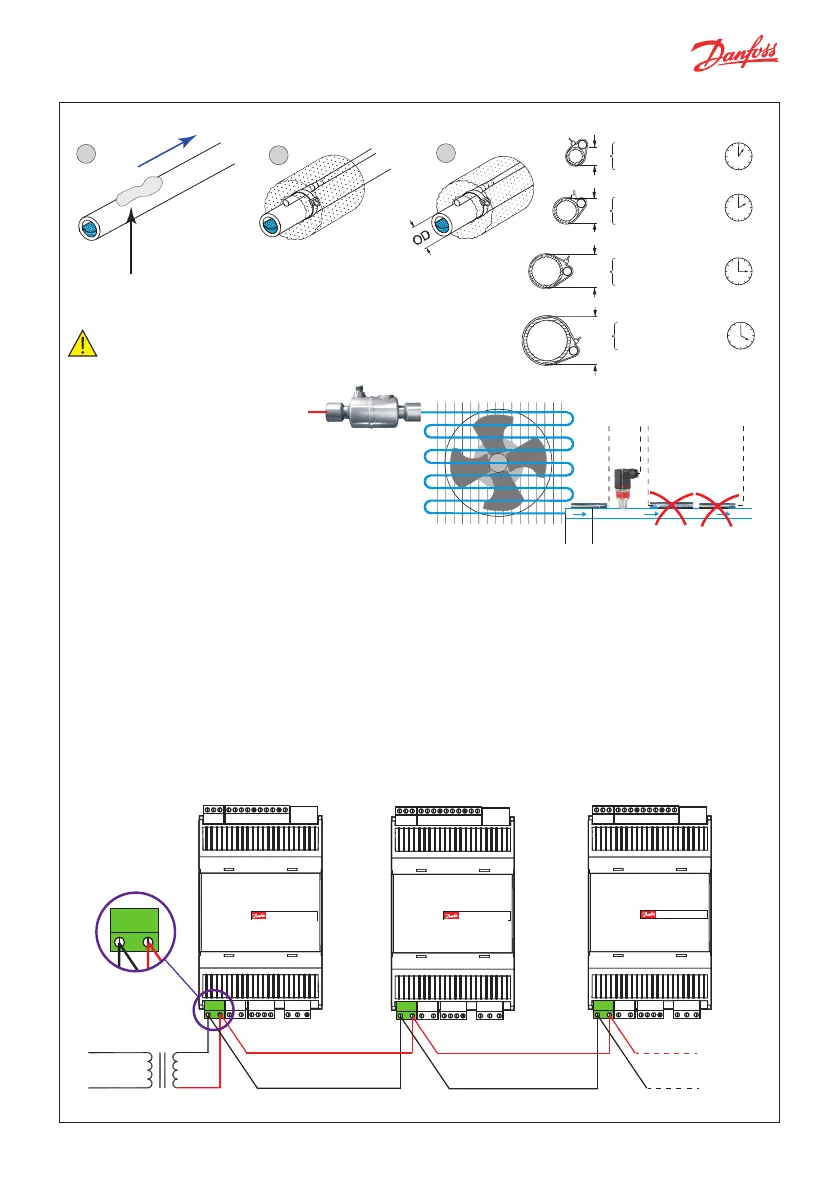

Sensor mounting: Temperature sensor
Pressure transmitter
• Installation of the pressure transmitter is less critical. However, the pressure transmitter should be closer to
the temperature sensor, right after the evaporator and with its head upright. It is a good practice to select
a pressure transmitter with an average load of 40 – 60% of full scale.
• Pressure transmitter values can be shared with multiple EKE 1C via CANbus.
Power supply
• Power sharing is allowed in EKE controller.
• It is a good practice not to reverse the polarity of the power connection cables. Selection of the common
power supply depends on the total number of sharings and the valve in use.
Power supply
Close to the
evaporator
Superheat controller Superheat controller
Superheat controller
