Danfoss EKE 347 Installation Guide

4 DKRCI.PI.RP0.C1.02 / 520H8794 © Danfoss A/S (AC-MCI/MWA), 2014-08
–/~ NO 4 NC 3 C 3 NO 3 NC 2 C 2 NO 2
– + NO 1 C 1 NC 1
POWER
SUPPLY
Voltage:
24 - 230 V a.c.

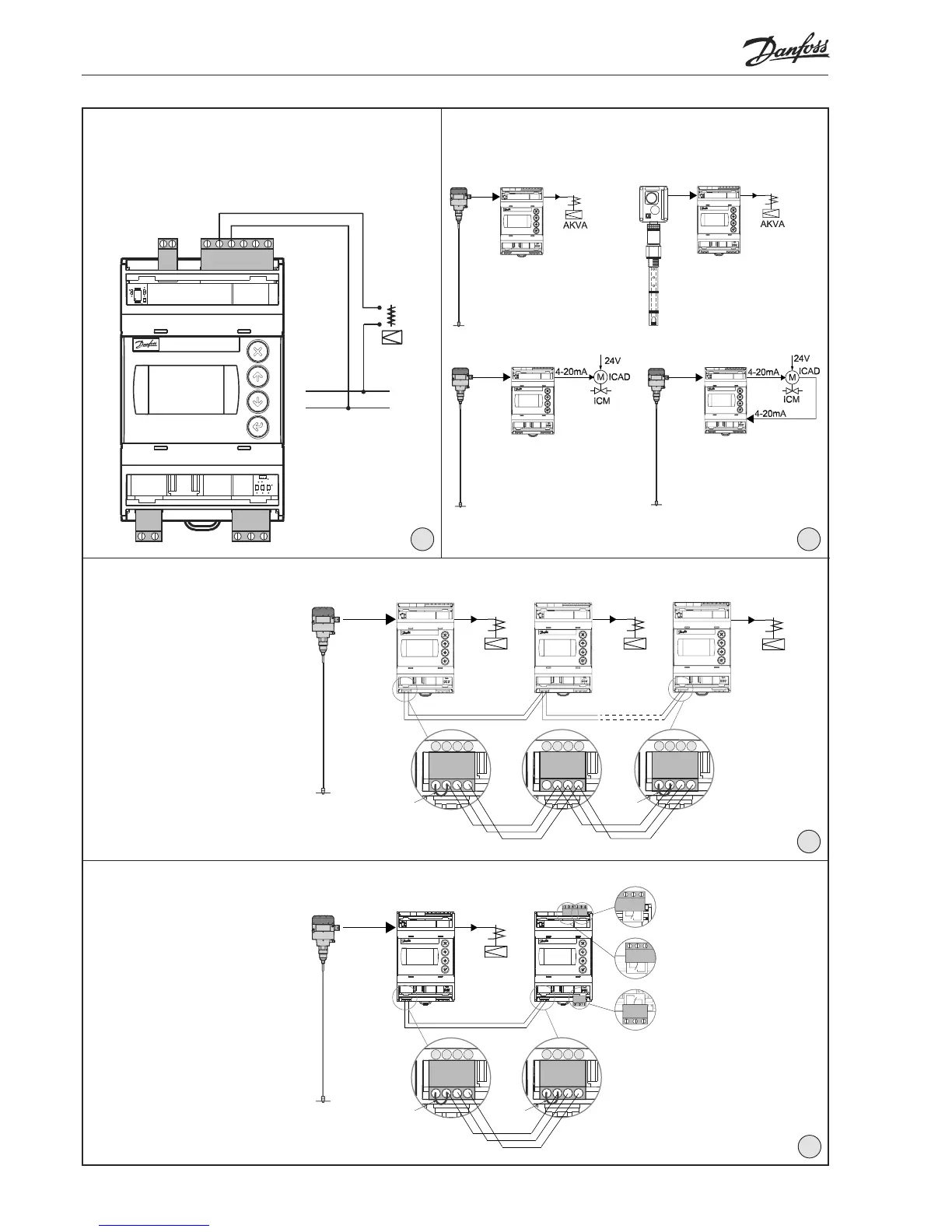

Connection examples
AKS 4100/
AKS 4100U
Danf
oss
M84H0075_1
AKS 41/
AKS 41U
Danf
oss
M84H0076_1
AKS 4100/
AKS 4100U
Danfoss
M84H0077_1
AKS 4100/
AKS 4100U
Danfoss M84H0078_1
EKE 347 - ON/OFF Application.
Open/Close solenoid valve with coil 24V - 230V
AKS 4100/
AKS 4100U
Danfoss M84H0084_1
MASTER
I/O
AKVA
(ICAD)
R120 CAN H CAN L GND
15 16 17 18
R120 CAN H CAN L GND
15 16 17 18
Jumper
15-16
Jumper
15-16
D02
D03
D01
NC 2 C 2 NO 2
NC 3 C 3 NO 3
NO 1 C 1 NC 1
AKS 4100/
AKS 4100U
Danfoss
M84H0080_1
MASTER
SLAVE 1
SLAVE 2
AKVA
(ICAD)
AKVA
(ICAD)
AKVA
(ICAD)
R120 CAN H CAN L GND
15 16 17 18
R120 CAN H CAN L GND
15 16 17 18
R120 CAN H CAN L GND
15 16 17 18
Jumper
15-16
Jumper
15-16
MASTER / SLAVE configuration
I/O configuration
6 7a
7b
7c
