IC.PS.600.A4.02 / 520B2809
IC.PS.600.A4.02 / 520B2809
Installation
Servo-operated and
assisted lift
servo-operated valves
Installing the coil Danfoss recommends that the solenoid valve be in-
stalled with coil upwards. This minimises the risk of dirt
collecting in the armature tube.

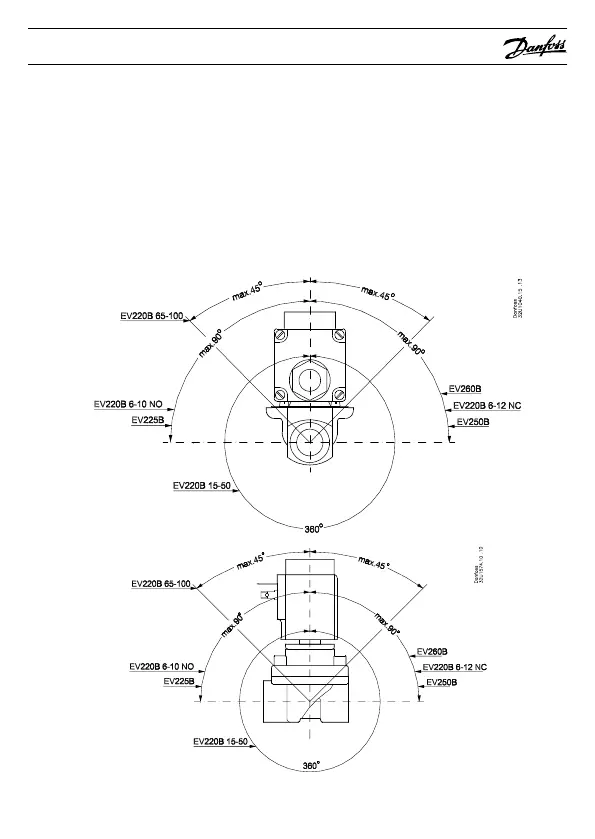

If “clean” media is used, i.e. media containing no dirtpar-
ticles, the solenoid valve will operate when installed in
the orientation as shown below.
