5
IC.PS.600.A4.02 / 520B2809
© Danfoss A/S (IA-MC/mhe) 05-2007 / 520B2809IC.PS.600.A4.02 / 520B2809
Installation

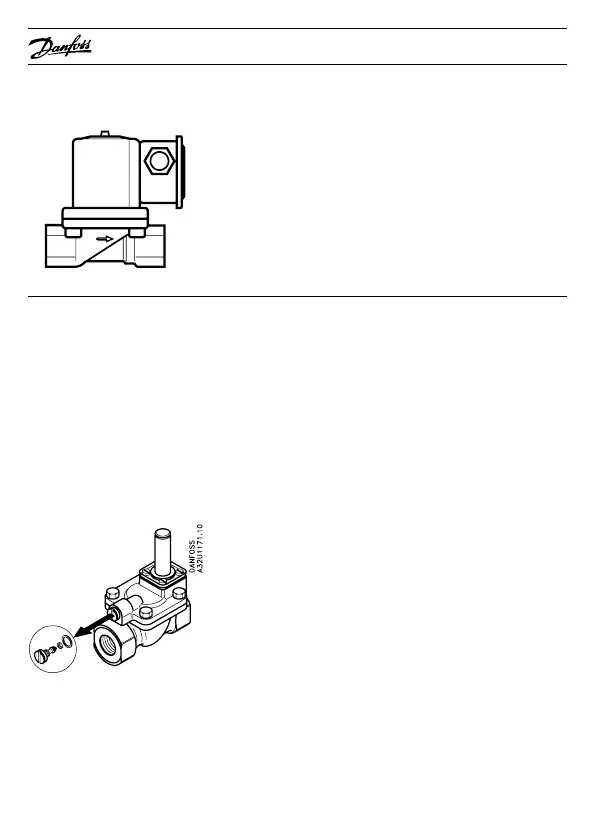

Flow direction
Water hammer is a typical result of high liquid
velocity (high pressure and high ow velocity
through small pipe diameters).
There are several reasonable solutions to the
problem:
A: Reduce the pressure by installing a pressure
reduction valve ahead of the solenoid valve. If pos-
sible, increase the pipe diameter.
B: Damp the water hammer by installing a exible
hose or exible buer ahead of the solenoid valve.
C: Use a solenoid valve of the type EV220B 15-50.
The equalising orice can be replaced by a version
with smaller diameter. This gives a longer closing
time (see “Spare parts” and “Opening and closing
times”).
Water hammer
To be able to operate correctly, all solenoid valves
must be installed with the arrow cast on the body
pointing in the direction of ow.
Equalising orice
