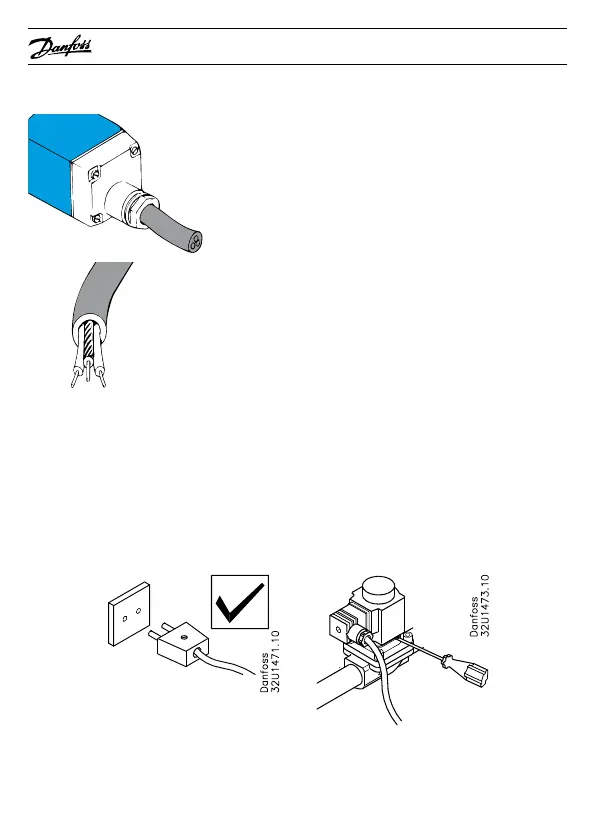

Installation
Cable
Coil replacement Please note for clip-on coils.
When replacing a coil, use a screwdriver to lever it
from the armature.
Caution: Before removing a coil, voltage must be
disconnected, otherwise the coil will burn out.
Note the colours on the cable leads. Yellow/green
is always earth. The other leads should be for the
phase and neutral supply.
To avoid moisture penetrating in the terminal box,
the whole cable diameter must be secured in the
entry. For this reason, always use round cables
as they are the only type that can be eectively
sealed.
