Crimping Flat Field Crimp

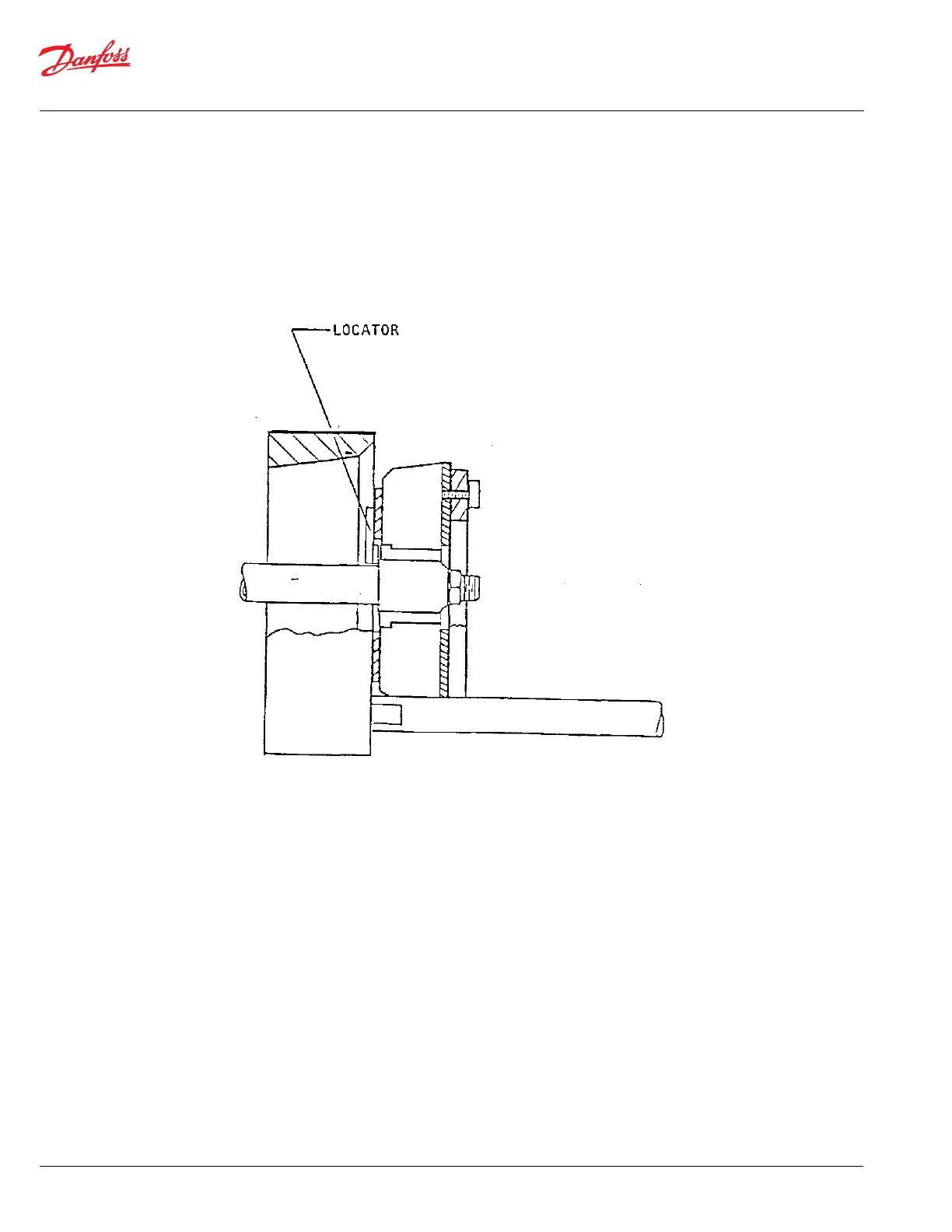

This illustration shows the special locator used for flat field crimp location. Determine hose size, rotate the corresponding locating tab to its
fully extended position. Place fitting inside cage and pull back until the edge of the socket skirt contacts the rubber grommet on the inside
of the locator tab. Maintain the fitting in this position while crimping.
