Operating / Assembly Instructions
Factory Crimp Style (2 piece fitting)

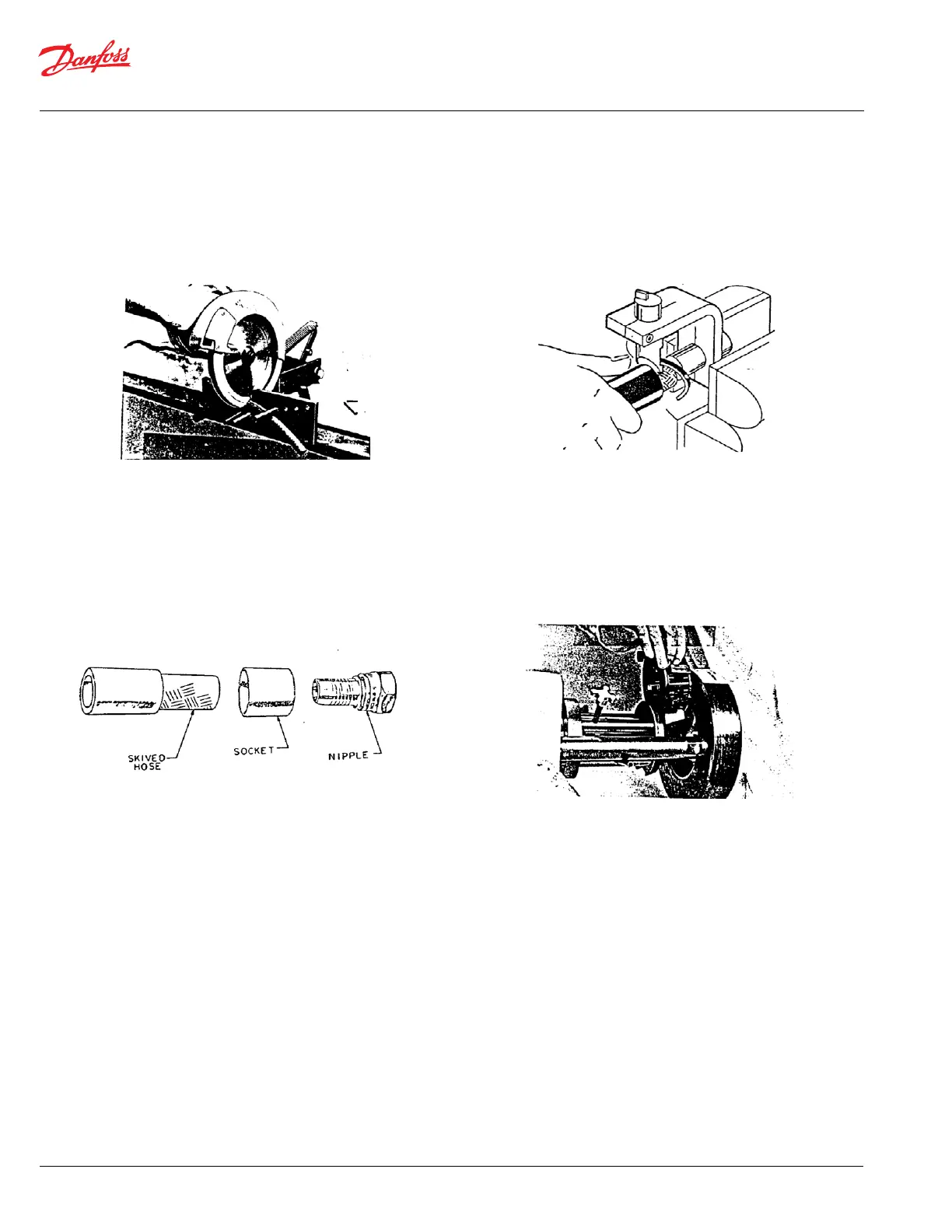

STEP 1 - CUT THE HOSE TO LENGTH REQUIRED
CUT THE HOSE USING A CUT-OFF SAW OR FINE TOOTH HACKSAW.
CLEAN THE HOSE BORE
STEP 3 - PREASSEMBLE
PLACE SOCKET OVER THE HOSE. INSERT THE NIPPLE INTO THE BORE
OF THE HOSE UNTIL THE HOSE BOTTOMS OUT AGAINST THE NIPPLE.
STEP 2 - SKIVE THE HOSE TO PROPER LENGTH
USE THE CORRECT SIZE DANFOSS FT1230 HOSE COVER SKIVING TOOL.
MOUNT THE TOOL IN A VISE. PUSH THE HOSE OVER THE MANDREL. ROTATE
THE HOSE CLOCKWISE TO REMOVE COVER UNTIL THE HOSE BOTTOMS OUT
ON THE MANDREL. ROTATE 1 MORE TURN FOR CLEAN BREAK.
STEP 4 - INSERT PROPER CRIMP DIE CAGE
WITH THE PISTON RETRACTED, THE CORRECT CRIMP DIE CAGE IS
INSTALLED WITHIN THE THREE ALIGNMENT SLOTS. FOR PROPER CRIMP
DIE NUMBER REFER TO THE POWERSOURCE CRIMP SPEC TOOL AND
DANFOSS.COM/CRIMP.
