Crimping Factory Flat Crimp

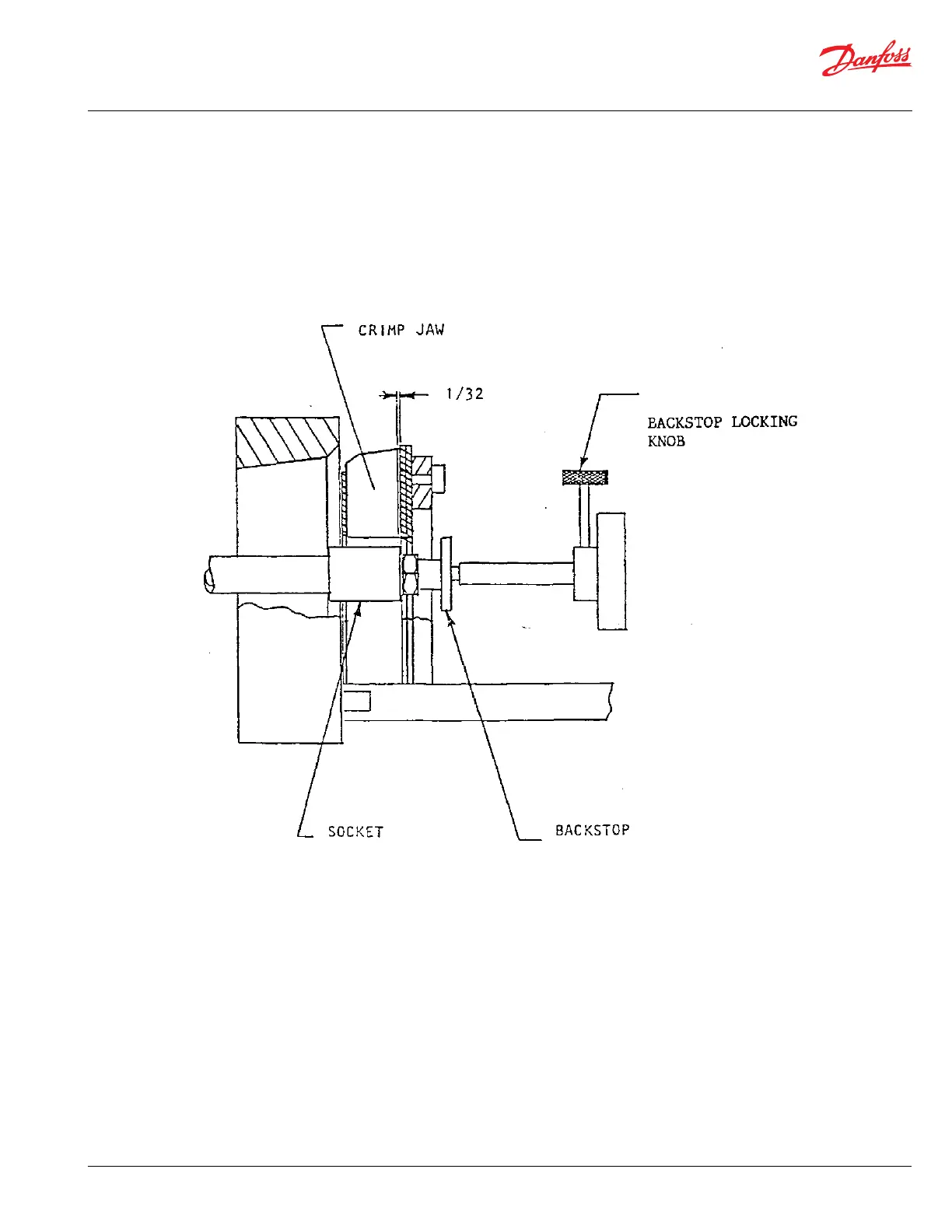

This illustration shows the locator being used for flat crimp location. To position the fitting, loosen the hand knob and slide the locator
assembly forward or back until the fitting is 1/32 back from the face of the jaw when held firmly against the locator. Lock the locator in this
position by tightening the hand knob.
