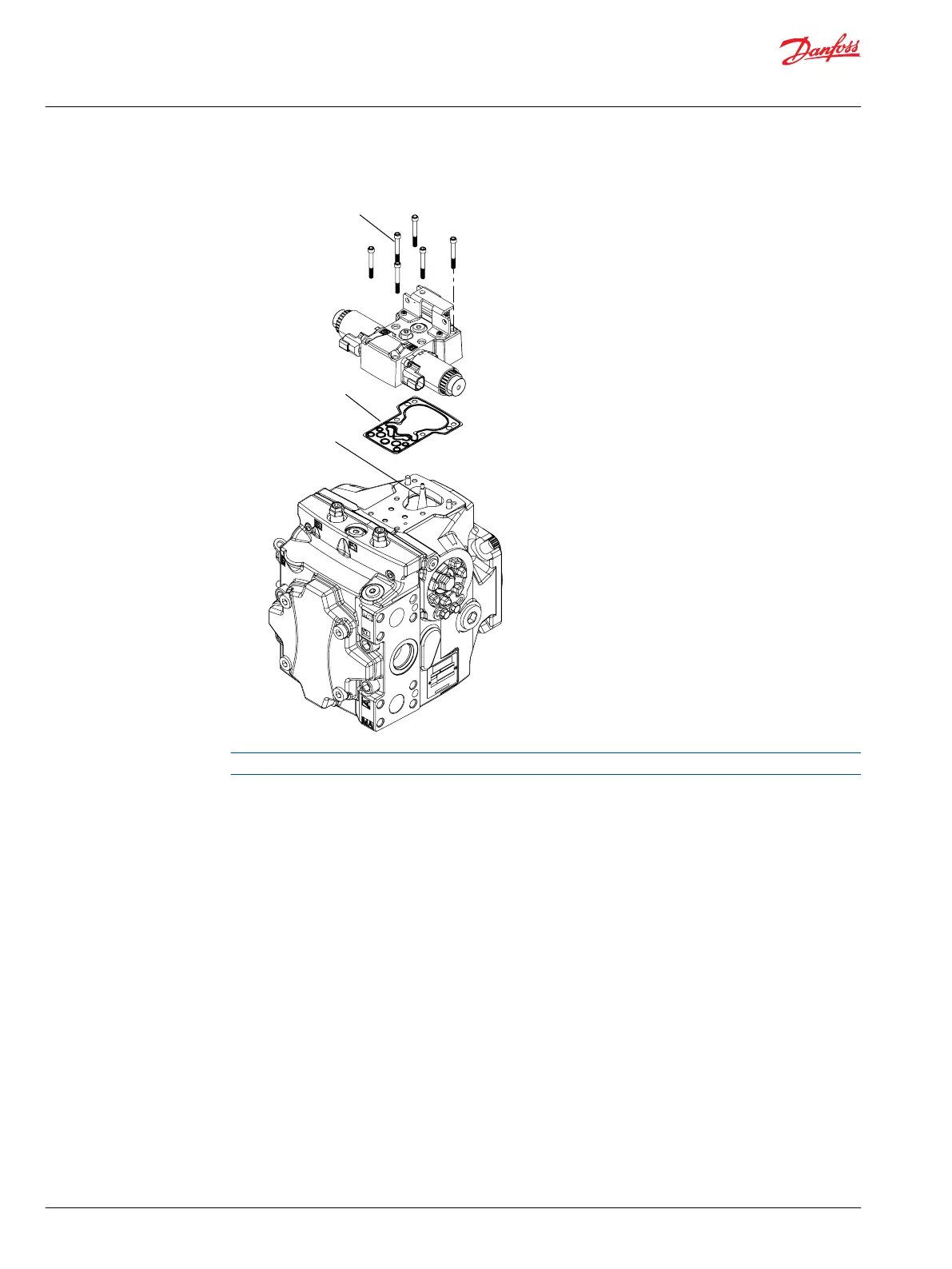

EDC with Angle Sensor Repair
Dowel pins (D300) must remain in the housing.
1. Clean pump externally with clean solvent to remove debris.
2. Using a 5 mm internal hex wrench, remove the six cap screws (D250)
3. Remove the control module and gasket (D150) and discard the gasket.
4. Install a new gasket (D150).
5. Ensure assembly fixture is positioned over the linkage spring in EDC center.
6. Position the control on the pump housing and ensure that feedback pin on swashplate is positioned
properly in control arm.
Service Manual
H1P 069—H1P 280 Axial Piston Single Pumps
Minor Repair
50 |
©
Danfoss | January 2021 AX152886482551en-000601
