Danfoss LCP User Manual

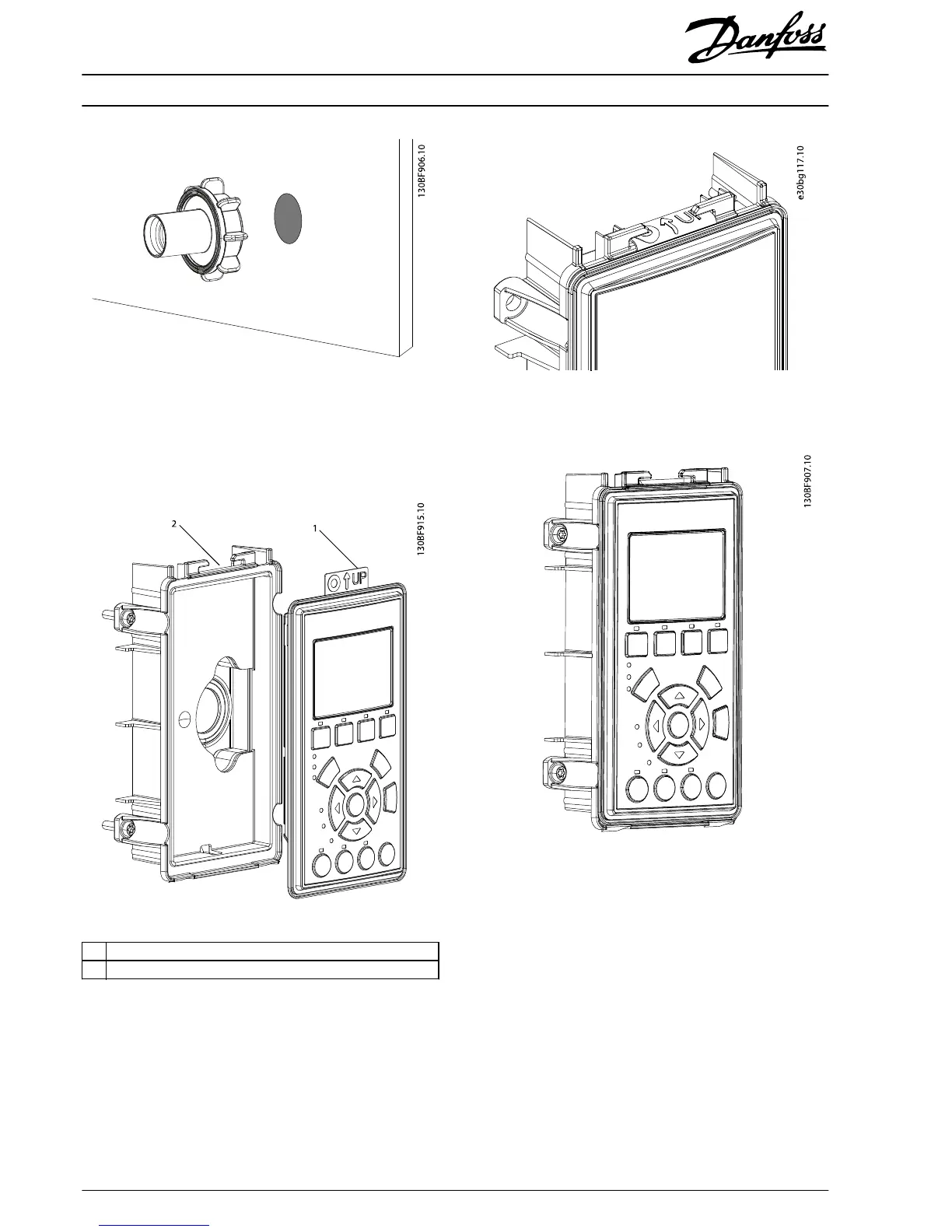

Illustration 1.5 The Nut, Turned 180 ° , for Thin Walls
4. Mount the LCP with the gasket on the base plate.
Insert the rubber ap in the opening at the top of
the cradle, see Illustration 1.6 and Illustration 1.7.
Illustration 1.8 shows the base plate with the LCP.
1 Rubber ap
2 Opening at the top of the cradle
Illustration 1.6 Insert the Rubber Flap into the Opening
Illustration 1.7 Rubber Flap in the Opening
Illustration 1.8 Base Plate with LCP
Installation Instructions
Remote Mounting of LCP
VLT
®
HVAC Drive FC 102
4 Danfoss A/S © 11/2017 All rights reserved. MI05A202
