MCD3000 Series
28 MG.15.B2.02 – VLT is a registered Danfoss trademark
Component Replacement Procedures

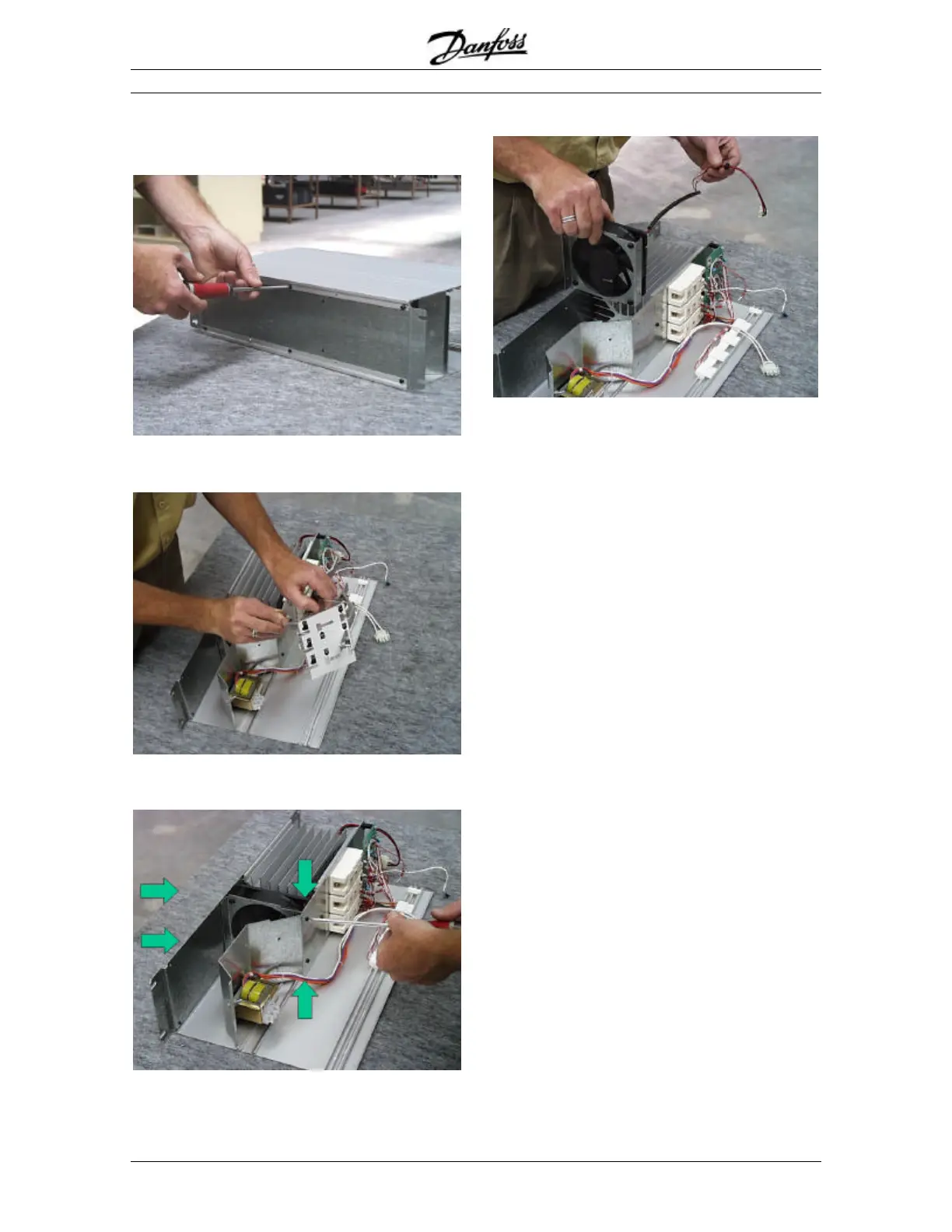

Step 8. Remove the left hand side panel by removing
the screws (4) securing the side panel to the base
plate.
Step 9. Remove the bus bars, bus bar support
bracket and insulation plate.
Step 10. Remove the screws (4) securing the fan
bracket.
Step 11. Remove the fan bracket.
Step 12. Remove the fan from the fan bracket
Step 13. Cut the plug from the end of the fan wiring
loom, leaving at least 75mm wire between the cut and
the plug. Retain the plug, protective sleeve and
grommet so that these can be fitted to the new fan
wiring during re-assembly. Crimp terminals are
supplied with the new fan for this purpose.
Step 14. Fit the new fan in reverse order.
