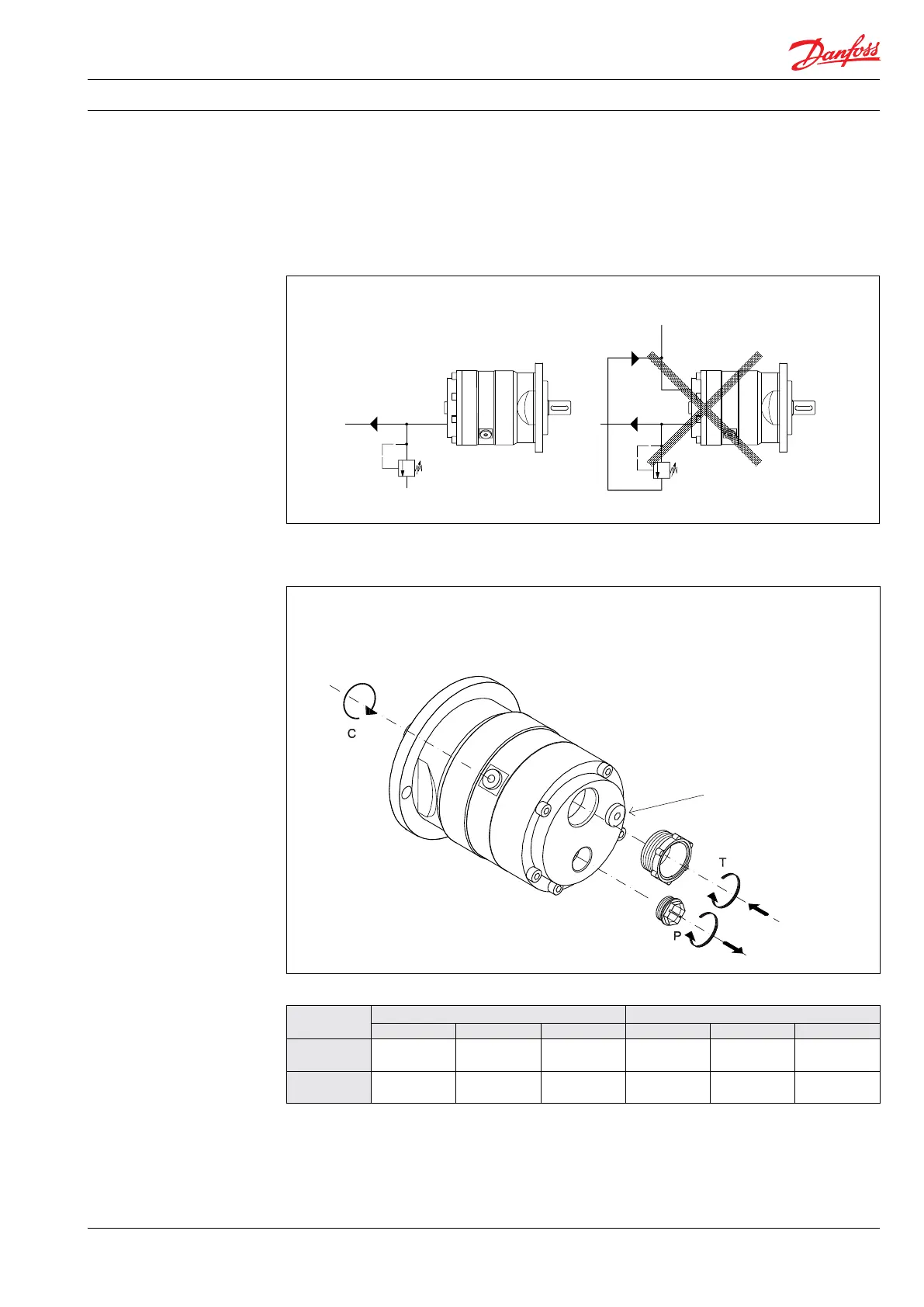

3.4 Protection from too high pressures
The pump should be protected against too high
pressure by means of a pressure relief valve or a
bypass/unloading valve placed on the pressure
side.
The valve should be placed as close to the pump
as possible.
The opening characteristics of the valve must not
result in peak pressures higher than 200 bar
[2900 psig].
The valve outlet must not be connected directly
to the pump suction line. It shall be connected
directly to the tank.
PAH 20/25/32 PAH 50/63/70/80/100
P T C P T C
Thread size
G 3/4 x 20 G 1 1/4 x 20 G 1/4 x 14 G 1 1/4 x 20 G 1 1/2 x 20 G 1/4 x 14
Max tighten
torque
150 Nm
1)
[110 lb]
90 Nm
1)
[65 lb]
10 Nm
[7. 5 lb]
180 Nm
1)
[135 lb]
150 Nm
1)
[110 lb]
20 Nm
[15 lb]
3.5 Connections
P: Pressure
T: Tank
C: Bleeding
Parallel key
PAH 20/25/32: 8 x 7 x 32 DIN 6885
PAH 50/63/70/80/100: 10 x 8 x 45.2 DIN 6885
1)
Recommended torque values refer to steel washers containing a rubber sealing element.
Only HIP version
