Danfoss PAH 20

Parts list PAH 20/25/32/50/63/70/80/100 pumps
55
180R9380 | AQ213286502970en-000701 | IOM PAH 20-100 pumps | 11.2021

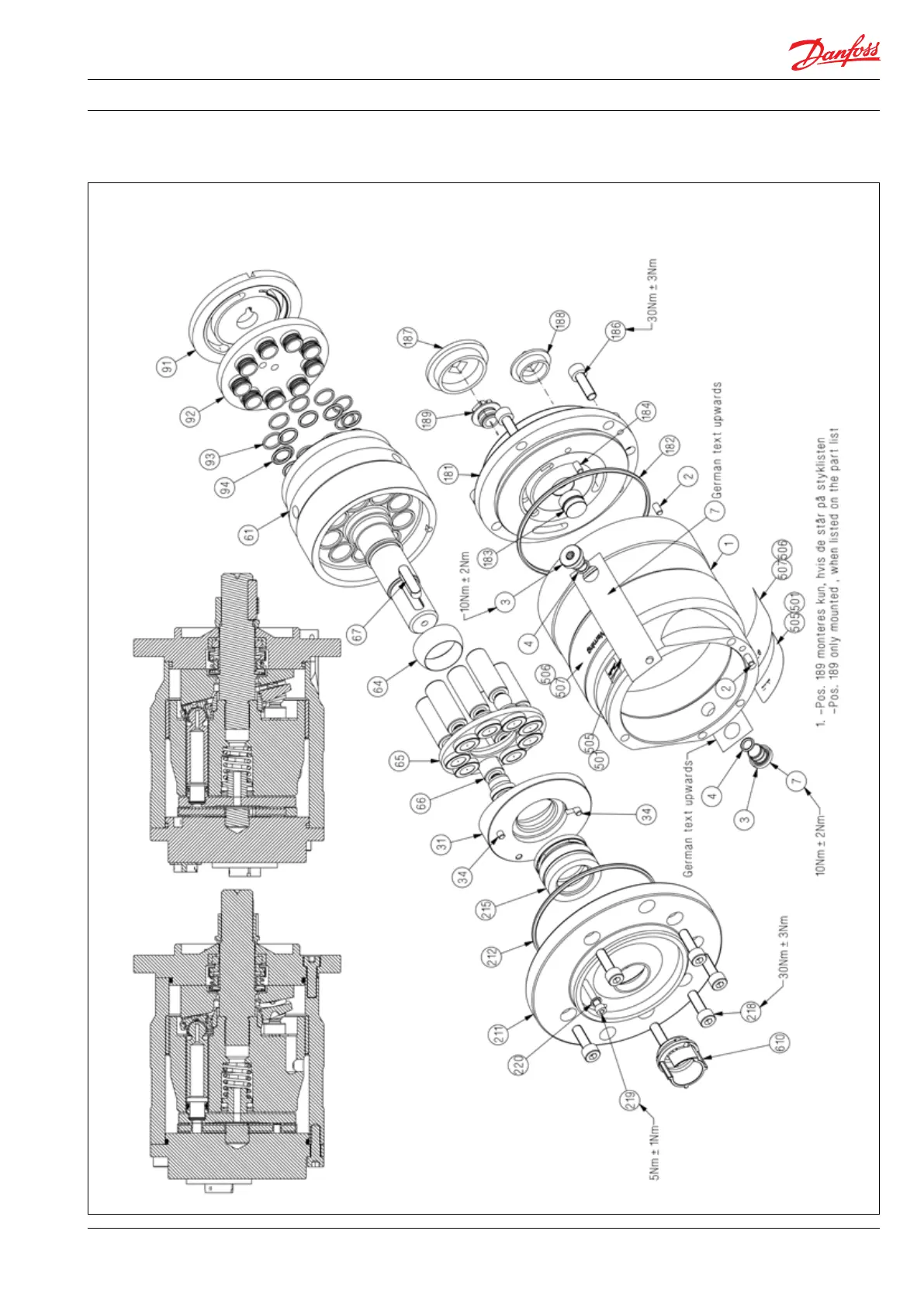

3. Exploded view for
PAH 20/25/32
180B4115 - Screw & seal kit 180B4116 - Valve plate kit 180B4119 - Piston kit 180B4117 - Piston kit 180B4120 - Cylinder Barrel 180B4118 - Cylinder Barrel 180B4128 - Cylinder Barrel CCW 180B4494 - Swash plate kit PAH 20 180B4007 - Swash plate kit PAH 25 180B4008 - Swash plate kit PAH 32 180Z0236 - Tool set
Pos. Qty. Designation Material
- 1 Shaft bush, torpedo -
X
- 1 Press tool for 28 mm
shaft
-
X
- 1 Mounting screw -
X
1 1 Housing PAH AISI 304
2 2 Pin AISI 304
X
3 2 Plug AISI 304
4 2 O-ring NBR
X
31 1 Swash plate Stainless steel
(1.4057)
X X X
34 2 Pin AISI 304
X
61 1 Cylinder barrel AISI 304
X X X
64 1 Retainer ball Stainless steel
(1.4057)
X X
65 1 Retainer plate Stainless steel
(1.4057)
X X
66 9 Piston Stainless steel
(1.4057)
X X
67 1 Key AISI 304
X
91 1 Port plate AISI 304/PEEK
X
92 1 Valve plate Stainless steel
(1.4057)
X
93 9 Back-up ring PTFE
X X
94 9 O-ring NBR
X X
181 1 Port ange AISI 304
182 1 O-ring NBR
X
183 1 Guide pin AISI 304
X
184 1 Pin AISI 304
X
186 6 Screw AISI 304
X
187 1 Threaded plug Polymer
188 1 Threaded plug Polymer
211 1 Mounting ange AISI 304
212 1 O-ring NBR
X
215 1 Shaft seal AISI 304/NBR
X
218 6 Screw AISI 304
X
219 1 Screw AISI 304
X
220 1 Usit ring AISI 304/NBR
X
- 1 Service instruction
(180R9168)
X X X X X X X X X X X
