Service guide | Disassembling and assembling PAH 50-100
10
180R9098 | 521B1072 | DKCFN.PI.011.NC5.02 | 06.2017

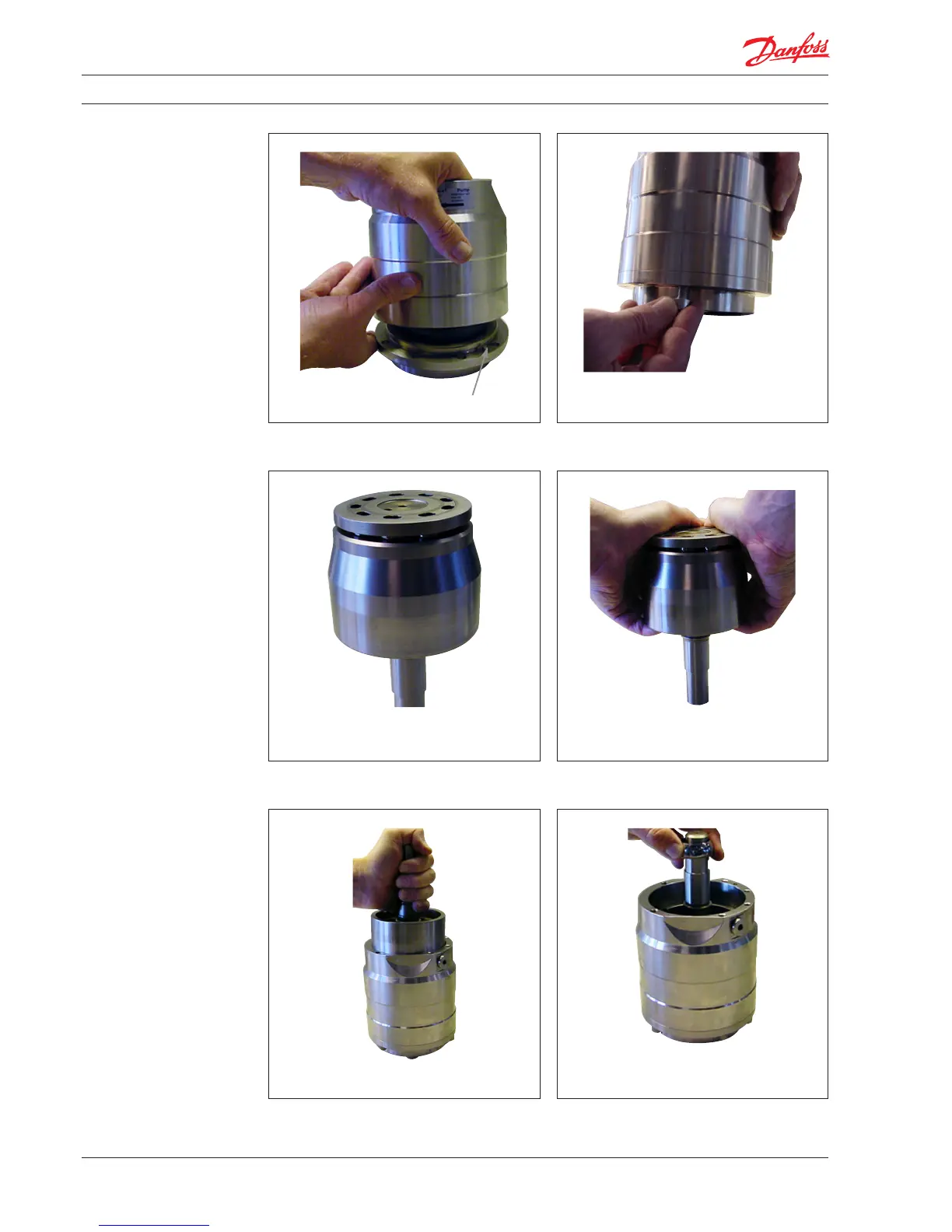

5. Mount the housing using the pin as guide.
6. Place housing and port flange near table
edge and mount screws from below.
8. Press the thrust plate into the cylinder
barrel using a table or the like as support.
10. Slide the retaining ball (smallest diameter
pointing upwards) down the shaft.
7. Mount the thrust plate with sealings on
the cylinder barrel.
9. Mount the cylinder barrel in the housing.
