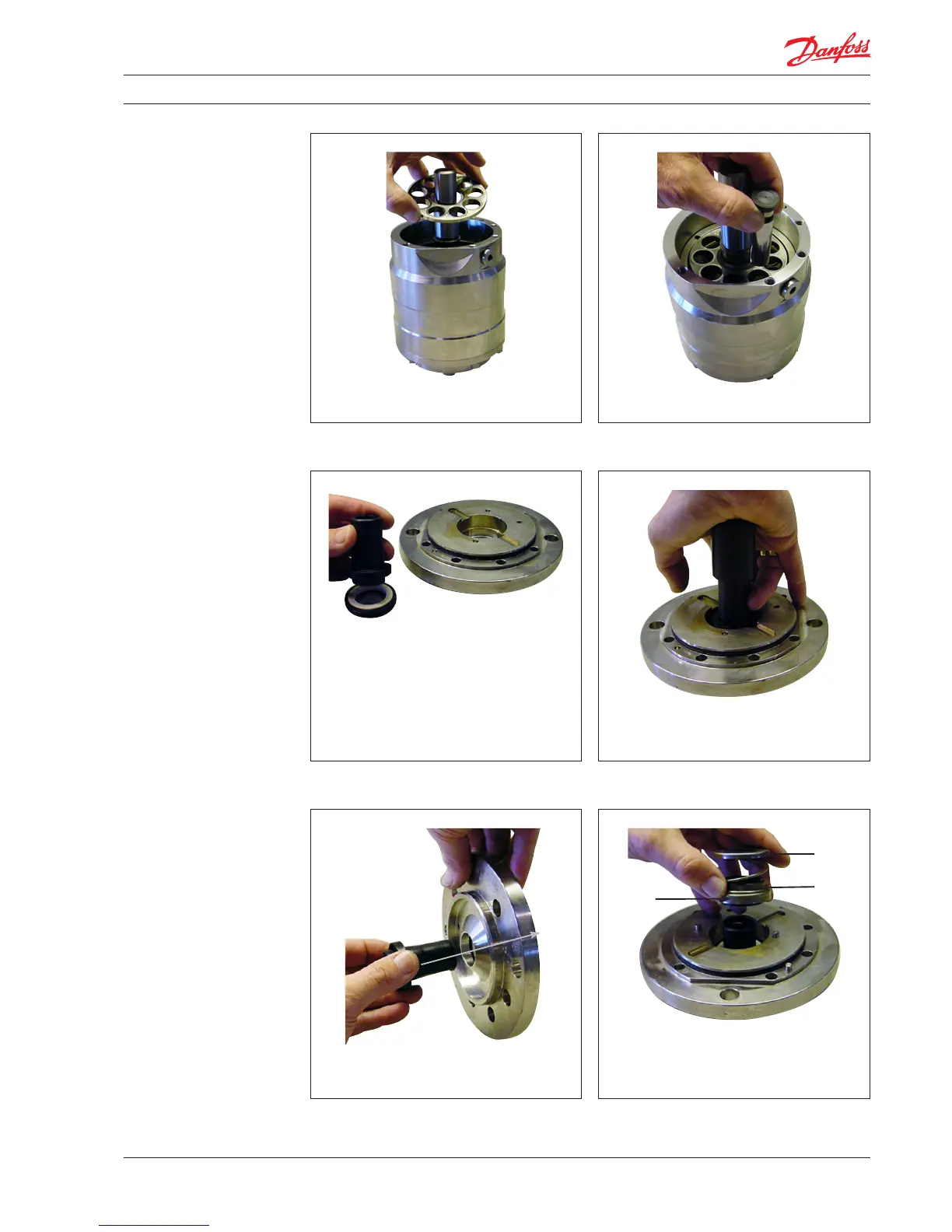

Service guide | Disassembling and assembling PAH 50-100
11
180R9098 | 521B1072 | DKCFN.PI.011.NC5.02 | 06.2017
12. Mount the pistons.
11. Mount the retaining plate (smallest centre
diameter pointing upwards).
14. Mount the ceramic ring by pressing the
tool as far down in the front flange as
possible.
16. Mount the shaft seal (carbon surface
pointing downwards), the spring, and the
washer (edge pointing downwards) by
sliding them over the tool.
13. Mount the ceramic ring on the tool.
15. Push the tool through the front flange.
Shaft seal
Washer
Spring
