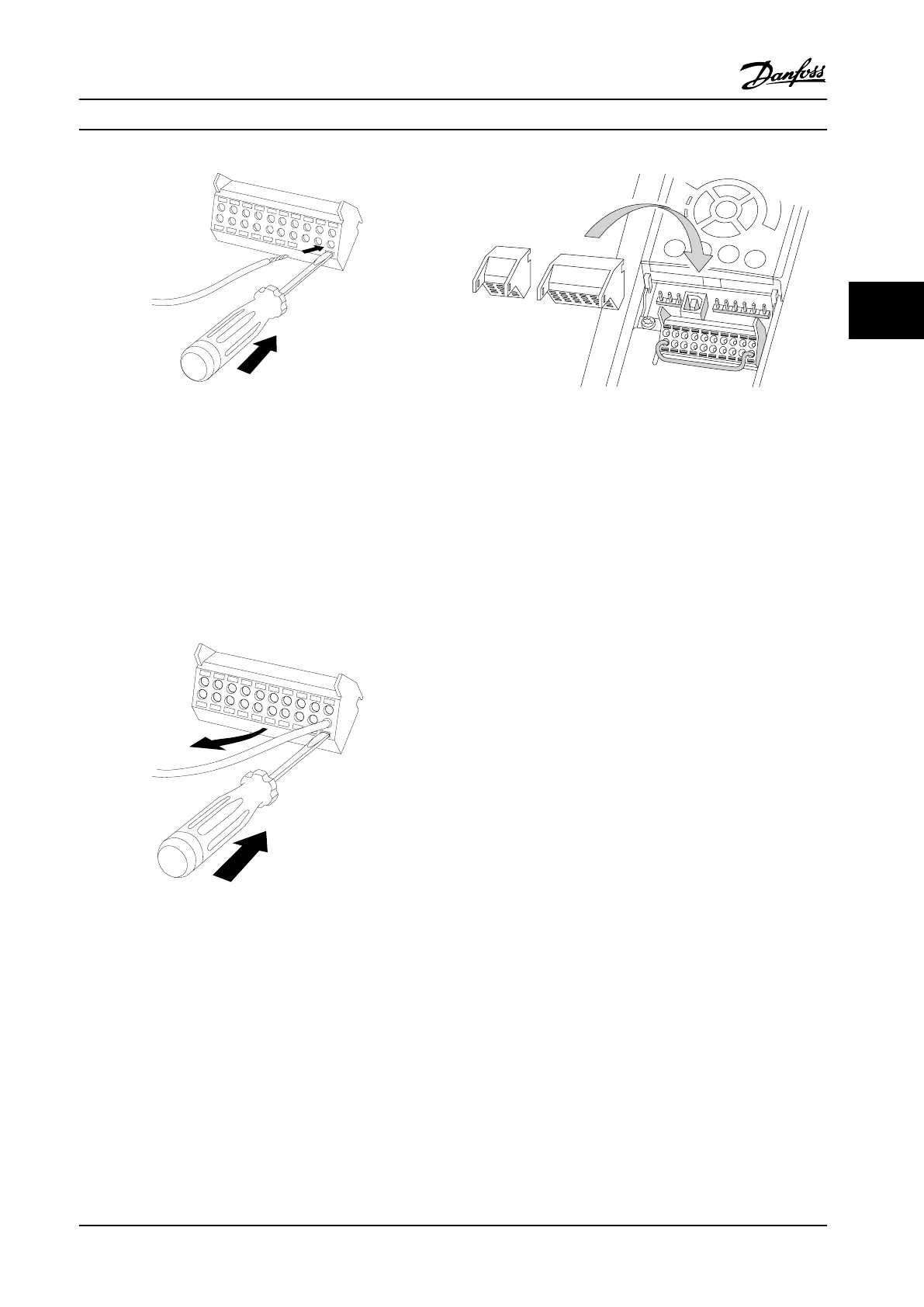

Figure 4.18 Inserting Cable
4. Remove the screwdriver. The cable is now
mounted in the terminal.
1) Maximum 0.4 x 2.5 mm
To remove the cable from the terminal:
1.
Insert a screwdriver
1)
in the square hole.
2. Pull out the cable.
1) Max. 0.4 x 2.5 mm
130BT311.10
Figure 4.19 Removing Cable
130BT306.10
Figure 4.20 Unplugging Control Terminals
Electrical Installation Instruction Manual
