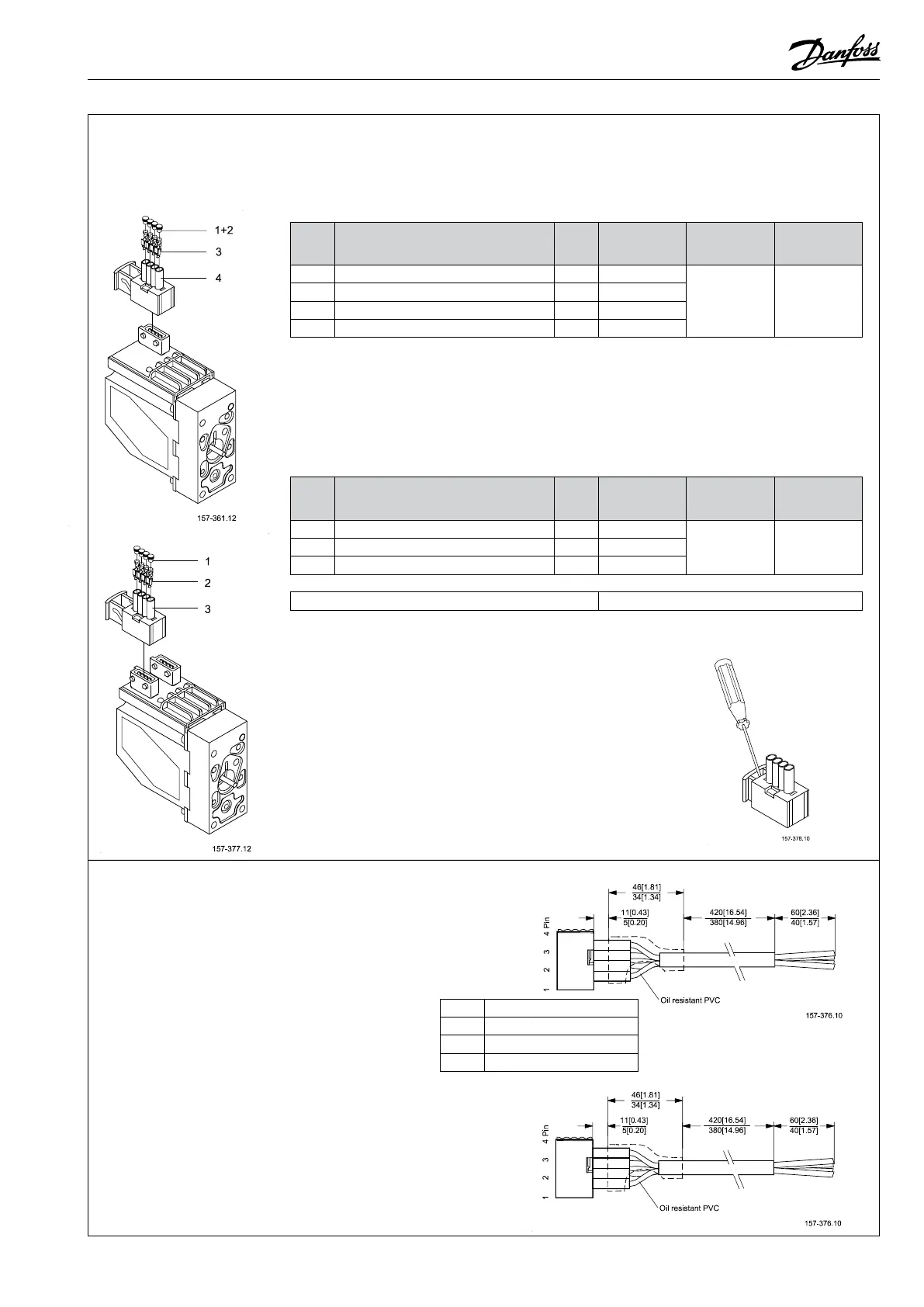

Danfoss PVE 3 Series User Manual

© Danfoss A/S, 2014-03 520L0286 • Rev CB • Mar 2014 5
DI function (black)
Pos. Description Qty. AMP Code No. Code No.
Code No.
with
4 m cable
1 Wire sealing (blue) 4 828904-1
157B4993
min.100 pcs.
157B4995
min. 50 pcs.
2 JPT contact (loose piece) 4 929930-1
3 JPT housing keying A (black) 1 1-967059-1
AMP crimp tool incl. crimp insert for JPT-contact 157B4989
AMP-stik til PVE serie 3
AMP connector for PVE series 3
AMP-Stecker für PVE Serie 3
Kit AMP pour PVE serie 3
Åbning af AMP-stik
Opening of AMP-connector
Öffnen des AMP-Steckers
Ouverture des kit AMP
Kabel med stik
Cable with connector
Kabel mit Stecker
Câble avec connecteur
PVE-funktion (gråt stik)
PVE-function (grey connector)
PVE-Funktion (Grauer Stecker)
PVE-Fonction (Support gris)
Code: 157B4994
(min. 50 pcs.)
DI-funktion (sort stik)
DI-function (black connector)
DI-Funktion (Schwarzer Stecker)
DI-fonction (Support noir)
Code: 157B4995
(min. 50 pcs.)
PVE function (grey)
Pos. Description Qty. AMP Code No. Code No.
Code No.
with
4 m cable
1 Wire sealing (blue) 4* 828904-1
157B4992
min.100 pcs.
157B4994
min. 50 pcs.
2 Blind plug (transparent) 1 828922-1
3 JPT contact (loose piece) 4* 929930-1
4 JPT housing keying B (gray) 1 2-967059-1
JPT = AMP Junior Power Timer
Pin 1 Hvid, White, Weiß, Blance
Pin 2 Blå, Blue, Blau, Bleu
Pin 3 Gul, Yellow, Gelb, Jaune
Pin 4 Rød, Red, Rot, Rouge
