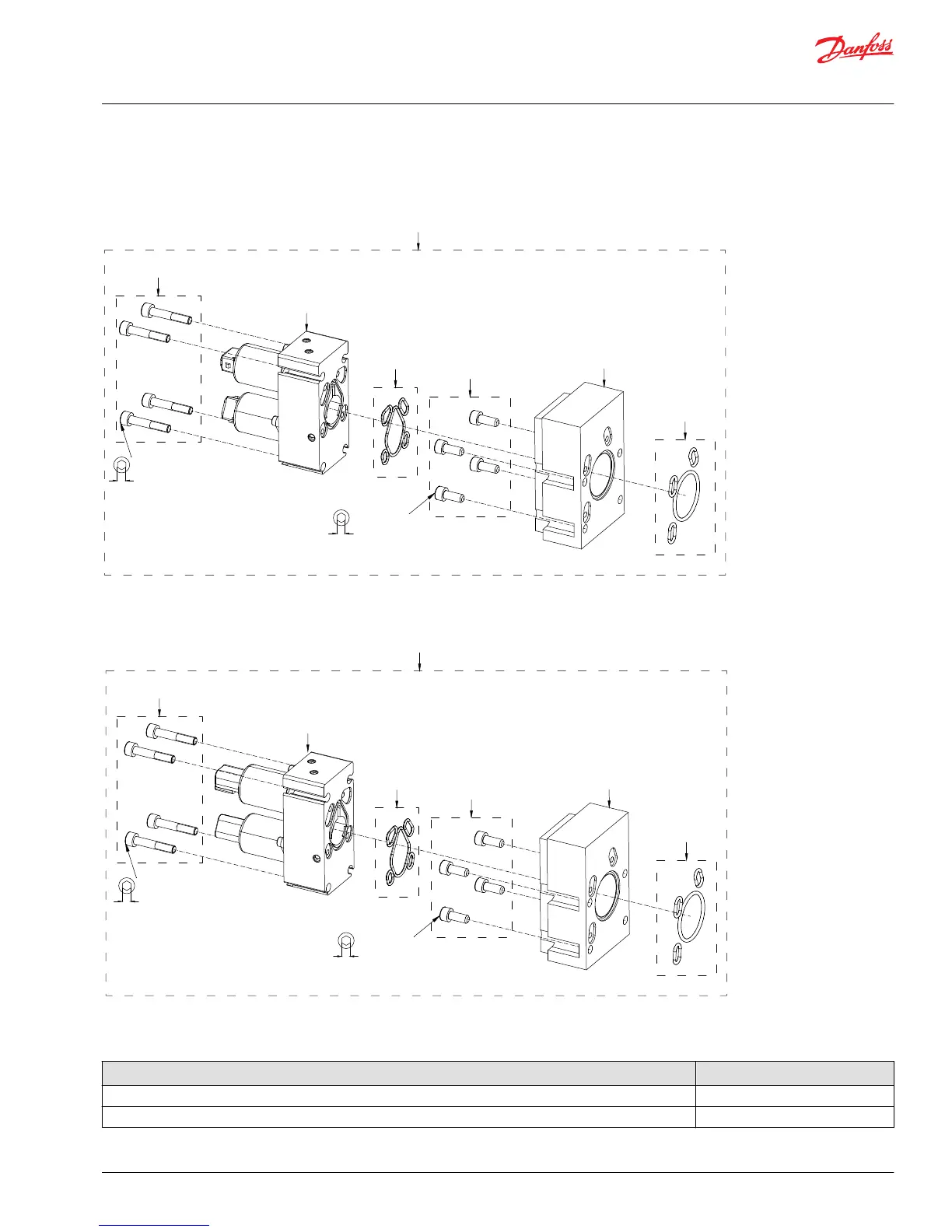

PVG 128/256 PVHC, high current actuation
PVHC with AMP connector
2
3
4
5
6
7
1
8±0.5 Nm
[70±4.5 lbf·in]
5[0.20]
8±0.5 Nm
[70±4.5 lbf·in]
5[0.20]
E103 671
PVHC with DEUTSCH connector
2
3
4
5
6
7
1
8±0.5 Nm
[70±4.5 lbf·in]
5[0.20]
8±0.5 Nm
[70±4.5 lbf·in]
5[0.20]
E103 677
PVHC kits
Description
Code number
12V AMP
11187757
12V DEUTSCH
11187772
S
e
r
v
i
c
e
a
n
d
P
a
r
t
s
M
a
n
u
a
l
P
V
G
1
6
/
3
2
/
1
2
8
/
2
5
6
Service Parts
©
Danfoss | October 2018
AX284661889190en-000101 | 131
130
132
Table of Contents
Default Chapter
3
Table of Contents
3
Safety in Systems
5
PVG 16/32 Sectional Drawings
7
PVG 128/256 Sectional Drawing
10
Installation
11
PVG 16 Installation
11
Standard Assembly
11
Plug Orientation
12
Maximum Flow Setting
13
Pressure Setting and Adjustment
14
Installation of Lever
16
Bleeding
17
PVE Series 6
18
Relevant Technical Data
19
Pvhc
21
LED Characteristics
22
Standard Main Spool Assembly
23
PVG 32 Installation
24
Standard Assembly
24
Plug Orientation
25
Maximum Flow Setting
26
Pressure Setting and Adjustment
27
Installation of Lever
29
Bleeding
29
PVEP Series 4
30
PVED-CC Series 5
32
PVE Series 7
34
Pvhc
38
Standard Main Spool Assembly
40
PVG 128/256 Installation
41
Standard Assembly
41
Plug Orientation
42
Pump Side Module
43
Pressure Setting
44
Installation of Lever
45
PVE Series 7
46
Pvhc
49
Standard Main Spool Assembly
51
Service Parts
52
PVG Acronyms Found in Service Parts
52
PVG 16 Service Parts
53
Pump Side Module, PVP
53
Pump Side Module PVPV
56
Electrical LS Pressure Unloading Valve, PVPX
57
PVB with LS Port
59
PVB with PVLP/PVLA, Basic Module
61
PVLP Shock and PVLA, Suction Valves
63
PVBS, Main Spool
64
PVM Mechanical Activation
65
PVMD Cover
66
PVH Hydraulic Actuation
67
PVHC High Current Actuation
68
PVE Series 6 PVEO On/Off Actuator
69
PVE Series 6 PVEA Proportional Actuator
70
PVS/PVSI End Plates
71
PVAS Stay Bolts
73
Seal Kits
74
PVG 32 Service Parts
75
Pump Side Module PVP
75
Pump Side Module PVPV
78
Pump Side Module PVPM/PVPVM
80
Electrical LS Pressure Unloading Valve, PVPX
81
External Pilot Pressure Adapter, PVPC
83
PVB Basic Module
84
Basic Module, PVBZ
87
PVBZ with PVBD Diverter
89
PVLP Shock and PVLA, Suction Valves
91
PVBS Main Spool
92
PVM Medchanical Activation
93
PVMD, PVMR and PVMF Covers
94
PVH Hydraulic Actuation
96
Electrical Actuation PVHC
97
PVDI Directional Indication
98
PVS/PVSI End Plates
99
PVSI, PVSD, PVST End Plates
101
PVAS Stay Bolts
104
Seal Kits
105
PVE Series 4 PVEO
106
PVE Series 4 PVEA
107
PVE Series 4 PVEM
108
PVE Series 4 PVEP
109
PVE Series 4 PVEU
110
PVE Series 4 PVEH
111
PVE Series 4 PVES
112
PVED-CC Series 5
113
PVE Series 7 PVEO
114
PVE Series 7 PVEO-HP
115
PVE Series 7 PVEM
116
PVE Series 7 PVEA
117
PVE Series 7 PVEH
118
PVE Series 7 PVES
119
PVG 128/256 Service Parts
120
Pump Side Module, PVPV
120
PVB 128, Basic Module
122
PVB 256, Basic Module
124
PVLP Shock and PVLA, Suction Valves
126
PVBS Main Spool
127
PVM Mechanical Activation
128
PVMD Cover
129
PVH Hydraulic Actuation
130
PVHC High Current Actuation
131
PVEO On/Off Actuator
133
PVEH Proportional Actuator
135
PVS End Plates
137
PVAS Stay Bolts
139
Seal Kits
140
