InstallationGuideTermixVVX-I
5.0Design
5.1Design
Yoursubstationmightlookdifferentthanthesubstationshown.

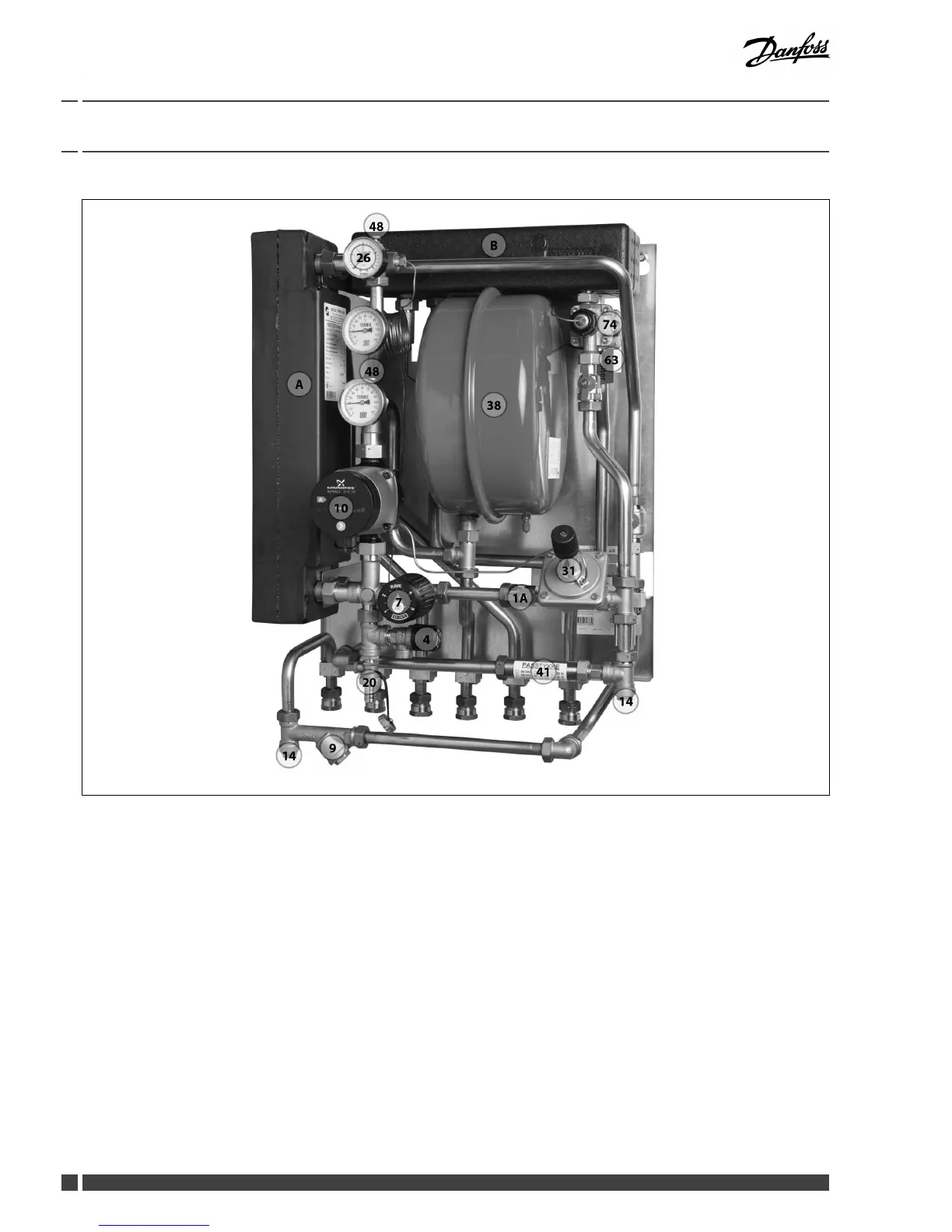

Designdescription
A
Heatexchanger,HE
10
Circulationpump
38
Expansiontank
B
Heatexchanger,DHW
14
Sensorpocket,energymeter
41
Fittingpiece,energymeter
1A
Summervalve
20
Filling/drainvalve
48
Airvent,manual
4
Safetyvalve
26
Pressuregauge,HE
63
Sieve
7
Thermostaticcontroller,HE
31
Differentialpressurecontroller
74
IHPTcontroller,DHW
9
Strainer
8
DEN-GT
VI.EH.G3.02/LUK40440
