Termix VVX-IV - 7 Series DS Fully insulated

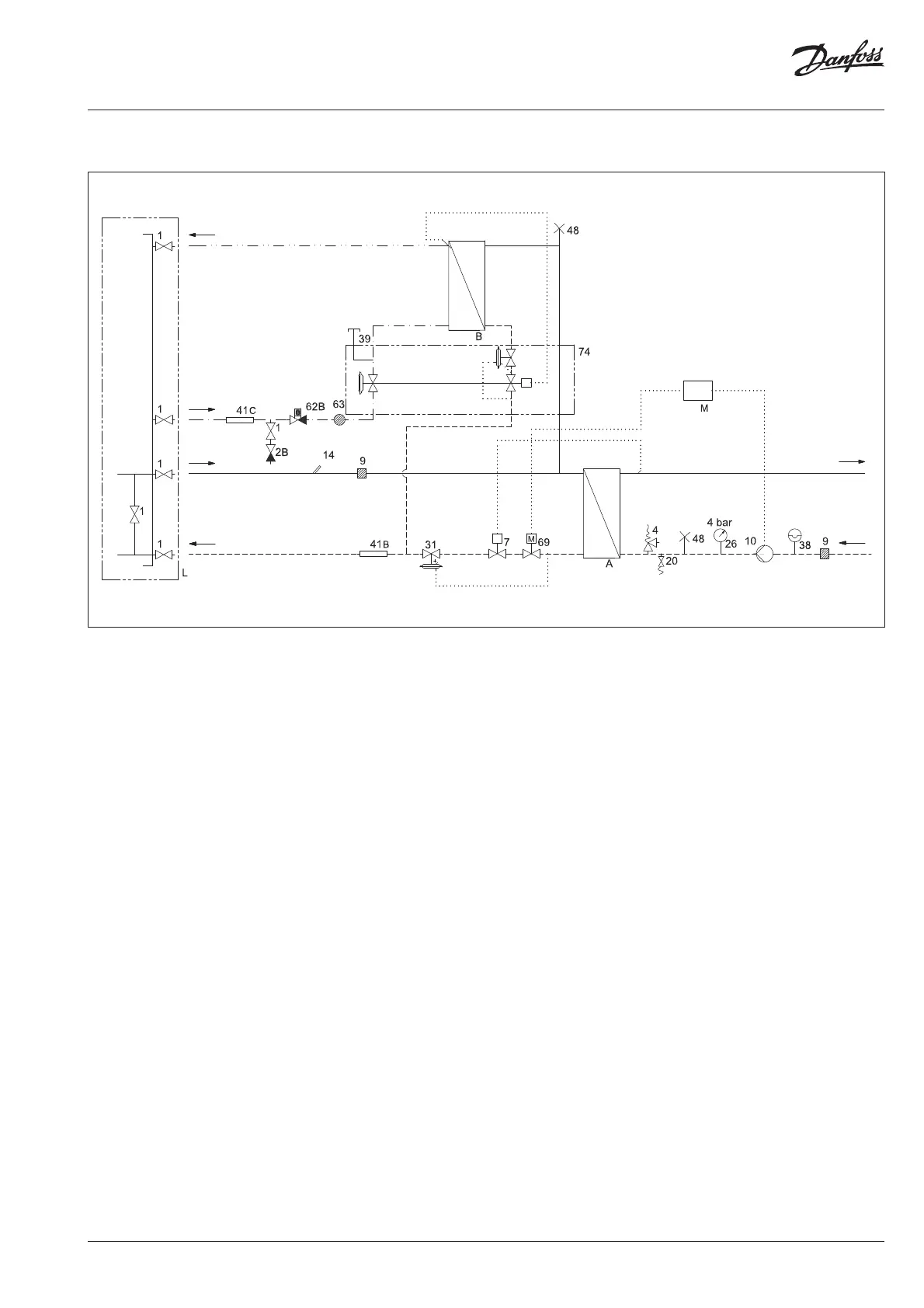

Schematic description - Termix VVX-IV RAD
A Heat exchanger, HTG 9 Strainer 41B Fitting piece, energy meter
B Heat exchanger, DHW 10 Circulator pump 41C Fitting piece, Shut-off-valve
L Border of delivery 14 Sensor pocket, energy meter 48 Air vent, manual
M Electrical wiring box 20 Filling/drain valve 62B Pressure absorber with non-return valve
1 Isolation valve 26 Pressure gauge 63 Sieve
2B Double check valve 31 Differential pressure controller 69 On/Off valve
4 Safety valve 38 Expansion tank 74 IHPT controller, DHW
7 Thermostatic valve, HTG 39 Connection closed
Your HIU may look different from the HIU shown
Heating
Supply
Heating
Return
Domestic
Hot Water
Domestic
Cold Water
Heat Network
Supply
Heat Network
Return
Mounting rail
